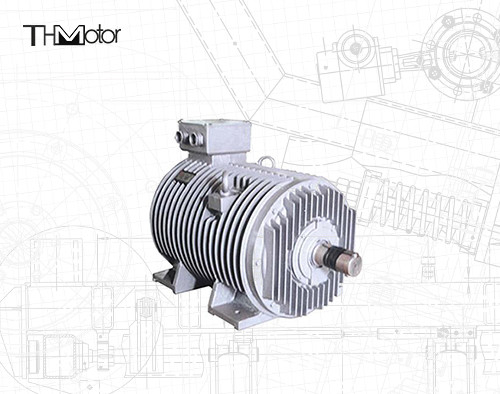

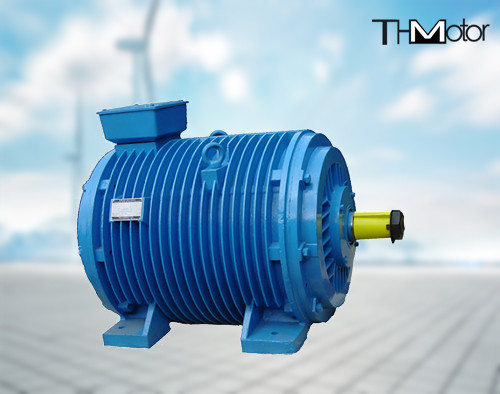

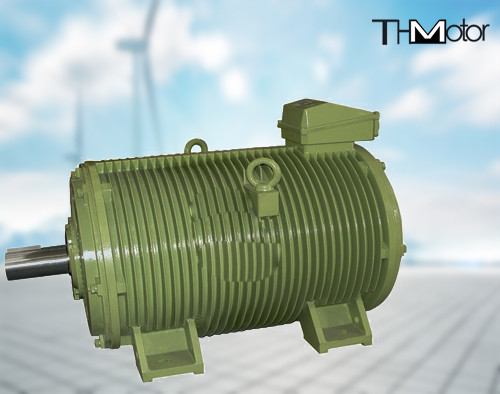

YGP Variable Frequency Asynchronous Motor For Roller Table Class 155

YGP Variable Frequency Asynchronous Motor For Roller Table Class 155

  • YGP Variable Frequency Asynchronous Motor For Roller Table Class 155
  • YGP Variable Frequency Asynchronous Motor For Roller Table Class 155
YGP Variable Frequency Asynchronous Motor For Roller Table Class 155
Product Details:
Place of Origin: China
Brand Name: THMotor
Certification: CE
Model Number: T 7000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
Contact Now
Detailed Product Description
Product Name: YGP Asynchronous Motor With Variable Frequency Drive For ROLLER TABLE Power Range: 1000-12000kw
Voltage: 3kv-11kv Speed Range: 1000rpm-1500rpm
Poles: 4,6 Frequency: 50hz,60hz
Cooling Method: IC37,IC81W IP Rate: IP44,IP54,IP55
High Light:

YGP Asynchronous Motor

,

YGP variable frequency motor

,

Roller Table variable frequency motor

YGP Asynchronous Motor With Variable Frequency Drive For ROLLER TABLE



Product overview



YGP series three-phase asynchronous motor with variable frequency speed regulation for roller table (frame size 112-450)
Power range: 1.1kW-300kW
Rated voltage: 380V, 690V
Features: Class 155 or Class 180, IMB3 or IMB5, IC410, IP55 or IP56
Working system: S5-60% 300 times/hour
Technical features: The optimal value of rated frequency of YGP series motors can be determined according to the actual required speed range, with wide speed regulation range, small vibration and low noise. Suitable for V/F control and proper amount control.
Application field: It is suitable for continuous or intermittent work under severe conditions such as frequent starting, forward and reverse rotation, and reverse braking. It has a large speed regulation range, overload capacity and mechanical strength. It is a roller conveyor frequency conversion motor in the metallurgical industry. Can be used on other similar mechanical equipment.



Product specifications



PRODUCT NAME: YGP Asynchronous Motor With Variable Frequency Drive For ROLLER TABLE POWER RANGE: 1000-12000kw
VOLTAGE: 3kv-11kv SPEED RANGE: 1000rpm-1500rpm
POLES: 4,6 FREQUENCY: 50hz,60hz
COOLING METHOD: IC37,IC81W IP RATE: IP44,IP54,IP55



Each series of motors

YGP Variable Frequency Asynchronous Motor For Roller Table Class 155 0



Our aftersales service

YGP Variable Frequency Asynchronous Motor For Roller Table Class 155 1



Product packaging

YGP Variable Frequency Asynchronous Motor For Roller Table Class 155 2



Certifications

YGP Variable Frequency Asynchronous Motor For Roller Table Class 155 3
