Our motor, save your energy, drive your success!
 |
| Place of Origin: | China |
| Brand Name: | THMotor |
| Certification: | CE |
| Model Number: | T 7000 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD 20000-100000 |
| Packaging Details: | Seaworthy packing |
| Delivery Time: | 70DAYS |
| Supply Ability: | 100SET/YEAR |
| Product Name: | YZP Variable Frequency Drive For Cranes And Metallurgical Industry | Power Range: | 1000-12000kw |
|---|---|---|---|
| Voltage: | 3kv-11kv | Speed Range: | 1000rpm-1500rpm |
| Poles: | 4,6 | Frequency: | 50hz,60hz |
| Cooling Method: | IC37,IC81W | IP Rate: | IP44,IP54,IP55 |
| High Light: | YZP Special Application Motors,YZP vfd motor,Metallurgical Industry vfd motor |
||

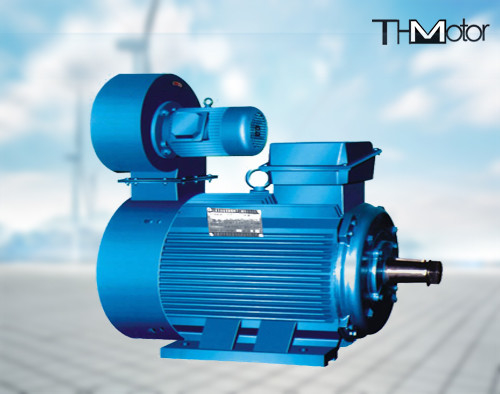

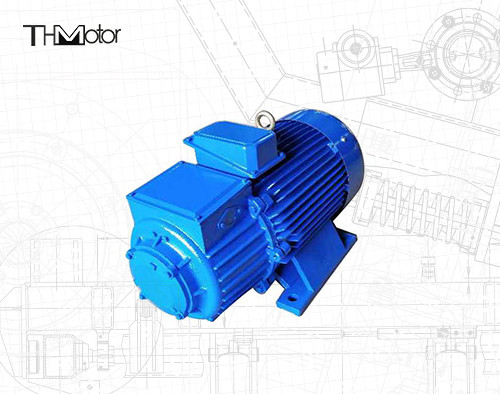

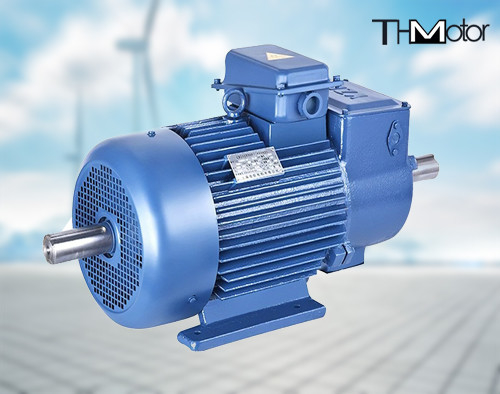

YZP Variable Frequency Drive For Cranes And Metallurgical Industry
Product overview
YZP series of three-phase asynchronous motors with variable frequency speed regulation for cranes and metallurgical industries (frame size 112-400)
Power range: 1.1kW-300kW
Rated voltage: 380V, 690V
Features: Class 155 or Class 180, IMB3 or IMV1, IC416, IP55
Working system: S3-40%
Technical features: Compared with the winding crane, it has a wider range of speed regulation, less vibration and low noise. Can be used for vector control. YZP series motors do not have collector rings and brush holders, which reduces motor maintenance costs.
Application field: used to drive various types of hoisting machinery and other similar equipment, with a wide range of speed regulation, large overload capacity and high mechanical strength. Especially those equipment with short or intermittent duty cycle, frequent starting, braking, sometimes overloading and significant vibration and shock.
Product specifications
| PRODUCT NAME: | YZP Variable Frequency Drive For Cranes And Metallurgical Industry | POWER RANGE: | 1000-12000kw |
|---|---|---|---|
| VOLTAGE: | 3kv-11kv | SPEED RANGE: | 1000rpm-1500rpm |
| POLES: | 4,6 | FREQUENCY: | 50hz,60hz |
| COOLING METHOD: | IC37,IC81W | IP RATE: | IP44,IP54,IP55 |
Each series of motors
Our aftersales service
Product packaging
Certifications
Contact Person: Chongqing sales team
Tel: +8613251285880
