TEFC Stainless Steel Special Application Motors Anti Corrosion F1 Assembly

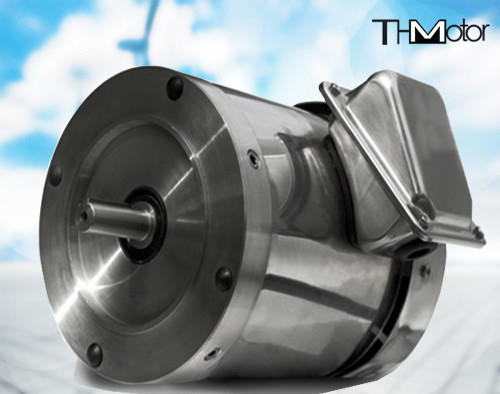

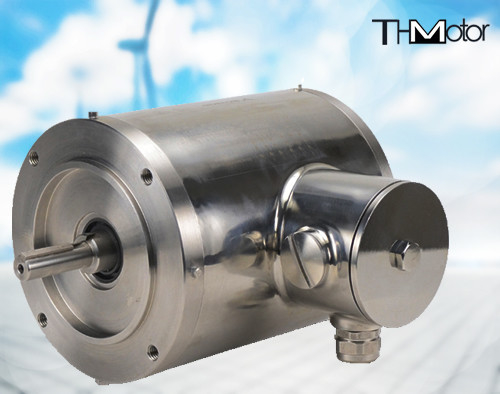

NS/SS Premium Efficient Stainless Steel Motors For Food-Grade

Product overview

The SS/NS Series Premium Efficient TC Frame Stainless Steel motors are designed to meet the severe-duty sanitation requirements for food-grade and high pressure washdown motor applications. Available in TC-Frame sizes, our SS Series motor features 1.15 service factor, IP55 degree of protection, interior anti-corrosion resistant coated, and are 100% TEFC 300 series stainless steel constructed for pharmaceutical, food & beverage processing and packaging industries. Features:

1. Inverter Duty Rated: 3:1CT & 5:1VT

2. Service Factor: 1.15

3. Design: "B" or “C”

4. Protection Degree: IP55

5. Enclosure: TEFC

6. VPI process applied for best electrical performance

7. C-Face with or without feet

8. Class “F” insulation with Class “B” rise

9. PTC140 thermistors standard for 180 frame and up

10. Continuous duty - Washdown duty

11. Sealed bearings

12. Squirrel cage rotor

13. 300 series stainless steel motor construction

14. 12-Gauge puddle welded base on footed motors

15. Anti-corrosion coating applied

16. DE and NDE drain holes every 90°

17. F1 assembly

18. CSA-US certified and CE marked
