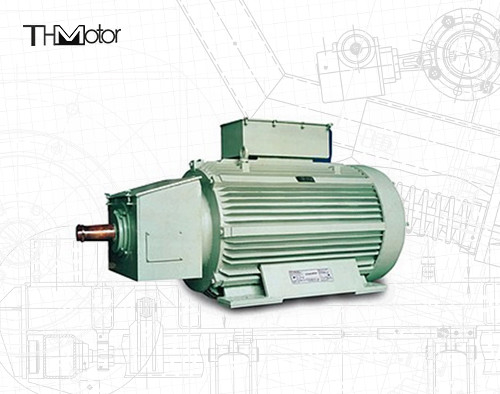

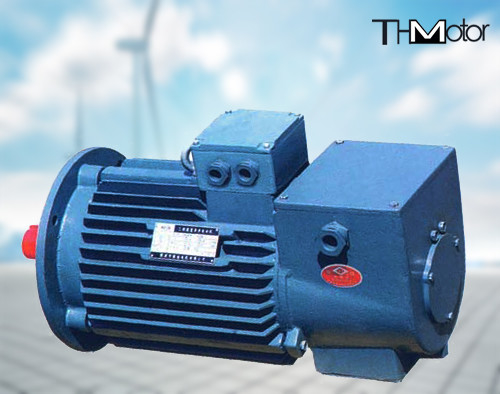

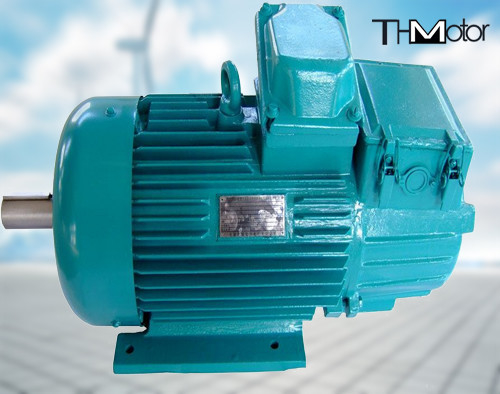

YZ Metallurgical Application Crane Duty Slip Ring Special Application Motors H IP54

YZ Metallurgical Application Crane Duty Slip Ring Special Application Motors H IP54

  • YZ Metallurgical Application Crane Duty Slip Ring Special Application Motors H IP54
  • YZ Metallurgical Application Crane Duty Slip Ring Special Application Motors H IP54
YZ Metallurgical Application Crane Duty Slip Ring Special Application Motors H IP54
Product Details:
Place of Origin: China
Brand Name: THMotor
Certification: UL
Model Number: NEP 256TC
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 300-10000
Packaging Details: Seaworthy packing
Delivery Time: 30DAYS
Supply Ability: 5000SET/YEAR
Contact Now
Detailed Product Description
Power Range: 1.8-200kw Frequency: 60hz
Standard: IEC Mounting: B3,B5,B35
Frame: 112-250 Voltage: 380V
Poles: 2,4,6 IP Rate: IP44.IP54
Service Factor: 1.15
High Light:

YZ crane duty slip ring motor

,

crane duty slip ring motor H IP54

,

Metallurgical Application motor S3

YZ Induction Motors for Cranes and Metallurgical Applications



Product overview


YZ Series Induction Motors Used in the metallurgy and mine industry for driving type crane and similar equipment, especially suit for the instruments which need short-term and intermittent operation, frequent start and brake, overload, and have significant vibration and impact.
* Frame sizes:
YZ112-250→Rated output: 1.5 to 30Kw
YZR112-400→Rated output:1.5-200Kw
* Duty Cycle: S3
* FC: 40%
* Voltage: 380V
* General environment(40℃), Insulation class: F, IP44
* Metallurgical environment (60℃) , Insulation class: H, IP54



Product specifications



Frame Size 112 132 160 180 200 225 250
Power range kW 1.8 2.5~4 6.3~13 13 19 26 35
Poles 6 6 6.8 8 8 8 8



Mounting Type Symbol Range (Frame Size) Note
YZ series YZR series
YZ Metallurgical Application Crane Duty Slip Ring Special Application Motors H IP54 0 IM1001 112~160 112~160 Single Cylindrical Shaft End
IM1003 180~250 180~400 Single Conical Shaft End
YZ Metallurgical Application Crane Duty Slip Ring Special Application Motors H IP54 1 IM1002 112~160 112~160 Double Cylindrical Shaft End
IM1004 180~250 180~400 Double Conical Shaft End
YZ Metallurgical Application Crane Duty Slip Ring Special Application Motors H IP54 2 IM3001 112~160 112~160 Single Cylindrical Shaft End
IM3003 180 180 Single Conical Shaft End
YZ Metallurgical Application Crane Duty Slip Ring Special Application Motors H IP54 3 IM3011 112~160 112~160 Single Cylindrical Shaft End
IM3013 180~250 180~315 Single Conical Shaft End



Each series of motors

YZ Metallurgical Application Crane Duty Slip Ring Special Application Motors H IP54 4


Our aftersales service

YZ Metallurgical Application Crane Duty Slip Ring Special Application Motors H IP54 5



Product packaging

YZ Metallurgical Application Crane Duty Slip Ring Special Application Motors H IP54 6



Certifications

YZ Metallurgical Application Crane Duty Slip Ring Special Application Motors H IP54 7
