Our motor, save your energy, drive your success!
 |
| Place of Origin: | China |
| Brand Name: | THmotor |
| Model Number: | YXKK450-2 1250KW |
| Power: | 1250kw-4000kw | Rotation Speed: | 3000 Rpm |
|---|---|---|---|
| Power Factor: | Cosφ – 0.89 | Rated Frequency: | 50Hz |
| Operating Mode: | Continuous (S1) | Heat Resistance Class: | 155 (F) |
| Degree Of Protection: | IP55 | Rated Current: | Up To 142A |
| Highlight: | IC611 Squirrel Cage Motor,3000Rpm Squirrel Cage Motor,50Hz Squirrel Cage Asynchronous Motor |
||
Squirrel Cage Motors are three-phase asynchronous motors, designed for continuous S1 duty operation. With degree of protection of IP55, a power factor of 0.89, and an ambient temperature range of 20°C to +40°C, these motors can handle up to 142A of rated current. They are robust and reliable motors that can be used in a wide range of applications.
These motors have a durable squirrel cage rotor design, which allows them to operate at high speeds without any additional cooling measures. In addition, they are built with high-quality components and materials, allowing them to perform with efficiency and consistency. They are also designed to be easy to install and maintain, providing a cost-effective solution for many industrial applications.
Squirrel Cage Motors are a reliable choice for a variety of industrial applications, providing a robust, efficient, and cost-effective solution. With their superior performance, these motors are sure to meet the requirements of any application.
| Technical Parameter | Description |
| Power | 1250KW-4000kw |
| Rotation speed | 3000 rpm |
| voltage | 6.0 kV (± 5% allowed) |
| rated current | up to 142A |
| Rated frequency | 50Hz |
| Efficiency | from 94.9% |
| degree of protection | IP55 |
| Power factor | cosφ – 0.89 |
| Operating mode | continuous (S1) |
| Heat resistance class | 155 (F) |
| Bearing type | Rolling bearing |
| Cooling method | IC 611 |
| Shaft height | 450 mm |
| Shaft diameter | 100 mm |

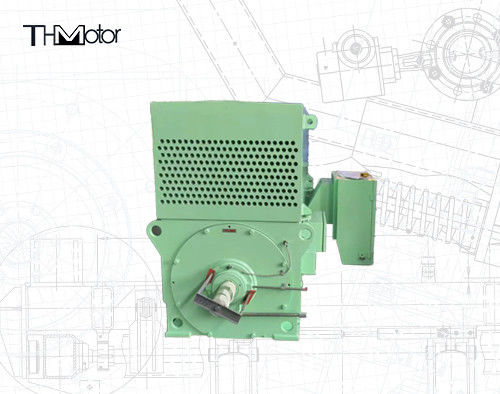

THmotor YXKK450-2 1250KW Asynchronous Motor, a three-phase motor with squirrel cage rotor, is made in China. It features high efficiency, low noise and low vibration. With a shaft height of 450 MM and rated frequency of 50Hz, it operates at 3000 Rpm with rolling bearing. The cooling method is IC611.
THmotor offers custom Squirrel Cage Motors with the following features:
THmotor squirrel cage motors are designed to provide reliable performance for your power needs.
Each series of motors:
We provide technical support and service for Squirrel Cage Motors. Our technical professionals are available to answer your questions and provide assistance with installation, maintenance, and troubleshooting.
We offer a range of services to meet your needs, including on-site service, remote support, and phone support. We can also provide customized solutions to meet your specific needs. Our team of experienced technicians is available to provide comprehensive technical support to ensure your satisfaction.
If you have any questions or need assistance, please contact us. We look forward to helping you get the most out of your Squirrel Cage Motors.
Squirrel Cage Motors are packaged and shipped according to the following procedures:
```
