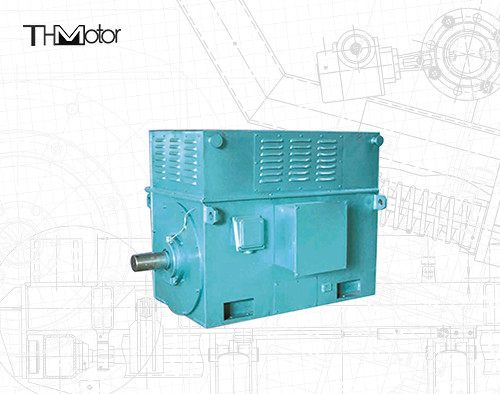

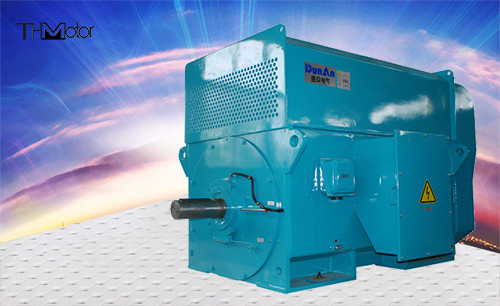

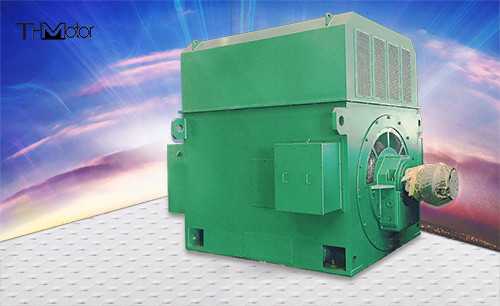

Y Series IC611 Squirrel Cage Asynchronous Motor 3 Phase IP55

Y Series IC611 Squirrel Cage Asynchronous Motor 3 Phase IP55

  • Y Series IC611 Squirrel Cage Asynchronous Motor 3 Phase IP55
  • Y Series IC611 Squirrel Cage Asynchronous Motor 3 Phase IP55
Y Series IC611 Squirrel Cage Asynchronous Motor 3 Phase IP55
Product Details:
Place of Origin: China
Brand Name: THMotor
Certification: CE
Model Number: YKK-500/1250KW
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
Contact Now
Detailed Product Description
Product Name: Y Series Three-Phase Asynchronous Motor High Voltage Ac Motor Power Range: 400-6000kw
Voltage: 6000v-11000v Speed Range: 100rpm-3600rpm
Frequency: 50hz,60hz Cooling Method: IC01、IC411、IC611
IP Rate: IP23, IP54,IP55 Poles: 2,4,6,8,12,16
High Light:

IC611 asynchronous motor 3 phase

,

asynchronous motor 3 phase IP55

,

IC611 squirrel cage asynchronous motor

Y Series Three-Phase Asynchronous Motor High Voltage Ac Motor



Product advantages
1. Use imported bearings
The high-speed large frame size motor uses authentic imported Swedish SKF or Japanese NSK bearings to ensure low noise, low vibration, high precision, high efficiency, long life and less maintenance;
2. The whole series uses silicon (silicon) steel sheet
All series of DC motors are made of WISCO's silicon steel sheet to ensure high permeability, low iron loss, high power factor, small motor temperature rise, and strong overload capacity;
The high-voltage motor case shell adopts an integral molding process to reduce welding seams, and the rigidity, strength and reliability of the body are higher than those of ordinary motors.
3. The whole series uses class F and class H insulation materials, and there is no short board for high voltage insulation
The whole series adopts F-class and H-class insulating materials (insulating paint, insulating paper, wrapping tape and insulating sleeve, etc.);
4. The whole series uses insulating paint
The whole series adopts F-class and H-class enameled wire, insulated wire covered wire, insulated flat copper wire and so on.​



Y series high-voltage motors can be used to drive various general machinery, such as: compressors, water pumps, fans, crushers, cutting machine tools, transportation machinery and other mechanical equipment. It is used as the prime mover in various industrial and mining enterprises such as mines, machinery industry, and power plants. The blowers, coal mills, rolling mills, winches, etc. used for dragging should be specified when ordering.



Motor type/Model Y500/630/710/800/900 IP Rate IP54/IP44/IP55
Power range 220kw - 2500KW,3500KW IC(cooling) IC611
Voltage 3KV, 6KV, 10KV Poles 2,4,6,8,10,12
Frequency 50HZ/60HZ Insulation F
Speed 500/590/740/990/1500/3000RPM Efficiency 84-94.5%
