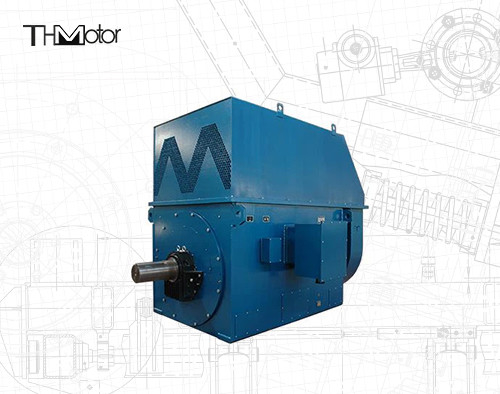

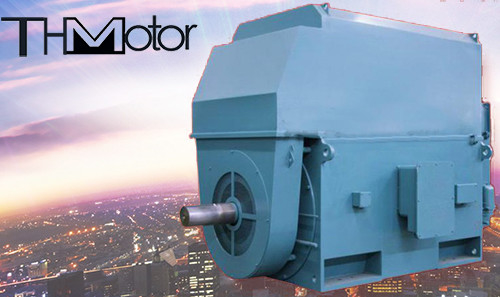

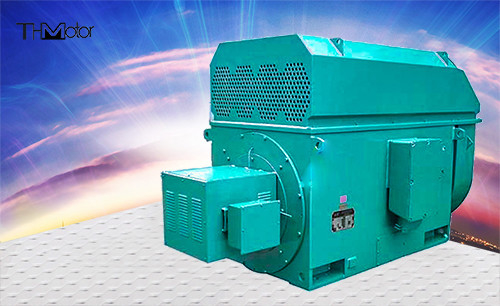

6000kw 3 Phase Electric Squirrel Cage Motors IC01 IC411 IC611

Y Series Three-Phase Asynchronous Motor High Voltage Ac Motor

Product overview

Y series high-voltage motors can be used to drive various general machinery, such as: compressors, water pumps, fans, crushers, cutting machine tools, transportation machinery and other mechanical equipment. It is used as the prime mover in various industrial and mining enterprises such as mines, machinery industry, and power plants. The blowers, coal mills, rolling mills, winches, etc. used for dragging should be specified when ordering.
Altitude: no more than 1000m
Ambient air temperature: no more than 40 ℃ and no serious dust, the minimum ambient air temperature is -15 ℃ for YKK high-voltage motors with rolling bearings, and 5 ℃ for motors with sliding bearings.
There is no corrosive and explosive gas in the air (it can also be made into a motor in humid heat or plateau areas)

Product advantages
1. Rotor dynamic balance adjustment equipment and process
With various specifications of high-precision rotor dynamic balance adjustment equipment, 57 years of adjustment experience, all specifications of rotors have been adjusted with high precision to ensure low vibration and low noise of the motor, reduce bearing wear, and ensure the reliability of the entire motor;
2. Use imported bearings
The high-speed large frame size motor uses authentic imported Swedish SKF or Japanese NSK bearings to ensure low noise, low vibration, high precision, high efficiency, long life and less maintenance;
3. The whole series uses silicon (silicon) steel sheet
All series of DC motors are made of WISCO's silicon steel sheet to ensure high permeability, low iron loss, high power factor, small motor temperature rise, and strong overload capacity;
The high-voltage motor case shell adopts an integral molding process to reduce welding seams, and the rigidity, strength and reliability of the body are higher than those of ordinary motors.
4. The whole series uses class F and class H insulation materials, and there is no short board for high voltage insulation
The whole series adopts F-class and H-class insulating materials (insulating paint, insulating paper, wrapping tape and insulating sleeve, etc.);
5. The whole series uses insulating paint
The whole series adopts F-class and H-class enameled wire, insulated wire covered wire, insulated flat copper wire and so on.​
