TM 1300KW Large Scale Synchronous Motor Driving Coal Mill

Product Details:

Place of Origin:	China
Brand Name:	THMotor
Certification:	CE
Model Number:	TDMK400

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD 20000-100000
Packaging Details:	Seaworthy packing
Delivery Time:	70DAYS
Supply Ability:	100SET/YEAR

Contact Now

Detailed Product Description

Product Name:	TM1300KW Large Scale Synchronous Motor For Driving Coal Mill	Power Range:	400-15000kw
Voltage:	6kv	Speed Range:	100, 125, 150, 167, 187.5, 200, 250, 300r/min
Poles:	60, 48, 40, 36, 32, 30, 24, 20	Frequency:	50hz,60hz
Cooling Method:	IC01,IC37,IC81W	IP Rate:	IP00, IP20, IP21, IP23, IP44, IP54, IP55
Standard:	IEC,GB
High Light:	1300KW Large Scale Synchronous Motor , 1300KW Driving Coal Mill Motor , TM Driving Coal Mill Motor

TM1300KW Large Scale Synchronous Motor For Driving Coal Mill

TM, TMW series synchronous motor is developed especially for driving coal mill. Going with the wide application of air clutch, coal mill is developing quickly which also improve the specification, output, type and performance of the old TDMK series ball mil synchronous motor.

The series motor is with rational structure, high efficiency, large pull- out torque, low vibration, and convenient for installation and maintenance, etc. The motor adopting traditional gear coupling structure has large lockedrotor torque and could start on-load mill directly, but simultaneously, electrical drives equipment has to achieve much higher requirement owing to large locked-rotor current. The motor adopting air clutch coupling structure is drilled deep hole in the shaft center and with compressed air connecting flange in the end. Motor no-load starting and low locked-rotor current could decrease the requirement for electrical drives equipment. The cooling method of this series motor is IC01 and the enclosure protection class is IP20 or IP21.

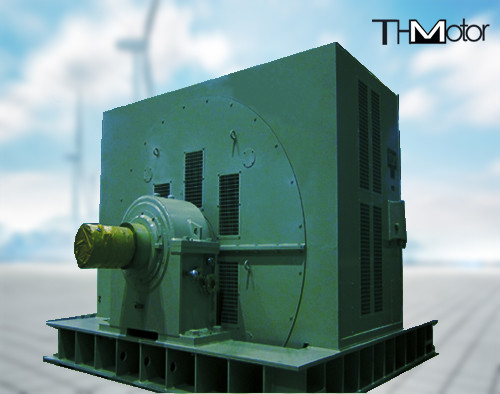

TM 1300KW Large Scale Synchronous Motor Driving Coal Mill 0

Type	Output kW	Speed r/min	Voltage kV	cos	Current A	Eftici -ency %	Ist In	Mst Mn	Mpi Mn	Mm Mn	Exciting Voltage V	Excitation Current A
TM630-30	630	200	10	0.9	44	92.5	5.3	0.72	0.96	2.5	81	213
TM800-30	800	200	10	0.9	55	92.7	4.5	0.60	0.83	2.3	92	230
TM800-30	800	200	6	0.9	92	93.3	3.8	0.62	0.61	2.2	92	216
TM1000-30	1000	200	10	0.9	68.5	93.6	4.1	0.68	0.71	2.1	89	242
TM1000-30	1000	200	6	0.9	114	94.1	4.2	0.70	0.73	2.1	97	201
TM1250-30	1250	200	10	0.9	85	94.1	4.3	0.65	0.77	2.2	84	274
TM1250-30	1250	200	6	0.9	141	94.4	4.0	0.65	0.71	2.0	89	255
TM1400-30	1400	200	10	0.9	95	94.3	4.4	0.66	0.80	2.2	92	276
TM1500-30	1500	200	10	0.9	102	94.5	4.8	0.71	0.89	2.3	98	263
TM1500-30	1500	200	6	0.9	169	94.6	4.1	0.64	0.73	2.1	100	248
TM3300-30	3300	200	10	0.9	221	95.8	3.77	0.58	0.62	2.1	156	246
TM3500-30	3500	200	6	0.9	388	96.3	3.65	0.57	0.61	1.98	151	241
TM3800-30	3800	200	6	0.9	422	96.2	3.36	0.53	0.56	1.92	158	255
TM4000-30	4000	200	6	0.9	444	96.3	3.19	0.50	0.53	1.89	164	265
TM4500-30	4500	200	10	0.9	300	96.2	4.27	0.45	0.83	2.12	192	238
TM4800-30	4800	200	6	0.9	531	96.5	3.72	0.41	0.67	2.0	190	262
TM400-32	400	187.5	6	0.9	47	91.3	7.0	2.01	1.07	3.07	85	171
TM560-32	560	187.5	6	0.9	65	92.3	5.3	1.51	0.78	2.53	88	177
TM630-36	630	167	6	0.9	73	92.2	4.89	0.87	0.84	2.4	89	182
