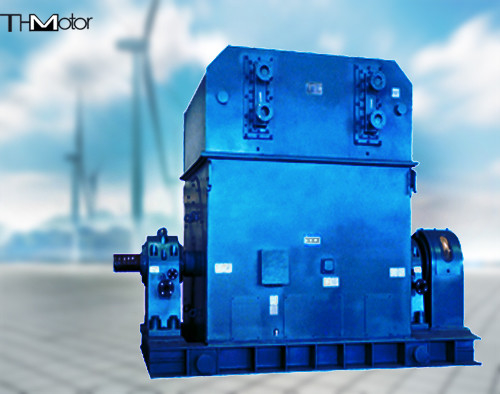

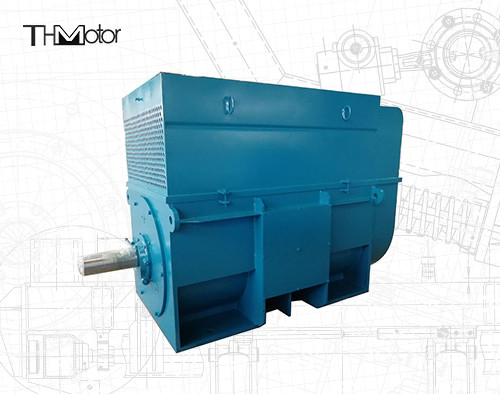

TYPKK 15000kw PM Large Synchronous Motor Frequency Converter Speed Regulation

TYPKK 15000kw PM Large Synchronous Motor Frequency Converter Speed Regulation

  • TYPKK 15000kw PM Large Synchronous Motor Frequency Converter  Speed Regulation
  • TYPKK 15000kw PM Large Synchronous Motor Frequency Converter  Speed Regulation
  • TYPKK 15000kw PM Large Synchronous Motor Frequency Converter  Speed Regulation
TYPKK 15000kw PM Large Synchronous Motor Frequency Converter  Speed Regulation
Product Details:
Place of Origin: China
Brand Name: THMotor
Certification: CE
Model Number: TDMK400
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
Contact Now
Detailed Product Description
Product Name: TYPKK Frequency Conversion Speed Regulation High Voltage PMSM Large Synchronous Motor Power Range: 400-15000kw
Voltage: 6kv Speed Range: 100, 125, 150, 167, 187.5, 200, 250, 300r/min
Poles: 60, 48, 40, 36, 32, 30, 24, 20 Frequency: 50hz,60hz
Cooling Method: IC01,IC37,IC81W IP Rate: IP00, IP20, IP21, IP23, IP44, IP54, IP55
Standard: IEC,GB
High Light:

Frequency Converter Large Synchronous Motor

,

TYPKK PM Synchronous Motor

,

15000kw PM Synchronous Motor

TYPKK Frequency Conversion Speed Regulation High Voltage PMSM Large Synchronous Motor



Product overview



The efficiency index of this series of products refers to the Grade 1 standard of GB 30254-2013 "Energy Efficiency Limits and Energy Efficiency Grades for High-Voltage Three-Phase Scratch Induction Motors".

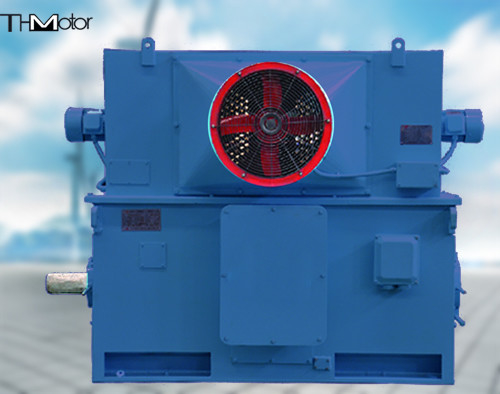

This series of products adopts an independent fan cooling structure, and the rest of the structure is the same as the TYKK basic series.
This series of products are powered by inverter and have 0-50 Hz constant torque output characteristics. When users need speed regulation higher than 50 Hz, please specify when ordering.


In the range of 25%-120% load, this series of products has higher efficiency than asynchronous motors of the same specification, has a wide economic operation range, and has significant energy-saving effects. The temperature rise of the motor is low. Under the rated load, the temperature rise of the motor is 30-50K.


This series of products are widely used in petrochemical, electric power, transportation, textile, industrial and mining enterprises, fans, water pumps, belt conveyors and other mechanical transmission conditions. Depending on the load adjustment range, the general power saving rate is about 30%.


This series of frequency conversion speed regulation ultra-efficient permanent magnet synchronous motors are powered by frequency converters, have 0-50 Hz constant torque output characteristics, and have a rated voltage of 10KV. According to user needs, 6KV and other rated voltage products can be provided.



Product specifications



TYPKK 15000kw PM Large Synchronous Motor Frequency Converter  Speed Regulation 0



Each series of motors

TYPKK 15000kw PM Large Synchronous Motor Frequency Converter  Speed Regulation 1



Our aftersales service

TYPKK 15000kw PM Large Synchronous Motor Frequency Converter  Speed Regulation 2



Product packaging

TYPKK 15000kw PM Large Synchronous Motor Frequency Converter  Speed Regulation 3



Certifications

TYPKK 15000kw PM Large Synchronous Motor Frequency Converter  Speed Regulation 4
