Our motor, save your energy, drive your success!
 |
| Place of Origin: | China |
| Brand Name: | THMotor |
| Certification: | CE |
| Model Number: | TDMK400 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD 20000-100000 |
| Packaging Details: | Seaworthy packing |
| Delivery Time: | 70DAYS |
| Supply Ability: | 100SET/YEAR |
| Product Name: | T36000KW Large Scale Synchronous Motor For Blust Blower Steel Plant | Power Range: | 400-15000kw |
|---|---|---|---|
| Voltage: | 6kv | Speed Range: | 100, 125, 150, 167, 187.5, 200, 250, 300r/min |
| Poles: | 60, 48, 40, 36, 32, 30, 24, 20 | Frequency: | 50hz,60hz |
| Cooling Method: | IC01,IC37,IC81W | IP Rate: | IP00, IP20, IP21, IP23, IP44, IP54, IP55 |
| Standard: | IEC,GB | ||
| High Light: | 6kv three phase synchronous motor,three phase synchronous motor IP55,6kv Blast Blower Steel Plant motor |
||

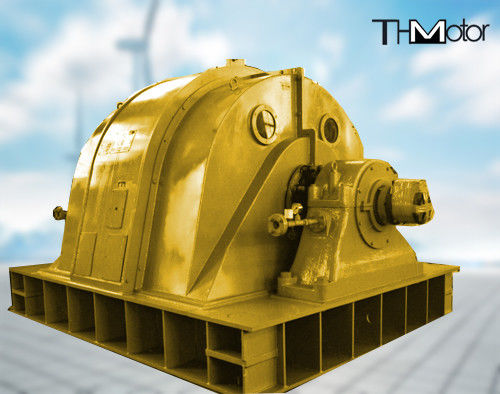

T36000KW Large Scale Synchronous Motor For Blust Blower Steel Plant
T series three phase synchronous motor
T series three-phase synchronous motors are suitable for driving fans, water pumps, motor-generator sets and other general machinery. The rated voltage of this series of motors is 10000V, which can be made 6000V according to user requirements. The rated power factor is 0.9 (leading). The motor is allowed to start directly at full voltage. When starting, the rotor circuit should be connected in series with a starting resistance 10 times the resistance of the field winding.
This series of motors complies with the relevant provisions of the national standard GB 755 "Rating and Performance of Rotating Electric Machines".
|
kW |
A |
% |
Ist |
V |
A | |||
| Tm | Mst | Tp | ||||||
| 1800 | 200 | 96.4 | 5.55 | 1.74 | 1.79 | 1.12 | 36 | 250 |
| 2000 | 221.5 | 96.6 | 5.01 | 1.67 | 1.61 | 1.01 | 38 | 268 |
| 2200 | 244 | 96.6 | 4.55 | 1.61 | 1.46 | 0.92 | 44 | 288 |
| 2250 | 249 | 96.7 | 5.53 | 1.63 | 1.82 | 1.11 | 40 | 259 |
| 2500 | 276 | 96.7 | 4.98 | 1.57 | 1.64 | 1 | 47 | 281 |
| 2800 | 309 | 96.8 | 5.64 | 1.73 | 1.79 | 1.14 | 43 | 394 |
| 3200 | 353 | 97 | 5.45 | 1.9 | 1.57 | 1.03 | 38 | 380 |
| 3400 | 375 | 97.1 | 5.07 | 1.85 | 1.45 | 0.96 | 39 | 396 |
| 3700 | 408 | 96.9 | 6.01 | 1.88 | 1.84 | 1.18 | 40 | 367 |
| 3800 | 418.5 | 97.1 | 5.87 | 1.87 | 1.73 | 1.11 | 40 | 362 |
| 4000 | 441 | 97 | 5.58 | 1.82 | 1.64 | 1.05 | 45 | 378 |
| 4100 | 452 | 97 | 5.46 | 1.8 | 1.67 | 1.07 | 47 | 392 |
| 4200 | 462 | 97.1 | 5.37 | 1.76 | 1.57 | 1.09 | 57 | 379 |
| 4300 | 473 | 97.2 | 5.25 | 1.74 | 1.54 | 1.06 | 58 | 385 |
| 5000 | 549 | 97.4 | 5.36 | 1.72 | 1.58 | 1.09 | 64 | 391 |
| 5400 | 592 | 97.5 | 6.01 | 1.83 | 1.76 | 1.21 | 65 | 404 |
| 5500 | 603 | 97.5 | 5.91 | 1.82 | 1.73 | 1.19 | 65 | 409 |
| 5600 | 614 | 97.5 | 5.8 | 1.81 | 1.7 | 1.16 | 67 | 414 |
| 6000 | 658 | 97.6 | 5.41 | 1.76 | 1.59 | 1.09 | 70 | 435 |
| 6600 | 722.5 | 97.7 | 6.05 | 1.73 | 1.83 | 1.22 | 77 | 407 |
| 6800 | 744 | 97.7 | 5.87 | 1.71 | 1.77 | 1.18 | 78 | 415 |
| 7600 | 832 | 97.7 | 5.24 | 1.64 | 1.58 | 1.05 | 85 | 451 |
| 8000 | 876 | 97.6 | 4.99 | 1.59 | 1.53 | 1.01 | 86 | 445 |
| 8100 | 887 | 97.7 | 4.93 | 1.58 | 1.51 | 1 | 87 | 450 |
| 8400 | 919 | 97.7 | 4.76 | 1.57 | 1.45 | 0.96 | 90 | 463 |
| 12000 | 1311 | 97.8 | 5.03 | 1.43 | 1.31 | 1.08 | 108 | 424 |
