Place of Origin: | China |
Brand Name: | THMotor |
Certification: | CE |
Model Number: | TDMK400 |
Minimum Order Quantity: | 1set |
---|---|
Price: | USD 20000-100000 |
Packaging Details: | Seaworthy packing |
Delivery Time: | 70DAYS |
Supply Ability: | 100SET/YEAR |
Power Range: | 400-15000kw | Voltage: | 3kv-11kv |
---|---|---|---|
Speed Range: | 100, 125, 150, 167, 187.5, 200, 250, 300r/min | Poles: | 60, 48, 40, 36, 32, 30, 24, 20 |
Frequency: | 50hz,60hz | Cooling Method: | IC01,IC37,IC81W |
IP Rate: | IP00, IP20, IP21, IP23, IP44, IP54, IP55 | Standard: | IEC,GB |
Highlight: | TXZ Large Synchronous Motor,TXZ Big Starting Torque Motor,Large Synchronous Motor 500r/min |

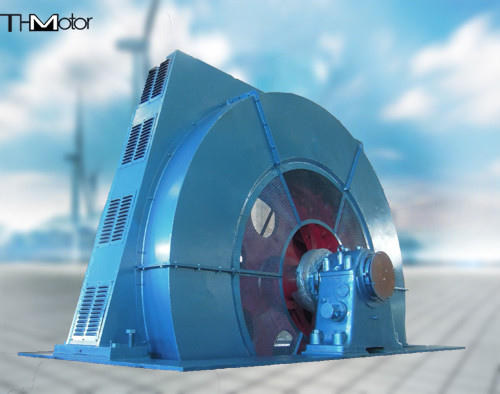

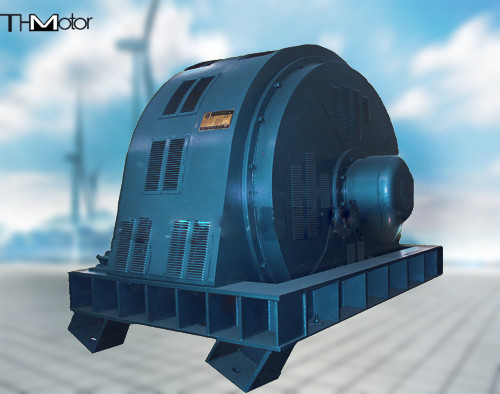

TXZ Large Synchronous Motor Big Starting Torque
TXZ series synchronous motor, the main speed is 250r/min, this series of motors is installed at an angle of 30°, mainly used for drainage pumping stations, the protection grades are mainly IP20, IP21, IP23
Widely used in petroleum, chemical, coal and other industries to drag reciprocating compressors, working in the explosive gas environment of "2" zone. Under normal working conditions, the altitude does not exceed 1000m, the maximum ambient air temperature does not exceed +40°C, and the minimum ambient temperature is -5°C.
Technical data and structure
Technical data
Rated voltage: 6kV, 10kV;
- Rated frequency: 50Hz;
- Quota: S1;
Synchronous speed: 250 r/min, 300 r/min, 333 r/min, 375 r/min, 428 r/min, 500 r/min;
- Thermal classification: 155 (F) level;
Shaft center height: 630mm;
Explosion-proof mark: ExeⅡCT1 Gc, ExeⅡCT2 Gc, ExeⅡCT3 Gc;
- efficiency: agreement;
- Power factor: 0.9 (leading);
The guaranteed value of the ratio of out-of-step torque to rated torque at rated voltage is 1.6;
The guaranteed value of the ratio of the locked-rotor torque to the rated torque under the rated voltage is 0.6;
- The guaranteed value of the ratio of nominal pull-in torque to rated torque at rated voltage is 0.6;
- The guaranteed value of the ratio of the locked rotor current to the rated current at rated voltage is 6.5;
- t time is not less than 5s.
Performance indicators can also be negotiated according to user requirements.
