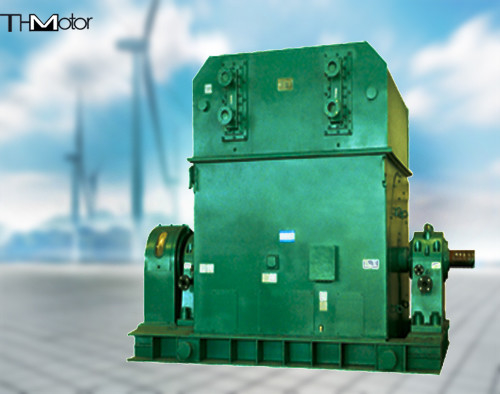

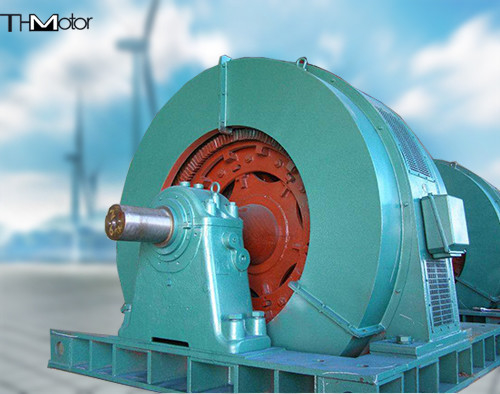

TAW 10000V AC Brushless Synchronous Motor For Coal Mill Cement 1000r/Min

TAW Large AC Brushless Synchronous Motor For Coal Mill Cement Industry

technical parameter:
Rated voltage: 3000V, 6000V, 10000V
Capacity range: 500 kW ~6300kW
Rated frequency: 50Hz
Quota: S1
Synchronous speed: 1500, 1000r/min
Insulation class: F class
Shaft center height: 630mm
Efficiency: agreed by the user and the manufacturer
Power factor: 0.9 (leading)
The guaranteed value of the ratio of out-of-step torque to rated torque at rated voltage is 1.7
The guaranteed value of the ratio of stall torque to rated torque at rated voltage is 1.0
The guaranteed value of the ratio of pull-in torque to rated torque at rated voltage is 0.7
The guaranteed value of the ratio of locked rotor current to rated current at rated voltage is 7.0
Technical Features
The optimized air circuit, magnetic circuit and circuit design make the motor have good electrical performance, low electromagnetic noise, and superior high efficiency and energy saving.
Three-dimensional software design, supplemented by ANSYS analysis software, uses finite element method to analyze electromagnetic field, structural field, temperature field, etc., to ensure the high reliability of the motor.
With solid magnetic pole structure, it can be used to drive large rotational inertia loads such as sintering machines and fans in steel plants.
The motor starting method adopts soft start, and the starting scheme is determined according to the resistance torque and moment of inertia of the load.
Scope of use
It can be used to drive large moment of inertia equipment such as fans, pumps and compressors.
