Place of Origin: | China |
Brand Name: | THMotor |
Certification: | CE |
Model Number: | TDMK400 |
Minimum Order Quantity: | 1set |
---|---|
Price: | USD 20000-100000 |
Packaging Details: | Seaworthy packing |
Delivery Time: | 70DAYS |
Supply Ability: | 100SET/YEAR |
Power Range: | 400-15000kw | Voltage: | 3kv-11kv |
---|---|---|---|
Speed Range: | 100, 125, 150, 167, 187.5, 200, 250, 300r/min | Poles: | 60, 48, 40, 36, 32, 30, 24, 20 |
Frequency: | 50hz,60hz | Cooling Method: | IC01,IC37,IC81W |
IP Rate: | IP00, IP20, IP21, IP23, IP44, IP54, IP55 | Standard: | IEC,GB |
Highlight: | ac motor 3 phase 3KV 6KV 10KV,TM ac motor 3 phase 300r/min,motors used in cement industry 3KV |

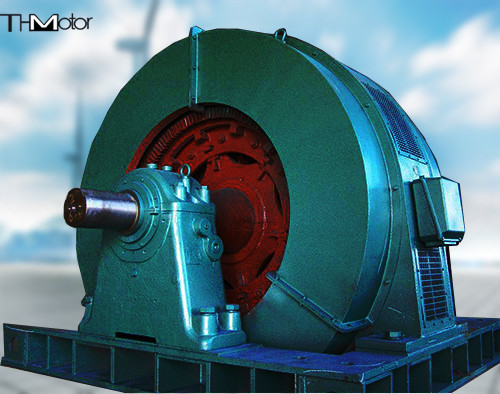

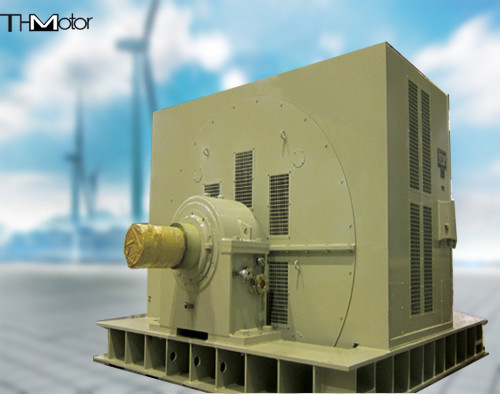

TM AC 3ph Brushless Synchronous Motor For Cement Industry Big Torque
TDMK(TM) series is a large-scale AC three-phase synchronous motor specially designed for coal mills in mines. The frame is welded with steel plates, and the lower part of the frame is the outlet end of the motor. The stator iron core is made of 0.5mm thick low-loss silicon steel sheet punched fan-shaped sheets, the core segments are separated by radial ventilation duct sheets, and the windings are formed by double-stacked short-distance coils. The rotor poles are punched from steel plates and mounted on the rotor yoke together with the pole coils.
The technical requirements that the motor can meet:
1. Voltage level: 3KV, 6KV, 10KV
2. Power range: 250kW~10000kW
3. Protection grade: IP23, IP44, IP54, IP55
4. Insulation class: B, F, H
