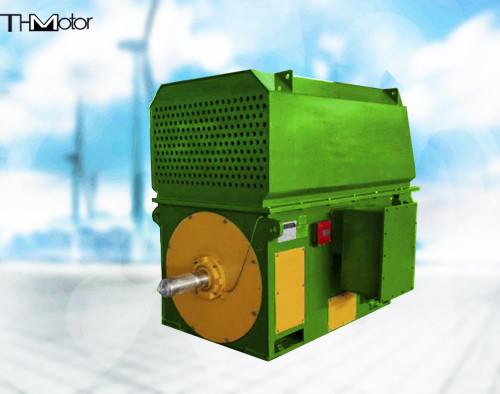

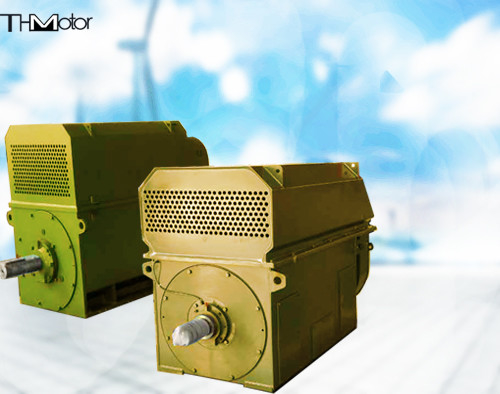

TDMK TM Large Synchronous Motor 10KV Coal Mill Motor CE

TDMK TM Large Synchronous Motor 10KV Coal Mill Motor CE

  • TDMK TM Large Synchronous Motor 10KV Coal Mill Motor CE
  • TDMK TM Large Synchronous Motor 10KV Coal Mill Motor CE
TDMK TM Large Synchronous Motor 10KV Coal Mill Motor CE
Product Details:
Place of Origin: China
Brand Name: THMotor
Certification: CE
Model Number: TDMK400
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
Contact Now
Detailed Product Description
Power Range: 400-15000kw Voltage: 3kv-11kv
Speed Range: 100, 125, 150, 167, 187.5, 200, 250, 300r/min Poles: 60, 48, 40, 36, 32, 30, 24, 20
Frequency: 50hz,60hz Cooling Method: IC01,IC37,IC81W
IP Rate: IP00, IP20, IP21, IP23, IP44, IP54, IP55 Standard: IEC,GB
Highlight:

TDMK TM Large Synchronous Motor

,

TDMK TM Coal Mill Motor

,

10KV Coal Mill Motor

TDMK TM Large  Synchronous Motor For Coal Mill



TDMK500-36/2600 10KV motor



parameter description
(1) The rated parameters of the motor are continuous ratings based on the S1 working system;
(2) Rated voltage: common voltage levels are 600V, 690V, 1200V, 1650V, 3150V, 3300V, 6600V, 10000V;
(3) Rated frequency: 50Hz or 60Hz,
(4) Absolute green grade: F grade.
(5) Rated power factor: 0.9 (leading)
(6) The standard temperature measuring points of the motor are configured as:
1. Stator winding temperature measuring element pt100, 2 for each phase, 6 in total;
2. Bearing measuring and lifting element pt100, 1 front and rear bearing each,
(7) The rated voltage of the shutdown heater is 380V, 220V can be selected,
(8) The value of the ratio of the step-out torque to the rated torque at the rated voltage: 1.6
The value of the ratio of the stall torque to the rated torque at rated voltage: 0.6
The ratio of the pull-in torque to the rated torque at rated voltage: 0.6
The value of the ratio of the locked rotor current to the rated current at the rated voltage: 6.5Structure description
The ventilation and cooling method of this series of motors can be selected by the user. It can be made into open type natural ventilation cooling, the cooling method is IC01, and it can also be made into a fully enclosed duct ventilation and cooling method, the cooling method is IC21; it is also closed air-water cooling, and the cooling method is IC86W , IPOO, IP23, IP44 or IP54. The motor is composed of stator, rotor, bearing, collector ring (slip ring) and other components. It can be made into a box type or a traditional round frame with a base plate structure. .
The stator core is made of low-loss cold-rolled silicon steel sheets superimposed and pressed, and the core section has radial ventilation ditch to improve the cooling cycle inside the motor. The stator winding adopts the formed double-stacked short-distance coil to improve the magnetic potential harmonic, and adopts the frequency conversion anti-electric insulating material and structure, and the ends are reliably fixed and bound. , and adopts the vacuum pressure impregnation solvent-free paint process (VPI), so that the stator wire diagram and the iron core become a solid whole, which has the characteristics of excellent and reliable insulation performance, high mechanical strength and strong moisture resistance.
The rotor winding is made of magnetic grade coils with heat dissipation turns. Each magnetic pole wire is welded and formed by flat copper wire. The connection with the rotating shaft adopts dove tail or T tail. Fully damped windings are used.
Sliding bearings are used, usually end cap bearings, and seat type bearings can be used. No matter what kind of structure, it has spherical self-aligning function. The sliding bearing structure adopts insulating bearings, and there is a grounding brush at the shaft extension end. The motor usually cannot bear the external axial force, and the allowable axial momentum is ±0.5-±2rnm, and the end cover type rolling bearing structure can be used.
Excitation mode of this series: generally static thyristor excitation device, other types of excitation devices are allowed.
