Place of Origin: | China |
Brand Name: | THMotor |
Certification: | CE |
Model Number: | Y800-4 |
Minimum Order Quantity: | 1set |
---|---|
Price: | USD 20000-100000 |
Packaging Details: | Seaworthy packing |
Delivery Time: | 70DAYS |
Supply Ability: | 100SET/YEAR |
Product Name: | Y630-12 710kw 496rpm Three Phase Asynchronous Motor Squirrel Cage Induction Motor | Power Range: | 400-6000kw |
---|---|---|---|
Voltage: | 6000v-11000v | Speed Range: | 100rpm-3600rpm |
Frequency: | 50hz,60hz | Cooling Method: | IC01、IC411、IC611 |
IP Rate: | IP23, IP54,IP55 | Poles: | 2,4,6,8,12,16 |
Highlight: | Y630-12 Squirrel Cage Induction Motor,Squirrel Cage Induction Motor 710kw,3 Phase Asynchronous Motor 496rpm |

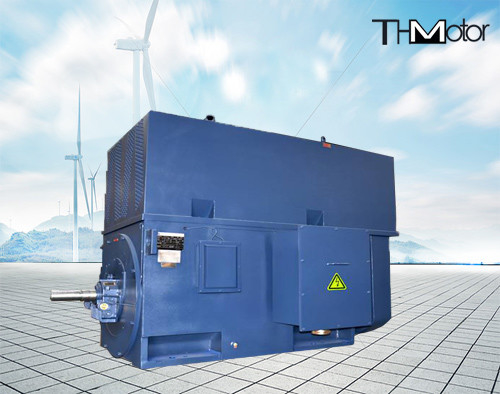

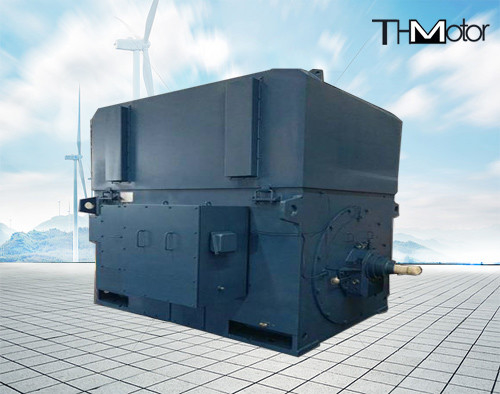

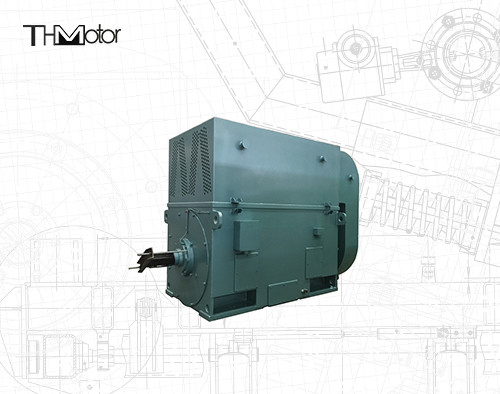

Y630-12 710kw 496rpm Three Phase Asynchronous Motor Squirrel Cage Induction Motor
Product overview
This series of motors is suitable for driving all kinds of machinery without special requirements, such as machine tools, compressors, pumps, fans, conveyor belts, crushers, etc., and can be used as the prime mover in the machinery industry, petroleum industry, power generation industry and various industrial and mining enterprises. use.
Structural features of Y series high voltage motors
Y series high-voltage motor adopts box-type structure, and the frame is welded by steel plate, which is light in weight and strong in hardness. Y series high-voltage motors are naturally ventilated and cooled, and a protective top cover is installed on the upper part of the base, which is convenient for disassembly and assembly, and facilitates the maintenance of the motor.
The stator winding is made of F-class heat-resistant insulating material, with reliable top binding, and the Y series high-voltage motor has good insulation performance and mechanical strength through vacuum pressure dipping.
The rotor of the Y series high voltage motor adopts a squirrel-cage structure with reliable cast aluminum or copper conductors. There are two types of bearings: rolling bearings and sliding bearings, which depend on the speed and power of the motor.
Application of Y series high voltage motor
Y series high-voltage motors can be used to drive various general machinery, such as: compressors, water pumps, fans, crushers, cutting machine tools, transportation machinery and other mechanical equipment. It is used as the prime mover in various industrial and mining enterprises such as mines, machinery industry, and power plants. The blowers, coal mills, rolling mills, winches, etc. used for dragging should be specified when ordering.
Standard form of Y series high voltage motor
Voltage: 10000V, 6000V, 50Hz
Protection grade: IP23 for Y series (IP44 if duct ventilation is used)
Insulation class: F
Working system: S1 (continuous)
Cooling method: Y series is IC01 (or IC11, IC21, IC31)
Installation form: IMB3
Motor connection method: Y (three outgoing terminals in the junction box, the junction box viewed from the extension end of the main shaft is located on the right side of the machine base)
Use environment
Altitude: no more than 1000m
Ambient air temperature: no more than 40°C and no serious dust, the minimum ambient air temperature is -15°C for motors with rolling bearings and 5°C for motors with sliding bearings.
There is no corrosive and explosive gas in the air (it can also be made into a motor in humid heat or plateau areas)
Product specifications
Description | parameters |
---|---|
Rated power: | 450~6300kW |
Rated voltage: | 6kV, 10kV |
Frame size: | 710~800 |
Poles: | 4~16p |
Protection: |
Y series: IP23;YKS,YKK series: I IP54, IP55 |
Cooling : |
Y series: IC401 YKS series: IC81W YKK series: IC611 or IC616 |
Efficiency level: |
GB30254-2013 |
