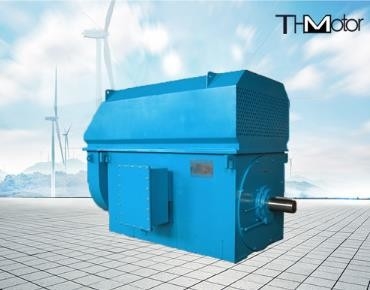

IP23 Energy Saving Low Noise 100rpm to 3000rpm High Voltage Electric Motors 50Hz 10KV

IP23 Energy Saving Low Noise 100rpm to 3000rpm High Voltage Electric Motors 50Hz 10KV

  • IP23 Energy Saving Low Noise 100rpm to 3000rpm High Voltage Electric Motors 50Hz 10KV
IP23 Energy Saving Low Noise 100rpm to 3000rpm High Voltage Electric Motors 50Hz 10KV
Product Details:
Place of Origin: China
Brand Name: THMotor
Certification: CE
Model Number: Y800-4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
Contact Now
Detailed Product Description
Features: High Speed\high Performance Product Name: YK3200-2 3200KW 10KV 50HZ High Voltage Electric Motors For Blast Blower
Power Range: 400-6000kw Voltage: 6000v-11000v
Speed Range: 100rpm-3600rpm Frequency: 50hz,60hz
Cooling Method: IC01、IC411、IC611 IP Rate: IP23, IP54,IP55
Poles: 2,4,6,8,12,16
High Light:

10KV High Voltage Electric Motors

,

High Voltage Electric Motors 50Hz

,

IP23 High Voltage Electric Motor

10KV 50Hz High Voltage Electric Motors For Blast Blower 3600rpm



Product overview



High voltage electric motors adopts new technologies, new materials, new processes in the 1990s, sophisticated material selection, and sophisticated manufacturing. It has the advantages of high efficiency, energy saving, low noise, low vibration, light weight, reliable performance, and convenient installation and maintenance.


This series of motors complies with the national standard GB755 "Rating and Performance of Rotating Electric Machines", the industry standard JB/T7593 "Technical Conditions for Y Series High Voltage Three-phase Asynchronous Motors (Frame No. 355-630)", JB/T10315.1 "YKS, YKS- W, YQF series high-voltage three-phase asynchronous motor technical conditions (frame size 355-630)", JB/T10315.2 "YKK, YKK-W series high-voltage three-phase asynchronous motor technical conditions (frame size 355-630)", The enterprise standard "10KV three-phase asynchronous motor (frame size 450-800) technical conditions" and IEC international standards, the mechanical dimensions and tolerances of each component meet the corresponding national standards and international standards.



Please specify the following when ordering:
(1) Motor model: YK5000-2/1430
(2) Rated frequency: 50Hz
(3) Rated power: 5000kw
(4) Rated voltage: 10kV
(5) Number of poles: 2 poles
(6) Cooling method: IC01
(7) Installation type: IM7212
(8) Protection class: IP23
(9) Rotation direction: clockwise (looking at the shaft extension end of the motor)
(10) Outlet box location: right side of the motor (looking at the shaft extension end of the motor)
(11) Space heaters and temperature measuring elements should be installed.



Product specifications



center high 500/630/710/800 IP level IP54/IP44/IP55/IP23
Rated Power  220kw - 2500KW,3500KW 5000KW Cooling Method) IC611
Voltage 3KV, 6KV, 10KV Poles 2,4,
Frequency 50HZ/60HZ Insulation class F
Speed 500/590/740/990/1500/3000RPM Efficiency 84-94.5%
P.F.power factor 0.84-0.85 AT(Ambient Temp) -15-40℃



Each series of motors

IP23 Energy Saving Low Noise 100rpm to 3000rpm High Voltage Electric Motors 50Hz 10KV 0



Our aftersales service

IP23 Energy Saving Low Noise 100rpm to 3000rpm High Voltage Electric Motors 50Hz 10KV 1



Product packaging

IP23 Energy Saving Low Noise 100rpm to 3000rpm High Voltage Electric Motors 50Hz 10KV 2



Certifications

IP23 Energy Saving Low Noise 100rpm to 3000rpm High Voltage Electric Motors 50Hz 10KV 3
