Place of Origin: | China |
Brand Name: | THMotor |
Certification: | CE |
Model Number: | Y800-4 |
Minimum Order Quantity: | 1set |
---|---|
Price: | USD 20000-100000 |
Packaging Details: | Seaworthy packing |
Delivery Time: | 70DAYS |
Supply Ability: | 100SET/YEAR |
Product Name: | YX900 900kw 2500kw High Voltage Electric Motors For Power Plant | Power Range: | 400-6000kw |
---|---|---|---|
Voltage: | 6000v-11000v | Speed Range: | 100rpm-3600rpm |
Frequency: | 50hz,60hz | Cooling Method: | IC01、IC411、IC611 |
IP Rate: | IP23, IP54,IP55 | Poles: | 2,4,6,8,12,16 |
Highlight: | Power plant Electric Motors 900kw 2500kw,Power plant high efficiency electric motors,high efficiency electric motors 900kw 2500kw |

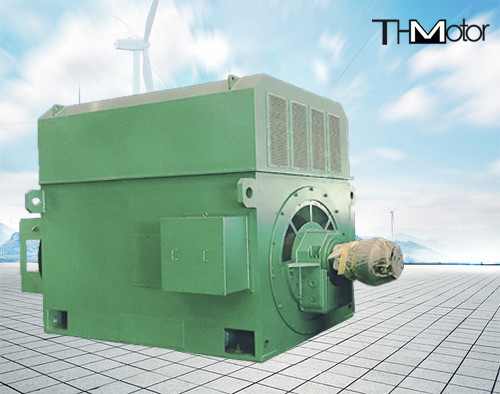

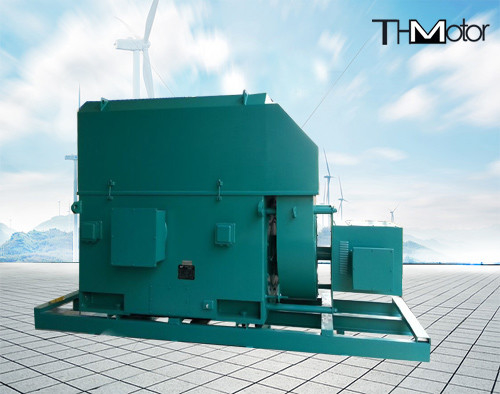

YX900 900kw 2500kw High Voltage Electric Motors For Power plant
YX, YXKS, YXKK series of high-efficiency high-voltage three-phase asynchronous motors adopt new motor electromagnetic design, new technology, new material and less glue insulation structure. By reducing the mechanical loss, copper loss, iron loss, electromagnetic energy loss of the motor, improving the heat dissipation and other measures to improve motor efficiency. Compared with ordinary standard motors, the energy-saving effect of using high-efficiency motors is very obvious. Under normal circumstances, the efficiency can be increased by 1% to 2% on average, and energy saving can be achieved by more than 30%.
YX, YXKS, YXKK series high-efficiency high-voltage three-phase asynchronous motors are series of high-efficiency motors specially designed and developed by the company in response to the country's call for energy conservation and emission reduction. It is a series of products developed by the company with independent intellectual property rights through technological innovation, and the technical level has reached the domestic leading level. It has fully absorbed the advanced technology of high-efficiency motor design at home and abroad in recent years. Convenience and so on. It is especially suitable for the energy saving requirements of fans, pumps, compressors, cranes, conveyor belts, rolling mills and other loads with constant torque and quadratic torque characteristics of continuous operation. The basic technical requirements of the motor meet the requirements of IEC34-1 and GB755 international and national standards, and the installation dimensions meet the IEC72 international standard.
frame(center high) | 500/630/710/800 | IP Rate | IP54/IP44/IP55 |
Rated Power | 220kw - 2500KW,3500KW | IC(cooling) | IC611 |
Rated Voltage | 3KV, 6KV, 10KV | Poles | 2,4,6,8,10,12 |
Frequency | 50HZ/60HZ | Insulation class | F |
Speed | 500/590/740/990/1500/3000RPM | Efficiency | 84-94.5% |
P.F.power factor | 0.84-0.85 | AT(Ambient Temp) | -15-40℃ |
