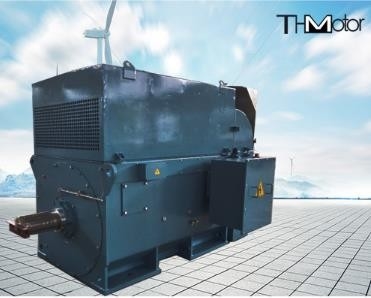

Y800 6000kw Large Squirrel Cage High Voltage Electric Motors 1500r/ Min IP54

Y800 6000kw Large Squirrel Cage High Voltage Electric Motors 1500r/ Min IP54

  • Y800 6000kw Large Squirrel Cage High Voltage  Electric Motors 1500r/ Min IP54
Y800 6000kw Large Squirrel Cage High Voltage  Electric Motors 1500r/ Min IP54
Product Details:
Place of Origin: China
Brand Name: THMotor
Certification: CE
Model Number: Y800-4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
Contact Now
Detailed Product Description
Product Name: Y800 Large Squirrel Cage High Voltage Electric Motors Rolling Bearing Power Range: 400-6000kw
Poles: 2,4,6,8,12,16 Cooling Method: IC01、IC411、IC611
Voltage: 6000v-11000v Speed Range: 100rpm-3600rpm
Frequency: 50hz,60hz IP Rate: IP23, IP54,IP55
High Light:

squirrel cage Electric Motors 1500r/ Min

,

high voltage motors IP54

,

Y800 squirrel cage induction motor

Y800 Large Squirrel Cage High Voltage Electric Motors Rolling Bearing



Product overview



Large squirrel cage high voltage electric motors has strong versatility and has become a mainstream product, which can replace the original old-fashioned JK series motors. The motor is welded by all steel plates, with a reasonable structure, and an air-to-air cooler with good heat dissipation performance is installed on the top.



Product specifications

data in different frame and RPM as below table



model power
(kW)
speed
(r/min)
rated current
(A)
efficient
(%)
P,F

locked current

locked torque

Tm

Y710-6-4 2500 1500 175.2 95.8 0.86 7.0 0.5 1.8
Y710-7-4 2800 196.0 95.9
Y710-8-4 3150 220.3 96.0
Y710-9-4 3550 248.0 96.1
Y800-6-4 4000 275.9 96.2 0.87
Y800-7-4 4500 310.4 96.2
Y800-8-4 5000 344.5 96.3
Y800-9-4 5600 385.9 96.3
Y900-6-4 6300 433.7 96.4
Y900-7-4 7100 488.2 96.5
Y900-8-4 8000 549.5 96.6
Y1000-6-4 9000 577.5 96.7
Y1000-7-4 10000 685.5 96.8
Y710-6-6 2000 1000 140.6 95.5 0.86 6.5 0.6 1.8
Y710-7-6 2240 157.3 95.6
Y710-8-6 2500 175.4 95.7
Y800-6-6 2800 196.2 95.8
Y800-7-6 3150 220.5 95.9
Y800-8-6 3550 248.2 96.0
Y900-6-6 4000 279.4 96.1
Y900-7-6 4500 314.0 96.1
Y900-8-6 5000 344.9 96.2 0.87
Y900-9-6 5600 386.3 96.2
Y1000-6-6 6300 434.1 96.3
Y1000-7-6 7100 488.7 96.4
Y100-8-6 8000 550.1 96.5
Y710-6-8 1600 750 111.8 95.0 0.82 6.5 0.6 1.8
Y710-7-8 1800 128.5 95.1
Y710-8-8 2000 142.7 95.2
Y710-9-8 2240 159.6 95.3
Y800--6-8 2500 178.0 95.4 0.83
Y800-7-8 2800 199.1 95.5
Y900-6-8 3150 223.8 95.6
Y900-7-8 3550 251.9 95.7 0.84
Y1000-6-8 4000 280.3 95.8
Y1000-7-8 4500 315.0 95.9
Y1000-8-8 5000 349.6 96.0
Y710-6-10 1250 600 95.5 94.5 0.8 6.0 0.6 1.8
Y710-7-10 1400 106.8 94.6
Y710-8-10 1600 109.3 94.7
Y800-6-10 1800 135.3 94.8 0.81
Y800-7-10 2000 150.2 94.9
Y800-8-10 2240 168.0 95.0
Y900-6-10 2500 185.1 95.1 0.82
Y900-7-10 2800 207.1 95.2
Y1000-6-10 3150 229.9 95.3 0.83
Y1000-7-10 3550 258.8 95.4
Y1000-6-12 2500 500 190.3 94.8 0.8
Y1000-7-12 2800 212.9 94.9
Y1000-8-12 3150 239.3 95.0
Y1000-9-12 3550 269.4 95.1
Y710-1-4 3150 1500 361.8 96.3 0.87 6.5 0.5 1.8
Y710-2-4 3550 407.7 96.3
Y710-3-4 400 458.9 96.4
Y710-4-4 4500 516.9 96.4
Y800-1-4 5000 566.6 96.5 0.88
Y800-2-4 5600 634.6 96.5
Y800-3-4 6300 713.2 96.6
Y900-1-4 7100 802.9 96.7
Y900-2-4 8000 903.7 96.8
Y900-3-4 9000 1015.6 96.9
Y710-1-6 2240 1000 261.0 96.0 0.86 6.5 0.6 1.8
Y710-2-6 2500 291.1 96.1
Y710-3-6 2800 326.0 96.1
Y710-4-6 3150 366.4 96.2
Y800-1-6 3550 412.9 96.2
Y800-2-6 4000 465.3 96.3
Y800-3-6 4500 522.9 96.3
Y800-4-6 5000 580.4 96.4
Y900-1-6 5600 642.5 96.4 0.87
Y900-2-6 6300 722.1 96.5
Y900-3-6 7100 812.9 96.6
Y1000-1-6 8000 915.1 96.7
Y1000-2-6 9000 1028.4 96.8
Y1000-3-6 1000 1141.5 96.9
Y710-1-8 1800 750 213.6 95.4 0.85 6.5 0.6 1.8
Y710-2-8 2000 237.1 95.5
Y710-3-8 2240 265.3 95.6
Y800-1-8 2500 295.7 95.7
Y800-2-8 2800 330.9 95.8
Y800-3-8 3150 372.2 95.8
Y800-4-8 3550 419.1 95.9
Y900-1-8 4000 471.7 96.0 0.86
Y900-2-8 4500 514.0 96.1
Y900-3-8 5000 582.2 96.2
Y1000-1-8 5600 651.4 96.2
Y1000-2-8 6300 732.0 96.3
Y1000-3-8 7100 824.1 96.4
Y1000-4-8 8000 927.6 96.5
Y710-1-10 1600 600 195.3 96.0 0.83 6.0
Y710-2-10 1800 219.4 95.1
Y7103-10 2000 600 243.6 95.2 0.83 6.0 0.6 1.8
Y800-1-10 2240 272.5 95.3
Y800-2-10 2500 303.8 95.4
Y800-3-10 2800 339.9 95.5
Y900-1-10 3150 377.5 95.6 0.84
Y900-2-10 3550 425.0 95.7
Y900-3-10 4000 478.3 95.8
Y900-4-10 4500 538.1 95.8
1000-1-10 5000 597.3 95.9
Y1000-2-10 5600 668.9 95.9
Y1000-3-10 6300 751.8 96
Y1000-4-10 7100 847.2 96
Y710-1-12 1120 500 144.4 94.5 0.79 6.0 0.6 1.8
Y710-2-12 1250 161.0 94.6
Y710-3-12 1400 180.1 94.7
Y800-1-12 1600 203.2 94.7 0.80
Y800-2-12 1800 228.4 94.8
Y800-3-12 2000 253.5 94.9
Y800-4-12 2240 283.6 95.0
Y900-1-12 2500 312.0 95.2 0.81
Y900-2-12 2800 349.0 95.3
Y900-3-12 3150 392.3 95.4
Y1000-1-12 3550 441.6 95.5
Y1000-2-12 4000 497.1 95.6
Y1000-3-12 4500 559.2 95.6
Y1000-4-12 5000 620.7 95.7
Y710-1-16 630 375 89.2 93.1 0.73 6.0 0.6 1.8
Y710-2-16 710 100.3 93.3
Y710-3-16 800 112.9 93.4
Y710-4-16 900 126.9 93.5
Y800-1-16 1000 138.9 93.6 0.74
Y800-2-16 1120 155.4 93.7
Y800-3-16 1250 173.3 93.8
Y800-4-16 1400 375 193.9 93.9
Y900-1-16 1600 218.4 94.0 0.75 6.0 0.6 1.8
Y900-2-16 1800 245.4 94.1
Y900-3-16 2000 272.4 94.2
Y1000-1-16 2240 304.8 94.3
Y1000-2-16 2500 339.8 94.4
Y1000-3-16 2800 380.2 94.5

Each series of motors
Y800 6000kw Large Squirrel Cage High Voltage  Electric Motors 1500r/ Min IP54 0

Our aftersales service
Y800 6000kw Large Squirrel Cage High Voltage  Electric Motors 1500r/ Min IP54 1

Product packaging
Y800 6000kw Large Squirrel Cage High Voltage  Electric Motors 1500r/ Min IP54 2

Certifications
Y800 6000kw Large Squirrel Cage High Voltage  Electric Motors 1500r/ Min IP54 3
