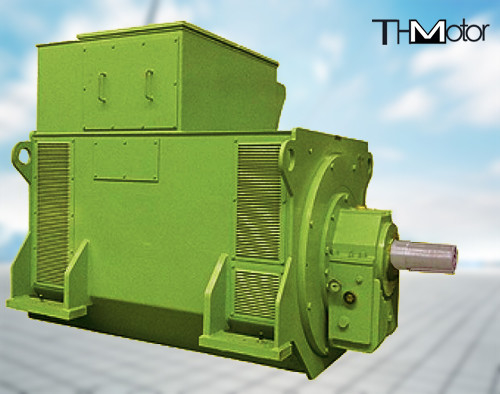

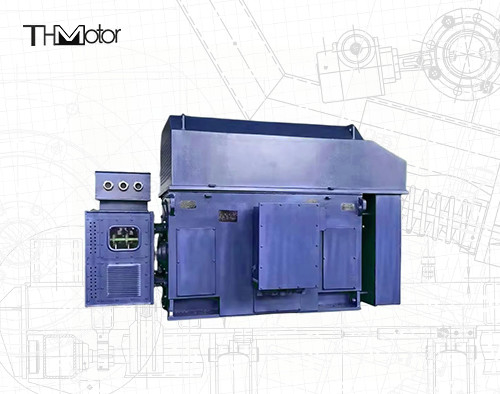

800KW 375rpm three phase electric motor high-voltage wound rotor motor YRKK 900KW

800KW 375rpm three phase electric motor high-voltage wound rotor motor YRKK 900KW

  • 800KW  375rpm  three phase electric motor high-voltage wound rotor motor YRKK  900KW
  • 800KW  375rpm  three phase electric motor high-voltage wound rotor motor YRKK  900KW
800KW  375rpm  three phase electric motor high-voltage wound rotor motor YRKK  900KW
Product Details:
Place of Origin: China
Brand Name: THMotor
Certification: CE
Model Number: QFRW60-2
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
Contact Now
Detailed Product Description
Product Name: YRKK Series HV Wound Rotor Motor Power Range: 200-6000kw
Voltage: 3kv-10kv Speed Range: 500rpm,1500rpm,3000rpm
Install Method: IM7311、IM7321、IM7121、IM7123 Frequency: 50hz,60hz
Cooling Method: IC611 IP Rate: IP44,IP54
Standard: IEC,GB
Highlight:

TFC Diesel engine generator

,

Diesel engine generator IC01 IC81W

,

marine diesel generator IC01 IC81W

YRKK Series HV Wound Rotor Motor



Product overview



YRKK-series (3kv, 6kv, 10kV) motor, is of wound rotor three phase asynchronous motor. Which complies with JB/T10314.2-2002. The protection degree of the motor is of IP44/IP54 and the cooling method is of IC611.



The motor has such advantage as high efficiency, energy-saving low noise, low vibration, light weight and reliable performance. They are easy for installation and maintenance.



This motor can generate larger starting torque at the state of relatively lower starting current. It used where the capacity of the feeder line is insufficient to start a squirrel cage motor or where the longer starting time and frequent starting are needed or where adjustment of speed is needed within a limited range such as windlass, press machines, drawing machines.



Product specifications



PRODUCT NAME: YKS Series HV Squirrel Cage Motor POWER RANGE: 200-6000kw
VOLTAGE: 3kv-10kv SPEED RANGE: 1000rpm-1500rpm
Insulation Class F FREQUENCY: 50hz,60hz
COOLING METHOD: ICW81A IP RATE: IP44,IP54




Each series of motors

800KW  375rpm  three phase electric motor high-voltage wound rotor motor YRKK  900KW 0



Our aftersales service

800KW  375rpm  three phase electric motor high-voltage wound rotor motor YRKK  900KW 1



Product packaging

800KW  375rpm  three phase electric motor high-voltage wound rotor motor YRKK  900KW 2



Certifications

800KW  375rpm  three phase electric motor high-voltage wound rotor motor YRKK  900KW 3
