| Place of Origin: | China |
| Brand Name: | THMotor |
| Certification: | CE |
| Model Number: | T 7000 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD 20000-100000 |
| Packaging Details: | Seaworthy packing |
| Delivery Time: | 70DAYS |
| Supply Ability: | 100SET/YEAR |
| Product Name: | YKS Series HV Squirrel Cage Motor | Power Range: | 200-6000kw |
|---|---|---|---|
| Voltage: | 3kv-10kv | Speed Range: | 1000rpm-1500rpm |
| Poles: | 4,6 | Frequency: | 50hz,60hz |
| Cooling Method: | IC37,IC81W | IP Rate: | IP44,IP54 |
| High Light: | 3 phase synchronous generator 1500rpm,TFW 3 phase synchronous generator,TFW brushless three phase synchronous generator |
||

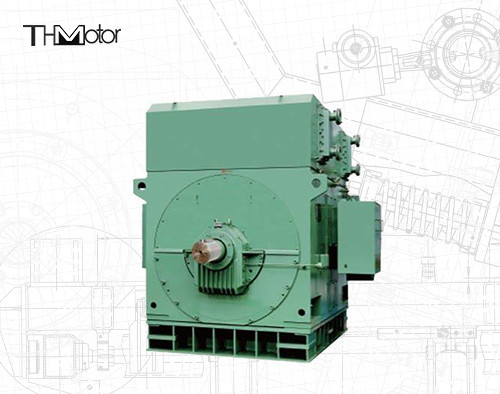

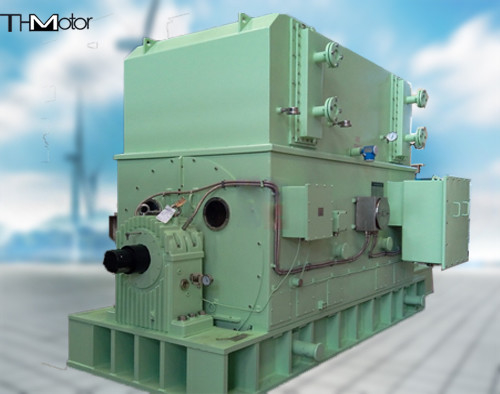

YKS Series HV Squirrel Cage Motor
Product overview
YKS-series (3kv, 6kv, 10kV) motor, is of squirrel-cage three phase asynchronous motor. The protection degree of the motor is of IP44/IP54 and the cooling method is of ICW81A. The motor has such advantage as high efficiency, energy-saving low noise, low vibration, light weight and reliable performance. They are easy for installation and maintenance.
YKS series motor is design into box type construction. The frame is light in weight and good in rigid and it is made of steel plates by melding. Air-water cooler is fixed at the top of frame with bolts and consists outside wind circuit in secondary cooling with water pump and water pool for motor, the primary cooling circulation is consisted of fan, cooler insider of motor.the primary cooling medium(air) can complete the heat exchange with secondary cooling medium in cooling pipe(circulation water) through outside surface of pipe in the cooler as well as spring, etc.
This motor is used to drive various mechanical equipment such as blowers, compressors, pumps, crushing, grinding mill, etc. It can be serve as the prime movers in coal mines, mechanical industry, power plants and various industrial enterprises.
Product specifications
| PRODUCT NAME: | YKS Series HV Squirrel Cage Motor | POWER RANGE: | 200-6000kw |
|---|---|---|---|
| VOLTAGE: | 3kv-10kv | SPEED RANGE: | 1000rpm-1500rpm |
| Insulation Class | F | FREQUENCY: | 50hz,60hz |
| COOLING METHOD: | ICW81A | IP RATE: | IP44,IP54 |
