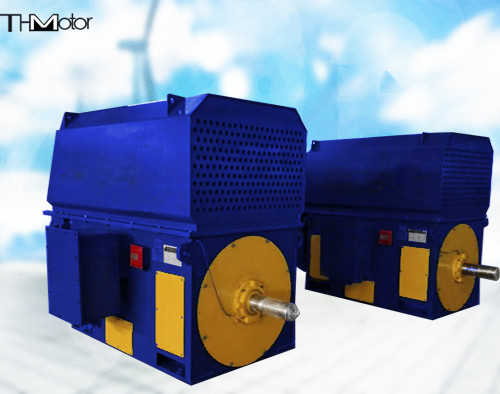

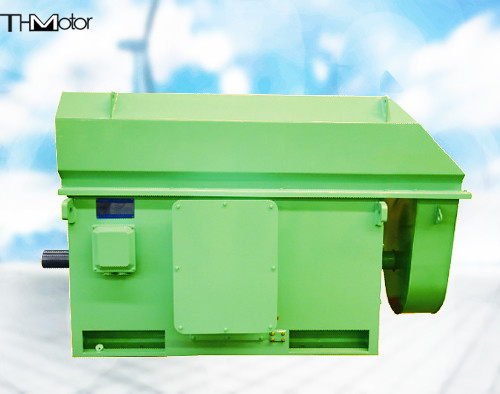

Large Scale 300r/Min TMW Brushless Synchronous Motor 10 KV IEC GB

Large Scale 300r/Min TMW Brushless Synchronous Motor 10 KV IEC GB

  • Large Scale 300r/Min TMW Brushless Synchronous Motor 10 KV IEC GB
  • Large Scale 300r/Min TMW Brushless Synchronous Motor 10 KV IEC GB
Large Scale 300r/Min TMW Brushless Synchronous Motor 10 KV IEC GB
Product Details:
Place of Origin: China
Brand Name: THMotor
Certification: CE
Model Number: TDMK400
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
Contact Now
Detailed Product Description
Power Range: 400-15000kw Voltage: 3kv-11kv
Speed Range: 100, 125, 150, 167, 187.5, 200, 250, 300r/min Poles: 60, 48, 40, 36, 32, 30, 24, 20
Frequency: 50hz,60hz Cooling Method: IC01,IC37,IC81W
IP Rate: IP00, IP20, IP21, IP23, IP44, IP54, IP55 Standard: IEC,GB
Highlight:

TMW Brushless Synchronous Motor

,

300r/min Brushless Synchronous Motor

,

300r/min motor 10 kv

TMW 500-36/2600 10KV Brushless Synchronous Motor





TDMK(TMW) series of large-scale AC three-phase synchronous motors for mining mills comply with national standards such as JB/T1473-2000 "Technical Conditions for Large-scale Three-phase AC Synchronous Motors for Mining Mills". This series of motors adopts a steel plate welded structure, and the ventilation mode is open natural ventilation, and can also be made into a fully enclosed duct ventilation mode. The motor and the mill are connected by a coupling, which only bears torque, not axial force and radial force. It is recommended to use a pneumatic clutch coupling, which is conducive to starting with large loads. The seat type sliding bearing generally adopts the oil ring structure or the compound lubrication (with thin oil station) structure, depending on the specific structure and load. The seat type bearing is installed on the base plate with an insulating backing plate in the middle to prevent the generation of shaft current.
This series of products are widely used in the transmission of mine ball mills, rod mills, coal mills, etc.



TDMK(TMW) series TDMK500-36/2600 10KV motor features
The motor is horizontal.
Cylindrical shaft extension, other forms of drawing (without key) are optional.
Plate welding base, optional box type base.
Adopt sliding bearing (end cover type or seat type), compound lubrication (or compound lubrication + high pressure oil top).
The slip ring is located outside the bearing at the non-shaft extension end, and there is an encoder installation position at the end of the rotating shaft. The slip ring cover is fixed to the end cover.
Viewed from the shaft extension end, the main junction box, the measuring junction box, and the heater wiring are located on the right side of the machine base (or the left side according to user requirements).
An air-water cooler with a cooling fan is installed on the top (or side) of the box-type frame.
With mounting bottom plate and anchor bolts, optional with mounting bottom plate and anchor bolts, the order contract needs special instructions.
