Place of Origin: | China |
Brand Name: | THMotor |
Certification: | CE |
Model Number: | T 7000 |
Minimum Order Quantity: | 1set |
---|---|
Price: | USD 20000-100000 |
Packaging Details: | Seaworthy packing |
Delivery Time: | 70DAYS |
Supply Ability: | 100SET/YEAR |
Power Range: | 1000-12000kw | Voltage: | 3kv-11kv |
---|---|---|---|
Speed Range: | 1000rpm-1500rpm | Poles: | 4,6 |
Frequency: | 50hz,60hz | Cooling Method: | IC37,IC81W |
IP Rate: | IP44,IP54,IP55 | ||
Highlight: | flame proof AC Synchronous Motor,Driving Compressors AC Synchronous Motor,flame proof 10 kv electric motor |

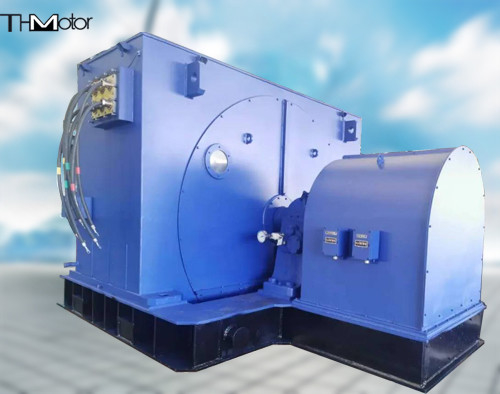

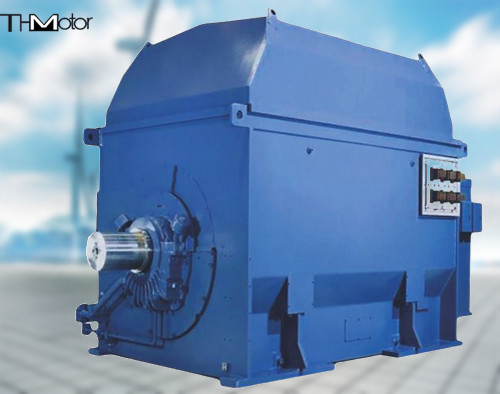

TK4000KW AC Synchronous Motor For Driving Compressors
Synchronous motor series (JB/DQ3449)
TK series synchronous motors are suitable for driving reciprocating compressors.
both With shaft and seat bearing (IM7300) and without shaft and seat bearing(IM5710) two structures. The cooling method is generally open type (IC01) and other types:
Such as with air-water cooler, or duct ventilation. The enclosure protection grade is generally IP00.
It can also be made into other grades such as IP23, and the insulation grade is B or F.
Excitation mode is static thyristor excitation
Power range: 250-10000kW
Voltage: 380V, 3000V, 6000V, 10000V
Speed: 150-1000r/min
Quality/safety certification: ISO9001/CE
frame(center high):630~750mm
power:0.45MW~50MW
voltage:3KV~15KV
frequency:50,60HZ
poles:2~40P
cooling method:IC01,IC611,IC81W,IEC,GB
explosive-proof:flame proof
