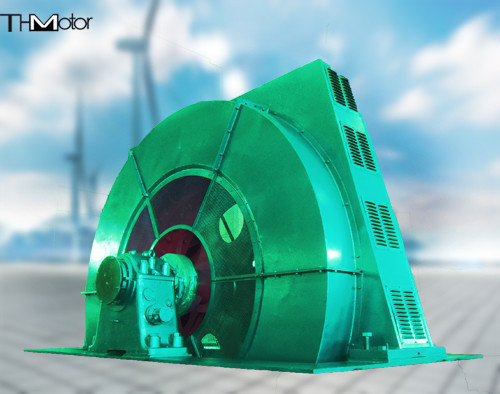

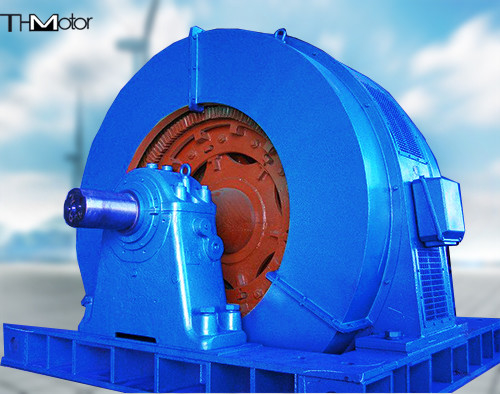

Taw 8000kw Explosion Proof AC Synchronous Motor 18 Poles For Chemical Industry

Taw 8000kw Explosion Proof AC Synchronous Motor 18 Poles For Chemical Industry

  • Taw 8000kw Explosion Proof AC Synchronous Motor 18 Poles For Chemical Industry
  • Taw 8000kw Explosion Proof AC Synchronous Motor 18 Poles For Chemical Industry
Taw 8000kw Explosion Proof AC Synchronous Motor 18 Poles For Chemical Industry
Product Details:
Place of Origin: China
Brand Name: THMotor
Certification: CE
Model Number: T 7000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
Contact Now
Detailed Product Description
Product Name: Taw 8000kw 18poles Ac Synchronous Motor Explosion-Proof Motor For Chemical Industry Power Range: 1000-12000kw
Voltage: 3kv-11kv Speed Range: 1000rpm-1500rpm
Poles: 4,6 Frequency: 50hz,60hz
Cooling Method: IC37,IC81W IP Rate: IP44,IP54,IP55
High Light:

Taw 8000kw AC Synchronous Motor

,

Explosion Proof Motor 18 poles

,

Taw 8000kw Explosion Proof Motor

Taw 8000kw 18poles Ac Synchronous Motor Explosion-Proof Motor For Chemical Industry





TAW series increased safety type brushless excitation synchronous motor
Power range: 250kW~10000kW
Number of poles: 12 to 30. If there are special needs, it can be implemented according to the design.
Explosion-proof mark: ExeIICT3 Gc
Rated voltage: 6000V, 10000V, etc.
Technical features: high efficiency and energy saving, beautiful appearance, low vibration, low noise, high protection level, high safety, convenient use and maintenance.
Application fields: drive large-scale mechanical equipment such as reciprocating compressors, widely used in petroleum, petrochemical, chemical, fertilizer, coal, natural gas and other industries, working in the explosive gas environment of "2" zone.





Technical Data(6kv)

Power 1800-12000kw IP  IP44
Ist 4.55-6.05 Cooling Method IC91W
Voltage 380-11000v Poles 10,12,16,32
Frequency 50HZ/60HZ Insulation class F;H
Speed 150/500RPM Efficiency 96.4-97.7%
P.F. 0.84-0.85 AT -15-40℃



Technical Data(10kv)

Power 2000-36000kw IP  IP44
Ist 4.69-6.65 Cooling Method IC91W
Voltage 380-11000v Poles 10,12,16,32
Frequency 50HZ/60HZ Insulation class F;H
Speed 150/500RPM Efficiency 96.4-97.7%
P.F. 0.84-0.85 AT -15-40℃
