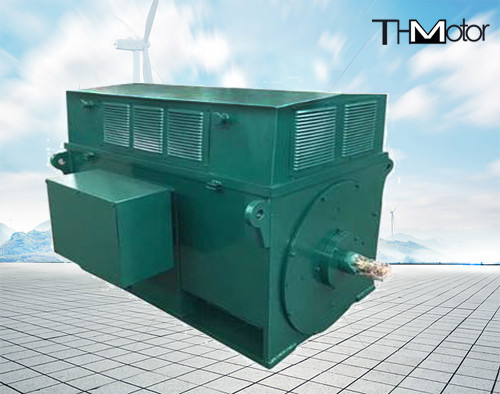

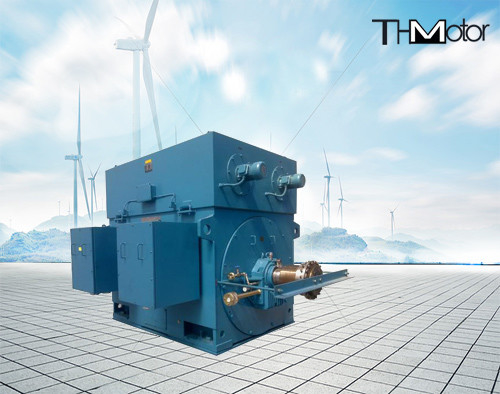

IMB3 IMB35 Three Phase General Electric Induction Motor High Voltage Electric Motors IEC GB

IMB3 IMB35 Three Phase General Electric Induction Motor High Voltage Electric Motors IEC GB

  • IMB3 IMB35 Three Phase General Electric Induction Motor High Voltage Electric Motors IEC GB
  • IMB3 IMB35 Three Phase General Electric Induction Motor High Voltage Electric Motors IEC GB
IMB3 IMB35 Three Phase General Electric Induction Motor High Voltage Electric Motors IEC GB
Product Details:
Place of Origin: China
Brand Name: THMotor
Certification: CE
Model Number: Y800-4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
Contact Now
Detailed Product Description
Product Name: Ykk500-6 900kw High Voltage Electric Motors Electric Induction Motors Power Range: 400-6000kw
Voltage: 6000v-11000v Speed Range: 100rpm-3600rpm
Frequency: 50hz,60hz Cooling Method: IC01、IC411、IC611
IP Rate: IP23, IP54,IP55 Poles: 2,4,6,8,12,16
Insulation Class: F;H Efficiency: 84-94.5%
highlight:

general electric induction motor IEC GB

,

IMB3 IMB35 three phase induction motor

,

three phase induction motor IEC GB

Ykk500-6 900kw High Voltage Electric Motors Electric Induction Motors​



Product overview



YK series high-speed high-voltage motors are large three-phase asynchronous motors. The working environment temperature is 0C~40℃, and the altitude does not exceed 90%. The insulation grade of the motor winding is F grade. Reliable performance in a variety of conditions. The windings are soaked in VPI vacuum and have a long service life. The allowable temperature rise of the motor is 80K.


The motor has two shaft extension ends, and either end can be used to drive the supporting machinery. An absolute current is generated between the bearing at one end of the motor and the base plate.


This series of products are made of exquisite materials and well-made, with high efficiency and energy saving, low noise, low vibration, reliable operation, and convenient use, installation and maintenance.

Model description
The motor model is composed of three parts: product code, specification code, and environmental code. The product code is represented by the motor series code, and the meanings are as follows:
YK-large high-speed high-voltage three-phase asynchronous motor.
The specification code is composed of power, number of poles, and outer diameter of stator punching pieces.

The main technical parameters
Rated voltage: 3KV , 6KV , 10KV
Rated frequency: 50HZ/60hz
Insulation class: F class (temperature rise is assessed according to B class)
Working system: S1 continuous working system
Ambient temperature: -15℃~+40℃
Altitude: no more than 1000 meters

Frame number: 355-1000
Power: 160KW-2500KW
Number of poles: 2P, 4P, 6P, 8P, 10P, 12P
Voltage: 6KV, 10KV or other different voltages
Protection class; IP44, IP54, IP55
Insulation class: F, H
Installation method: IMB3, IMB35



Product specifications



frame(center high) 355/500/630/710/800/1000 IP level IP54/IP44/IP55
Rated Power  160kw - 2500KW,3500KW Cooling Method) IC611
Voltage 3KV, 6KV, 10KV Poles 2,4,6,8,10,12
Frequency 50HZ/60HZ Insulation class F;H
Speed 500/590/740/990/1500/3000RPM Efficiency 84-94.5%
P.F.power factor 0.84-0.85 AT(Ambient Temp) -15-40℃
Installation method IMB3,IMB5,IMB35 Standard IEC, GB



Each series of motors

IMB3 IMB35 Three Phase General Electric Induction Motor High Voltage Electric Motors IEC GB 0



Our aftersales service

IMB3 IMB35 Three Phase General Electric Induction Motor High Voltage Electric Motors IEC GB 1



Product packaging

IMB3 IMB35 Three Phase General Electric Induction Motor High Voltage Electric Motors IEC GB 2



Certifications

IMB3 IMB35 Three Phase General Electric Induction Motor High Voltage Electric Motors IEC GB 3
