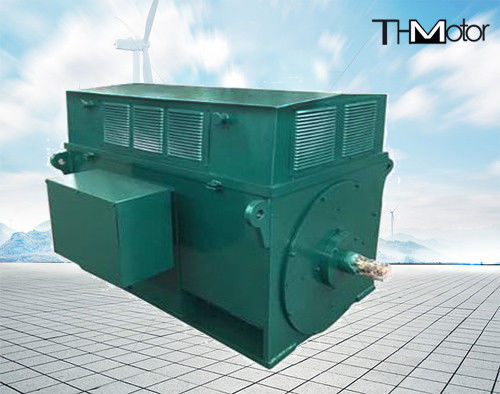

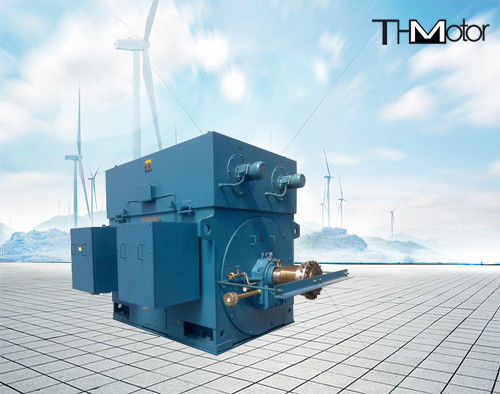

YKK500-6 900KW High Voltage Electric Motor Three Phase Induction Motor 6000V-11000V with IC611 Cooling

Product Details:

Place of Origin:	China
Brand Name:	THMotor
Certification:	CE
Model Number:	Y800-4

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD 20000-100000
Packaging Details:	Seaworthy packing
Delivery Time:	70DAYS
Supply Ability:	100SET/YEAR

Contact Now

Detailed Product Description

Product Name:	Ykk500-6 900kw High Voltage Electric Motors Electric Induction Motors	Power Range:	400-6000kw
Voltage:	6000v-11000v	Speed Range:	100rpm-3600rpm
Frequency:	50hz,60hz	Cooling Method:	IC01、IC411、IC611
IP Rate:	IP23, IP54,IP55	Poles:	2,4,6,8,12,16
Insulation Class:	F;H	Efficiency:	84-94.5%
Highlight:	general electric induction motor IEC GB , IMB3 IMB35 three phase induction motor , three phase induction motor IEC GB

YKK500-6 900kW High Voltage Electric Induction Motors

Product Overview

YK series high-speed high-voltage motors are large three-phase asynchronous motors designed for reliable performance in various industrial conditions. These motors feature VPI vacuum impregnated windings for extended service life and F-class insulation with temperature rise limited to 80K.

The motor includes dual shaft extension ends, allowing either end to drive supporting machinery. An absolute current is generated between the bearing at one end and the base plate.

Constructed with premium materials and precision engineering, these motors deliver high efficiency, energy savings, low noise and vibration levels, reliable operation, and easy installation and maintenance.

Model Description

Motor models consist of three components: product code, specification code, and environmental code.

YK - Large high-speed high-voltage three-phase asynchronous motor
Specification code includes power rating, number of poles, and stator punching outer diameter

Technical Parameters

Rated voltage: 3KV, 6KV, 10KV
Rated frequency: 50Hz/60Hz
Insulation class: F class (temperature rise assessed per B class)
Working system: S1 continuous duty
Ambient temperature: -15℃ to +40℃
Altitude: Up to 1000 meters

Product Specifications

Frame (Center Height)	355/500/630/710/800/1000	IP Level	IP54/IP44/IP55
Rated Power	160kW - 2500kW, 3500kW	Cooling Method	IC611
Voltage	3KV, 6KV, 10KV	Poles	2,4,6,8,10,12
Frequency	50Hz/60Hz	Insulation Class	F; H
Speed	500/590/740/990/1500/3000 RPM	Efficiency	84-94.5%
Power Factor	0.84-0.85	Ambient Temperature	-15℃ to 40℃
Installation Method	IMB3, IMB5, IMB35	Standard	IEC, GB
