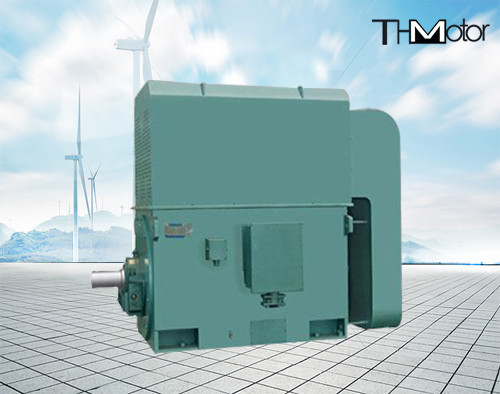

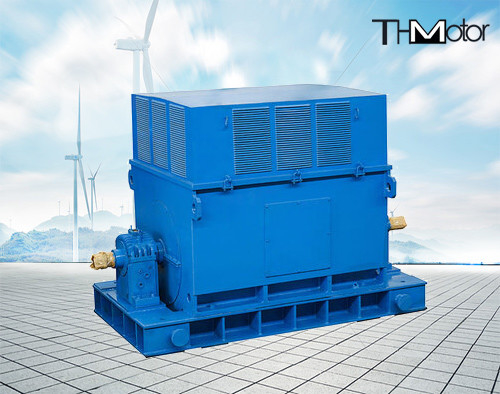

YK5000-2 High Voltage Motor 5000kW 10kV 50Hz

YK5000-2 High Voltage Motor 5000kW 10kV 50Hz

Product Details:
Place of Origin: China
Brand Name: THMotor
Certification: CE
Model Number: Y800-4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
Contact Now
Detailed Product Description
Product Name: Yk5000-2 High Speed Motor 50hz 5000kw 10kv High Voltage Electric Motors Power Range: 400-6000kw
Voltage: 6000v-11000v Speed Range: 100rpm-3600rpm
Frequency: 50hz,60hz Cooling Method: IC01、IC411、IC611
IP Rate: IP23, IP54,IP55 Poles: 2,4,6,8,12,16
Highlight:

50hz 5000kw High Voltage Electric Motors

,

YK5000-2 High Speed Motor

,

50hz 5000kw High Speed Motor

YK5000-2 High Speed Motor 50Hz 5000kW 10kV High Voltage Electric Motors
Key Specifications
Attribute Value
Power Range 400-6000kW
Voltage 6000V-11000V
Speed Range 100rpm-3600rpm
Frequency 50Hz, 60Hz
Cooling Method IC01, IC411, IC611
IP Rating IP23, IP54, IP55
Poles 2, 4, 6, 8, 12, 16
Product Overview

YK series high-speed high-voltage motors are large three-phase asynchronous motors designed for reliable performance in demanding industrial applications. The motors feature F-grade insulation and VPI vacuum impregnated windings for extended service life.

  • Operating temperature range: 0°C to 40°C
  • Maximum altitude: 90% of standard
  • Maximum temperature rise: 80K
  • Dual shaft extension ends for flexible installation
  • High efficiency with energy-saving design
  • Low noise and vibration operation
Technical Specifications
Frame (Center High) 355/500/630/710/800/1000
Rated Power 160kW - 2500kW, 3500kW
Voltage 3KV, 6KV, 10KV
Frequency 50Hz/60Hz
Speed 500/590/740/990/1500/3000 RPM
Power Factor 0.84-0.85
Efficiency 84-94.5%
Cooling Method IC611
Insulation Class F; H
Ambient Temperature -15°C to 40°C
Installation Method IMB3, IMB5, IMB35
Standards IEC, GB
Construction Features
  • Box-type structure with welded steel frame for high rigidity and light weight
  • External press-fit stator with F-class insulation and anti-corona materials
  • Vacuum pressure impregnated (VPI) treatment for superior insulation
  • Seat-type sliding bearings with mounting base
  • High-efficiency axial flow fan with directional ventilation
  • Dual cylindrical shaft extensions for flexible installation
  • Sealed main junction box (IP54 protection)
