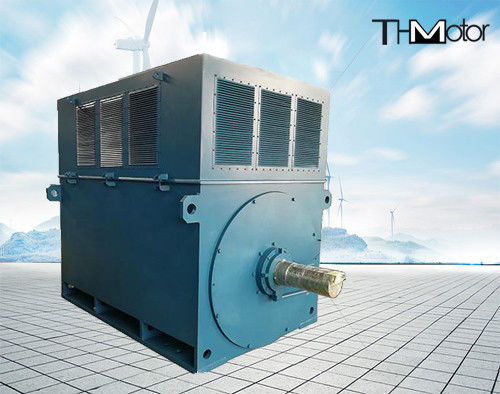

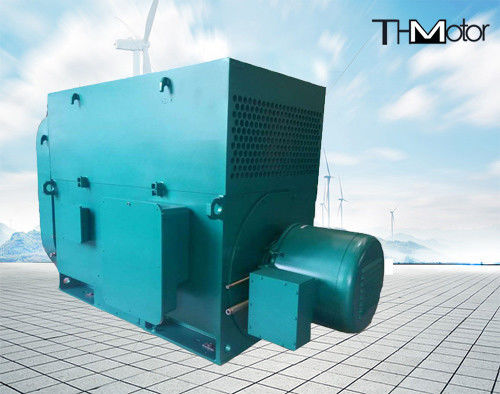

YK3200-2 3200KW 10KV 50HZ High Voltage Electric Motor with IC611 Cooling for Blast Blower Applications

Product Details:

Place of Origin:	China
Brand Name:	THMotor
Certification:	CE
Model Number:	Y800-4

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD 20000-100000
Packaging Details:	Seaworthy packing
Delivery Time:	70DAYS
Supply Ability:	100SET/YEAR

Contact Now

Detailed Product Description

Product Name:	YK3200-2 3200KW 10KV 50HZ High Voltage Electric Motors For Blast Blower	Power Range:	400-6000kw
Voltage:	3KV, 6KV, 10KV	Speed Range:	100rpm-3600rpm
Frequency:	50hz,60hz	Cooling Method:	IC611
IP Rate:	IP23, IP54,IP55	Poles:	2,4,6,8,12,16
Highlight:	Blast Blower ac asynchronous motor , ac asynchronous motor 10KV 50HZ , hv electric motor 10KV 50HZ

YK3200-2 3200KW 10KV 50HZ High Voltage Electric Motors

Designed specifically for blast blower applications, these high-performance AC asynchronous HV electric motors deliver reliable operation in demanding industrial environments.

Product Overview

YK series high-speed high-voltage motors are large three-phase asynchronous motors engineered for exceptional performance. Operating in temperatures from 0°C to 40°C at altitudes up to 90%, these motors feature F-class insulation and VPI vacuum-impregnated windings for extended service life. With an allowable temperature rise of 80K, they maintain reliable performance across various operating conditions.

The motor design includes dual shaft extension ends, allowing either end to drive supporting machinery. An absolute current is generated between the bearing at one end of the motor and the base plate for optimal performance.

Available with enclosure protection grades including IP23, IP44, IP54, and IP55, these motors offer cooling methods such as IC01, IC611, and IC81W with IMB3 installation. Custom protection types, cooling methods, and installation configurations can be manufactured according to specific user requirements.

Specialized variants include wet tropical type, dry tropical type, outdoor type, outdoor anti-corrosion type, and outdoor wet tropical type configurations. These motors are ideal for driving various industrial machinery including compressors, pumps, crushers, cutting machine tools, and transportation equipment.

Technical Specifications

Frame (Center High)	500/630/710/800	IP Level	IP54/IP44/IP55
Rated Power	220KW - 2500KW, 3500KW	Cooling Method	IC611
Voltage	3KV, 6KV, 10KV	Poles	2,4,6,8,10,12
Frequency	50HZ/60HZ	Insulation Class	F
Speed	500/590/740/990/1500/3000 RPM	Efficiency	84-94.5%
Power Factor	0.84-0.85	Ambient Temperature	-15°C to 40°C
