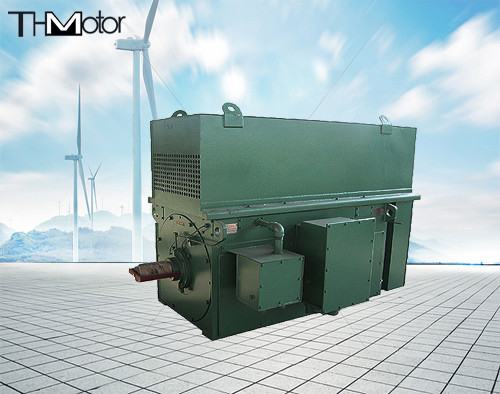

Y900 Y1000 Coal Mining Three Phase Asynchronous High Voltage Electric Motors 900kw 1250kw

Y900 Y1000 Coal Mining Three Phase Asynchronous High Voltage Electric Motors 900kw 1250kw

  • Y900 Y1000 Coal Mining Three Phase Asynchronous  High Voltage Electric Motors 900kw 1250kw
  • Y900 Y1000 Coal Mining Three Phase Asynchronous  High Voltage Electric Motors 900kw 1250kw
Y900 Y1000 Coal Mining Three Phase Asynchronous  High Voltage Electric Motors 900kw 1250kw
Product Details:
Place of Origin: China
Brand Name: THMotor
Certification: CE
Model Number: Y800-4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
Contact Now
Detailed Product Description
Product Name: Y900 Y1000 900kw 1250kw 1600kw High Voltage Electric Motors For Coal Mining Voltage: 6000v-11000v
Speed Range: 100rpm-3600rpm Frequency: 50hz,60hz
Cooling Method: IC01、IC411、IC611 IP Rate: IP23, IP54,IP55
Poles: 2,4,6,8,12,16 Standard: IEC, GB
High Light:

Y900 Y1000 motor high voltage

,

Coal Mining three phase asynchronous motor 900kw

,

three phase asynchronous motor 1250kw

Y900 Y1000 900kw 1250kw 1600kw High Voltage Electric Motors For Coal Mining



Product overview



This series of products adopts new technologies, new materials, new processes in the 1990s, sophisticated material selection, and sophisticated manufacturing. It has the advantages of high efficiency, energy saving, low noise, low vibration, light weight, reliable performance, and convenient installation and maintenance.


This series of motors complies with the national standard GB755 "Rating and Performance of Rotating Electric Machines", the industry standard JB/T7593 "Technical Conditions for Y Series High Voltage Three-phase Asynchronous Motors (Frame No. 355-630)", JB/T10315.1 "YKS, YKS- W, YQF series high-voltage three-phase asynchronous motor technical conditions (frame size 355-630)", JB/T10315.2 "YKK, YKK-W series high-voltage three-phase asynchronous motor technical conditions (frame size 355-630)", The enterprise standard "10KV three-phase asynchronous motor (frame size 450-800) technical conditions" and IEC international standards, the mechanical dimensions and tolerances of each component meet the corresponding national standards and international standards.


The enclosure protection grades of this series of motors are IP23, IP44, IP54, IP55, etc. The cooling methods include IC01, IC611 and IC81W, etc., and the installation method is IMB3. Corresponding protection types, cooling methods and installation methods can also be made according to user requirements.



The enclosure protection grades of this series of motors are IP23, IP44, IP54, IP55 and IP56 according to the standards of GB4942.1 and IEC34-5 "Enclosure protection grades for rotating electrical machines". IP23 motors can be made into IP44 (duct ventilation) or IPW24 (climate protection type) according to user requirements. If users need other protection grades, they can be supplied separately.


The basic conditions for the normal operation of the motor:
(1) The altitude does not exceed 1000m;
(2) The maximum ambient air temperature does not exceed 40°C; the minimum ambient air temperature is 5°C;
(3) For YKS and YRKS series motors, the temperature of the cooling water at the cooling inlet should not exceed 33°C, and the minimum temperature should be 5°C;
(4) The average maximum relative humidity of the wettest month is 90% and the average minimum temperature of the month is not higher than 25℃;
(5) The power frequency is 50Hz±l%;
(6) The variation range of the working voltage is not more than ±5% of the rated voltage;
(7) The motor rating is continuous duty S1.



Product specifications



frame(center high) 500/630/710/800 IP level IP23/IP54/IP44/IP55
Rated Power  220kw - 2500KW,3500KW Cooling Method) IC611
Voltage 3KV, 6KV, 10KV Poles 2,4,6,8,10,12
Frequency 50HZ/60HZ Insulation class F
Speed 500/590/740/990/1500/3000RPM Efficiency 84-94.5%
Standard IEC, GB AT(Ambient Temp) -15-40℃



Each series of motors

Y900 Y1000 Coal Mining Three Phase Asynchronous  High Voltage Electric Motors 900kw 1250kw 0



Our aftersales service

Y900 Y1000 Coal Mining Three Phase Asynchronous  High Voltage Electric Motors 900kw 1250kw 1



Product packaging

Y900 Y1000 Coal Mining Three Phase Asynchronous  High Voltage Electric Motors 900kw 1250kw 2



Certifications

Y900 Y1000 Coal Mining Three Phase Asynchronous  High Voltage Electric Motors 900kw 1250kw 3
