|Place of Origin:
|Minimum Order Quantity:
|Yx355～630 6kv/Y, Yx 400～630 10kv High-Voltage Electric Motors
YX 6kv 10kv high rpm electric motor,
high rpm electric motor IC611,
6kv 3 phase asynchronous motor IC611

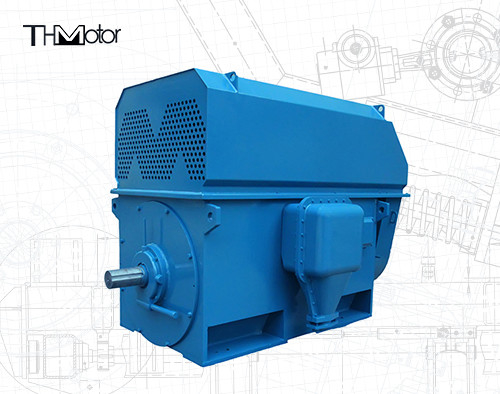

Yx355～630 6kv/Y, Yx 400～630 10kv High-Voltage Electric Motors
Yx355～630 6kv/Y, Yx 400～630 10kv High-Voltage Electric Motors is our company according to JB/T10446-2014 "Y, YX series three-phase asynchronous motor grade energy efficiency classification (frame size 355～630)" and JB /T10446-2014 "Y series, YX series 10kV three-phase asynchronous motor grade energy efficiency classification (frame size 400 ~ 630)" research and development of new products. The design of this series of motors has the characteristics of high starting point, high requirements and high reliability. The mechanical structure adopts a high-reliability structure that has been verified for a long time in China. The insulation system also adopts a high-standard and high-requirement system to ensure the insulation performance of the motor. Long-term operation without aging, the motor life is greatly improved, and the performance parameters exceed the requirements of the corresponding national standards.
The energy efficiency index of Y series 6kV and 10kV high-voltage three-phase asynchronous motors conforms to the level 3 standard of GB 30254-2013; the energy efficiency index of YX series 6kV and 10kV high-voltage three-phase asynchronous motors conforms to the level 2 standard of GB 30254-2013. The motor adopts the internationally popular unit combination structure (also known as box structure), and the base is welded with steel plates, which is light in weight and good in rigidity. It is determined to adopt an external press-fitting structure, with reliable fixing and binding at the ends. During the manufacturing process, it has undergone multiple inter-turn impulse withstand voltage tests and ground withstand voltage tests, and adopts advanced vacuum pressure impregnation solvent-free paint process (VPI). ) treatment, the motor adopts the F-class insulation structure, and the temperature rise is assessed according to the B-class. The squirrel cage rotor is made of cast aluminum rotor or copper bar rotor, and the bearing has two types of rolling bearing and sliding bearing. It depends on the power and speed of the motor, and can also be determined according to the user's requirements. Motors with other voltages and frequencies can also be provided on request.
This series of medium-sized high-voltage motors has the advantages of high efficiency and energy saving, low noise, low vibration, reliable operation, convenient installation and maintenance, etc. It is suitable for driving various general machinery such as fans, compressors, water pumps, crushers, cutting machine tools, transportation machinery and other Equipment, used as prime mover in various industries such as mining, machinery industry, petrochemical industry, power plant, etc., the motor used to drive blower, coal mill, rolling mill, hoist should indicate the purpose and technical requirements when ordering, A special design is adopted to ensure the reliable operation of the motor.
|220kw - 2500KW,3500KW
|3KV, 6KV, 10KV
Each series of motors
