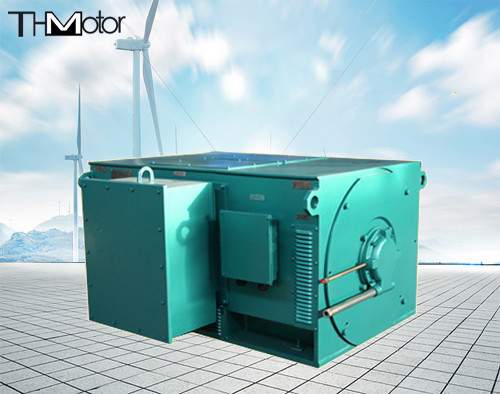

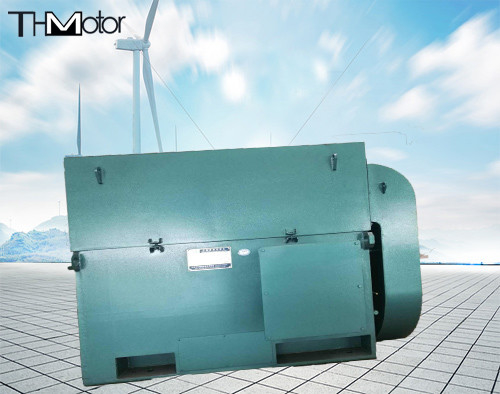

Y900 High Voltage Electric Motors For Mining Industry 10kv 50hz

Y900 High Voltage Electric Motors For Mining Industry 10kv 50hz

  • Y900 High Voltage Electric Motors For Mining Industry 10kv 50hz
  • Y900 High Voltage Electric Motors For Mining Industry 10kv 50hz
Y900 High Voltage Electric Motors For Mining Industry 10kv 50hz
Product Details:
Place of Origin: China
Brand Name: THMotor
Certification: CE
Model Number: Y800-4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
Contact Now
Detailed Product Description
Product Name: Y900 3150kw 10kv 50hz High Voltage Electric Motors For Mining Industry Power Range: 400-6000kw
Voltage: 6000v-11000v Speed Range: 100rpm-3600rpm
Frequency: 50hz,60hz Cooling Method: IC01、IC411、IC611
IP Rate: IP23, IP54,IP55 Poles: 2,4,6,8,12,16
High Light:

Y900 High Voltage Electric Motors

,

Y900 mining Electric Motor

,

mining Electric Motor 10kv 50hz

Y900 3150kw 10kv 50hz High Voltage Electric Motors For mining industry







Model description
According to the provisions of GB4831, the motor model is composed of two parts, product code and specification code. The product code is represented by the motor series code, and the meanings are as follows:
Y—— three-phase asynchronous motor with squirrel cage rotor;
YKS—— enclosed squirrel cage rotor three-phase asynchronous motor with air-water cooler;
YQF——Climate-protected squirrel-cage rotor three-phase asynchronous motor.

This series of motors can also be made into wet tropical type, dry tropical type, outdoor type, outdoor anti-corrosion type and outdoor wet tropical type.





frame(center high) 500/630/710/800 IP level IP54/IP44/IP55
Rated Power  220kw - 2500KW,3500KW Cooling Method) IC611
Frequency 50HZ/60HZ Insulation class F
Speed 500/590/740/990/1500/3000RPM Efficiency 84-94.5%
P.F.power factor 0.84-0.85 AT(Ambient Temp) -15-40℃



This series of motors can be used to drive various general machinery, such as compressors, water pumps, crushers, cutting machine tools, transportation machinery and other mechanical equipment.

Ideal for driving all kinds of general machinery, such as water pump, fan, compressor, crusher and etc.

Frame Size 355 400 450 500 560 630 710 800 900 1000
Power range kW 185~315 185~500 185~800 220~1250 355~1800 560~2500 500~3550 800~5000 1250~7100 1800~8000
Poles 2.4 2.4.6.8

2.4.6.

8.10.12

2.4.6.

8.10.12

2.4.6.8

10.12

2.4.6.8

10.12

4.6.8.

10.12.16

4.6.8.

10.12.16

4.6.8.

10.12.16

6.8.10

.12.16
