2500kw Three Phase Asynchronous High Voltage Electric Motors For Blower 10kv 50hz

2500kw Three Phase Asynchronous High Voltage Electric Motors For Blower 10kv 50hz

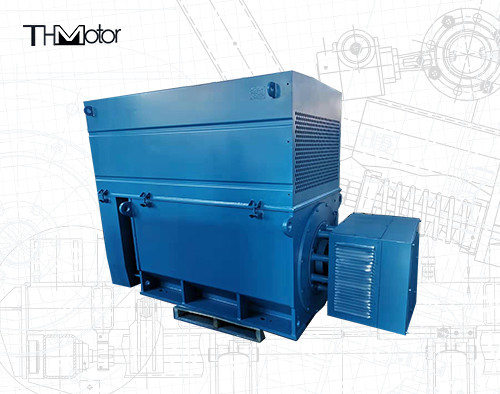

  • 2500kw Three Phase Asynchronous  High Voltage Electric Motors For Blower 10kv 50hz

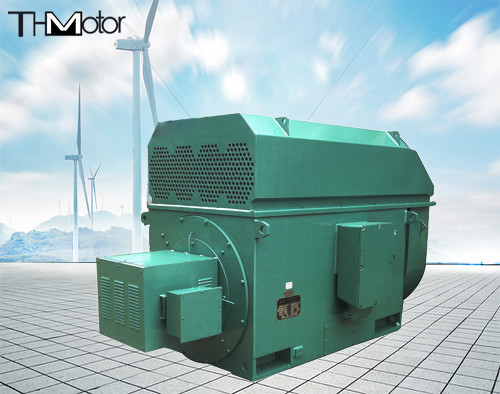

  • 2500kw Three Phase Asynchronous  High Voltage Electric Motors For Blower 10kv 50hz

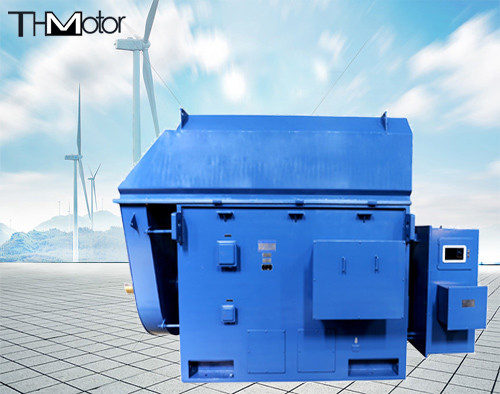

  • 2500kw Three Phase Asynchronous  High Voltage Electric Motors For Blower 10kv 50hz
2500kw Three Phase Asynchronous  High Voltage Electric Motors For Blower 10kv 50hz
Product Details:
Place of Origin: China
Brand Name: THMotor
Certification: CE
Model Number: Y800-4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
Contact Now
Detailed Product Description
Product Name: Y710 Squirrel Cage High Voltage Electric Motors Rolling Bearing Ip54 Ip55 Ic611 Power Range: 400-6000kw
Voltage: 6000v-11000v Speed Range: 100rpm-3600rpm
Frequency: 50hz,60hz IP Rate: IP23, IP54,IP55
Poles: 2,4,6,8,12,16 P.F.power Factor: 0.84-0.85
High Light:

2500kw three phase asynchronous motors

,

three phase asynchronous motors 10kv 50hz

,

Blower asynchronous motor 10kv 50hz

Y630 2500kw 10kv 50hz High Voltage Electric Motors Rolling Bearing For Blower



Product overview



Y series high voltage 6KV, 10KV three-phase asynchronous motors are produced according to the technical conditions of JB/T7593-94 and JB/T10446-2004, the protection level is IP23 (see GB492.1), and the cooling method is IC01, IC11, IC12 or IC31 (See GB/T1993).
Y series 6KV, 10KV high-voltage three-phase asynchronous motors are squirrel-cage rotor asynchronous motors. The protection level of the motor is IP23, and the cooling method is IC01.


This motor has the advantages of high efficiency, energy saving, low noise, low vibration, light weight, reliable performance, convenient installation and maintenance, etc.


This series of motors can be used to drive various machinery, such as fans, compressors, water pumps, crushers, cutting machine tools and other equipment, and can be used as prime movers in coal mines, machinery industry, power plants and various industrial and mining enterprises. use.


The structure and installation type of this series of motors are IMB3, the rating is based on continuous duty (S1), the rated frequency of the motor is 50HZ, the rated voltage is 6KV, 10KV, other voltage levels or special requirements, when ordering can be negotiated with the user.



Rated power: 220kw - 3150KW
Rated voltage: 6KV, 10KV
Rated speed: 500RPM/590RPM/740RPM/990RPM/1500RPM/3000RPM
Protection class: IP23
Cooling method: IC01
Insulation class: F
Working system: S1
Packing type: wicker box/export fumigated wooden box


Product specifications



frame(center high) 500/630/710/800 IP level IP54/IP44/IP55
Rated Power  220kw - 2500KW,3500KW Cooling Method) IC611
Voltage 3KV, 6KV, 10KV Poles 2,4,6,8,10,12
Frequency 50HZ/60HZ Insulation class F
P.F.power factor 0.84-0.85 AT(Ambient Temp) -15-40℃



Each series of motors

2500kw Three Phase Asynchronous  High Voltage Electric Motors For Blower 10kv 50hz 0



Our aftersales service

2500kw Three Phase Asynchronous  High Voltage Electric Motors For Blower 10kv 50hz 1



Product packaging

2500kw Three Phase Asynchronous  High Voltage Electric Motors For Blower 10kv 50hz 2



Certifications

2500kw Three Phase Asynchronous  High Voltage Electric Motors For Blower 10kv 50hz 3
