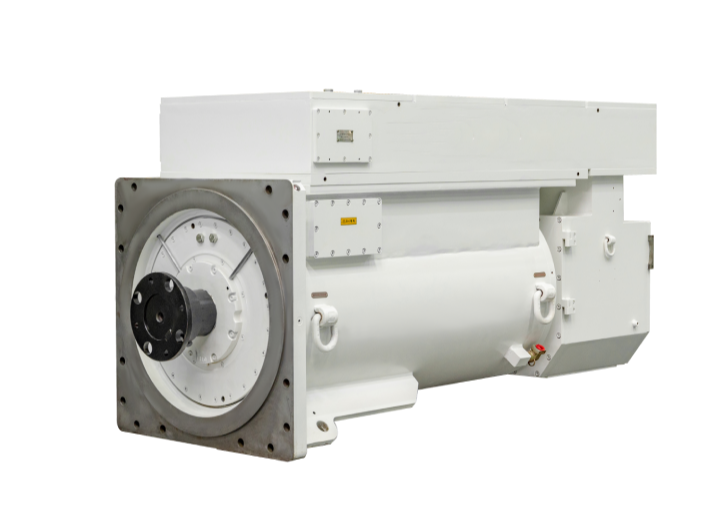

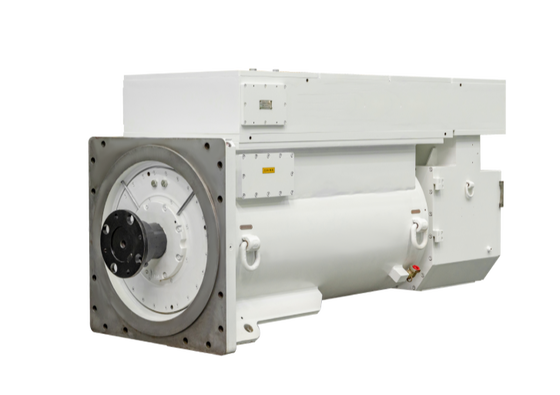

Permanent magnet synchronous VFD integrated motor with 200-1600kW power range IP66 protection and Ex db explosion proof

Permanent magnet synchronous VFD integrated motor with 200-1600kW power range IP66 protection and Ex db explosion proof

  • Permanent magnet synchronous VFD integrated motor with 200-1600kW power range IP66 protection and Ex db explosion proof
Permanent magnet synchronous VFD integrated motor with 200-1600kW power range IP66 protection and Ex db explosion proof
Product Details:
Contact Now
Detailed Product Description

Permanent Magnet Synchronous VFD Integrated Motor
Product Overview

Our permanent magnet synchronous VFD integrated motor features excellent performance, reliable operation, and convenient use and maintenance. It accurately adjusts rotating speed according to load demand, significantly improving energy utilization efficiency and reducing energy consumption.

The compact design saves installation space and facilitates site layout and maintenance. As an effective combination of mine frequency converter and motor, it is the preferred solution for underground coal mine drive systems, solving field application problems and long-distance drive challenges for various mine frequency converters.

Product Specifications
Cooling Method IC37W
Power Range 200-1600kW (544-2175Hp)
Speed Range 1500rpm
Frequency 5-60HZ
Voltage Range 1140-3300V
Protection Grade Up to IP66
Explosion Proof Type Ex db
Mounting Type IMB3, IMB5, IMB35
Bearing Rolling Bearing
Standards GB, IEC
Certifications CCC, MA
Product Features
Permanent magnet synchronous VFD integrated motor with 200-1600kW power range IP66 protection and Ex db explosion proof 0
Motor Series
Permanent magnet synchronous VFD integrated motor with 200-1600kW power range IP66 protection and Ex db explosion proof 1
Aftersales Service
Permanent magnet synchronous VFD integrated motor with 200-1600kW power range IP66 protection and Ex db explosion proof 2
Product Packaging
Permanent magnet synchronous VFD integrated motor with 200-1600kW power range IP66 protection and Ex db explosion proof 3
Certifications
