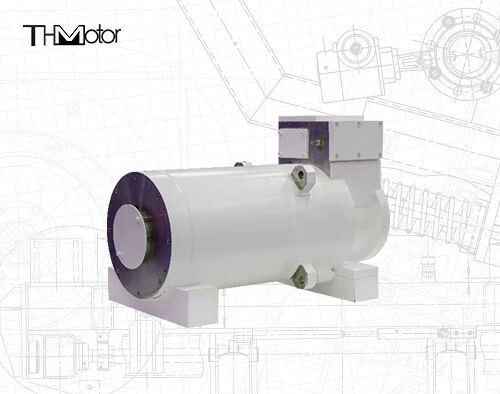

1000KW Three-phase asynchronous motor with IC37W cooling and IP56 protection for coal cutter applications

1000KW Three-phase asynchronous motor with IC37W cooling and IP56 protection for coal cutter applications

  • 1000KW Three-phase asynchronous motor with IC37W cooling and IP56 protection for coal cutter applications
1000KW Three-phase asynchronous motor with IC37W cooling and IP56 protection for coal cutter applications
Product Details:
Contact Now
Detailed Product Description
Highlight:

1000KW Three-phase asynchronous motor

,

IC37W High Voltage AC Motor

,

IP56 Induction Motor

1000KW Three-Phase Asynchronous Motor for Coal Cutter IC37W IP56
Product Overview
We provide custom product design and technical solutions for diverse industrial applications. This motor features a compact, space-saving design with a large junction box cavity for convenient wiring. It is engineered to drive cutting components, crushing mechanisms, coal cutters, pumping stations, and other shearer equipment in demanding mining environments.
Key Features
Superior Torque Characteristics:
  • High starting torque for demanding applications
  • Exceptional overload capacity
  • Optimized for harsh mining environments
High Reliability:
  • Advanced insulation system for extended service life
  • Robust bearing construction for durability
Advanced Cooling Design:
  • Water-cooled bearing system
  • High-efficiency heat exchange technology
  • Compact structure with high power density
Easy Maintenance:
  • Spacious terminal box for simplified wiring
  • Unique gland design reduces installation and maintenance time
Technical Specifications
Cooling Method IC37W
Power Range 20～1250kW
Speed Range 750-1500rpm
Frequency Fixed 50Hz/Variable 5-100Hz
Voltage Range 380-3300V
Protection Grade IP56, IP67
Explosion Proof Type Ex db I Mb
Rotor Material Copper bar
Mounting Type B10
Bearing Rolling bearing
Standards GB, IEC, EN
Certifications IEC Ex, ATEX, CCC, MA
Motor Series
1000KW Three-phase asynchronous motor with IC37W cooling and IP56 protection for coal cutter applications 0
After-Sales Service
1000KW Three-phase asynchronous motor with IC37W cooling and IP56 protection for coal cutter applications 1
Product Packaging
1000KW Three-phase asynchronous motor with IC37W cooling and IP56 protection for coal cutter applications 2
Quality Certifications
1000KW Three-phase asynchronous motor with IC37W cooling and IP56 protection for coal cutter applications 3
