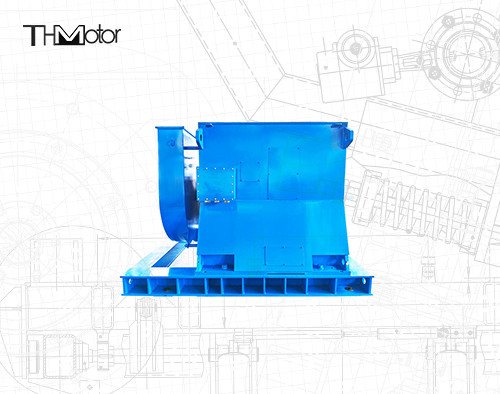

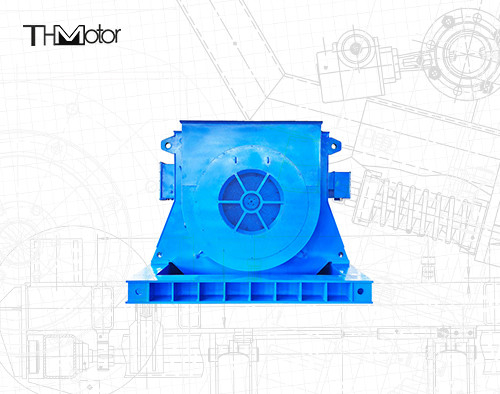

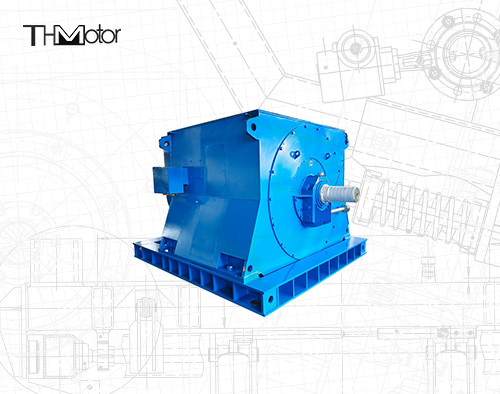

YRKK 1700KW Medium Voltage Wound Rotor Induction Motor

Product Details:

Place of Origin:	China
Brand Name:	THMotor
Certification:	CE
Model Number:	YRKK

Contact Now

Detailed Product Description

Power:	220kw - 2500KW	Voltage:	3KV, 6KV, 10KV
Speed:	500RPM/590RPM/740RPM/990RPM/1500RPM/3000RPM	Protection Degree:	IP44/IP54
Cooling Method:	IC611	Insulation Class:	F
Duty:	S1
Highlight:	1700KW Wound Rotor Induction Motor , YRKK Wound Rotor Induction Motor

YRKK 1700KW Medium Voltage Wound Rotor Induction Motor

Product overview

YRKK series (H355～1120) 6KV, 10KV high-voltage three-phase asynchronous motors are wound rotor asynchronous motors. The protection level of this series of motors is IP44 or IP54, and the cooling method is IC611, IC616, IC666 (see GB/T1993).
This series of motors has the advantages of high efficiency, energy saving, low noise, low vibration, light weight, reliable performance, convenient installation and maintenance, etc.These motors have been carefully designed for better and more reliable performance.

Product specifications

YRKK series 6000V Asynchronous Motor fechnical Data (Ensure Value)
Type	Rated Output (kW)	Rated Current (A)	Speed (r/min)	Efficiency %	Power Favtor (cosΦ)	Mmax Mn	Weight (Kg)
YRKK710-4	2240	257.0	1500	96.4	0.87	1.8	12200
YRKK710-4	2500	286.5	1500	96.5	0.87	1.8	12760
YRKK710-4	2800	320.6	1500	96.6	0.87	1.8	13130
YRKK710-4	3150	360.7	1500	96.6	0.87	1.8	14500
YRKK800-4	3550	408.2	1500	96.2	0.87	1.8	15670
YRKK800-4	4000	459.4	1500	96.3	0.87	1.8	16000
YRKK800-4	4500	515.8	1500	96.5	0.87	1.8	16780
YRKK710-6	1600	196.3	1000	94.5	0.83	1.8	12500
YRKK710-6	1800	220.6	1000	94.6	0.83	1.8	13000
YRKK710-6	2000	244.9	1000	94.7	0.83	1.8	13580
YRKK710-6	2240	273.9	1000	94.8	0.83	1.8	13800
YRKK800-6	2500	305.7	1000	94.8	0.83	1.8	16500
YRKK800-6	2800	342.1	1000	94.9	0.83	1.8	17200
YRKK800-6	3150	384.4	1000	95.0	0.83	1.8	18500
YRKK800-6	3550	432.8	1000	95.1	0.83	1.8	19230
YRKK710-8	1400	176.9	750	94.0	0.81	1.8	12000
YRKK710-8	1600	202.0	750	94.1	0.81	1.8	12500
YRKK710-8	1800	227.0	750	94.2	0.81	1.8	13120
YRKK800-8	2000	252.0	750	94.3	0.81	1.8	13760
YRKK800-8	2240	281.9	750	94.4	0.81	1.8	15900
YRKK800-8	2500	314.3	750	94.5	0.81	1.8	16670
YRKK900-8	2800	347.3	750	94.6	0.82	1.8	21500
YRKK900-8	3150	390.3	750	94.7	0.82	1.8	22900
YRKK900-8	3550	439.4	750	94.8	0.82	1.8	23450
YRKK710-10	1120	146.1	600	93.4	0.79	1.8	11580
YRKK710-10	1250	162.8	600	93.5	0.79	1.8	12560
YRKK710-10	1400	182.2	600	93.6	0.79	1.8	13455
YRKK800-10	1600	208.0	600	93.7	0.79	1.8	14570
YRKK800-10	1800	233.7	600	93.8	0.79	1.8	16500
YRKK800-10	2000	259.4	600	93.9	0.79	1.8	17200
YRKK900-10	2240	290.3	600	94.0	0.79	1.8	23500
YRKK900-10	2500	323.6	600	94.1	0.79	1.8	24580
YRKK900-10	2800	362.1	600	94.2	0.79	1.8	25000
YRKK900-10	3150	406.9	600	94.3	0.79	1.8	25980
YRKK1000-10	3550	452.3	600	94.4	0.80	1.8	29500
YRKK1000-10	4000	509.1	600	94.5	0.80	1.8	32340
YRKK1000-10	4500	572.2	600	94.6	0.80	1.8	33750

YRKKseries 10000V Asynchronous Motor fechnical Data (Ensure Value)
Type	Rated Output (kW)	Rated Current (A)	Speed (r/min)	Efficiency %	Power Favtor (cosΦ)	Mmax Mn	Weight (Kg)
YRKK710-4	2000	139	1500	95.5	0.87	1.8	13000
YRKK710-4	2240	156	1500	95.5	0.87	1.8	13500
YRKK710-4	2500	174	1500	95.6	0.87	1.8	14100
YRKK710-4	2800	194	1500	95.6	0.87	1.8	14650
YRKK800-4	3150	218	1500	95.7	0.87	1.8	15030
YRKK800-4	3550	246	1500	95.7	0.87	1.8	15540
YRKK800-4	4000	277	1500	95.8	0.87	1.8	16000
YRKK800-4	4500	312	1500	95.8	0.87	1.8	16450
YRKK710-6	1600	121	1000	94.2	0.81	1.8	12000
YRKK710-6	1800	136	1000	94.3	0.81	1.8	12500
YRKK710-6	2000	151	1000	94.4	0.81	1.8	13200
YRKK800-6	2240	167	1000	94.5	0.82	1.8	13850
YRKK800-6	2500	186	1000	94.6	0.82	1.8	14500
YRKK800-6	2800	208	1000	94.7	0.82	1.8	15100
YRKK900-6	3150	234	1000	94.8	0.82	1.8	22050
YRKK900-6	3550	263	1000	94.9	0.82	1.8	23580
YRKK900-6	4000	296	1000	95.0	0.82	1.8	24050
YRKK710-8	1120	86	750	93.5	0.80	1.8	12600
YRKK710-8	1250	96	750	93.6	0.80	1.8	13000
YRKK710-8	1400	108	750	93.7	0.80	1.8	13500
YRKK710-8	1600	123	750	93.8	0.80	1.8	14200
YRKK 800-8	1800	138	750	93.9	0.80	1.8	16200
YRKK800-8	2000	154	750	94.0	0.80	1.8	17500
YRKK800-8	2240	170	750	94.1	0.81	1.8	19550
YRKK900-8	2500	189	750	94.2	0.81	1.8	24200
YRKK900-8	2800	212	750	94.3	0.81	1.8	27500
YRKK1000-8	3150	238	750	94.4	0.81	1.8	29200
YRKK1000-8	3550	268	750	94.5	0.81	1.8	29890
YRKK1000-8	4000	301	750	94.6	0.81	1.8	30280
YRKK710-10	1000	81	600	93.1	0.77	1.8	12250
YRKK710-10	1120	90	600	93.2	0.77	1.8	12850
YRKK710-10	1250	100	600	93.3	0.77	1.8	13500
YRKK800-10	1400	111	600	93.4	0.78	1.8	14200
YRKK800-10	1600	127	600	93.5	0.78	1.8	16000
YRKK800-10	1800	142	600	93.6	0.78	1.8	21500
YRKK900-10	2000	158	600	93.7	0.78	1.8	22050
YRKK900-10	2240	177	600	93.8	0.78	1.8	24000
