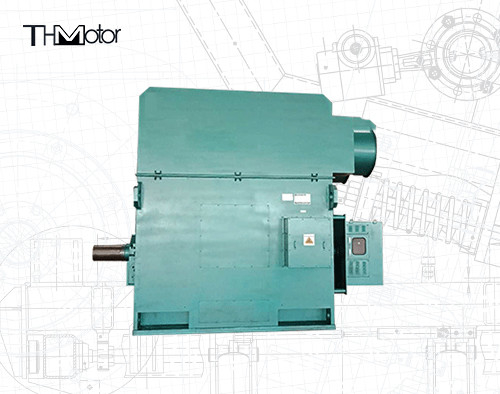

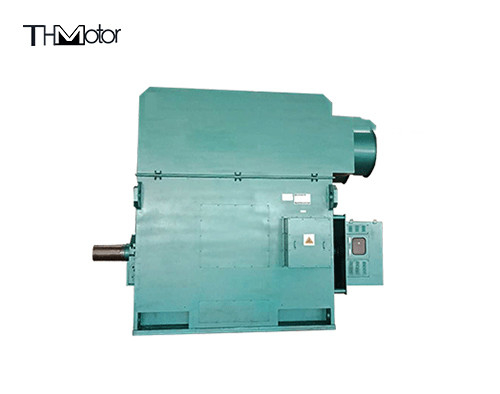

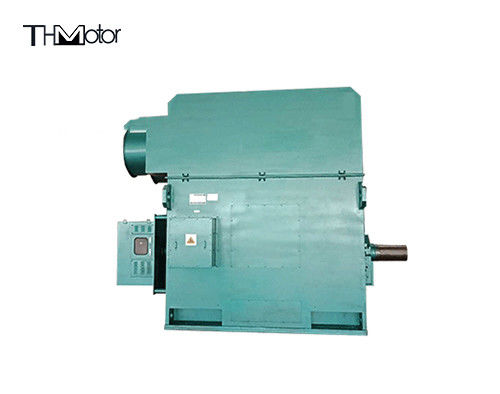

50Hz-60Hz Asynchronous AC Motor For Noise Intolerant Applications

50Hz-60Hz Asynchronous AC Motor For Noise Intolerant Applications

  • 50Hz-60Hz Asynchronous AC Motor For Noise Intolerant Applications
  • 50Hz-60Hz Asynchronous AC Motor For Noise Intolerant Applications
  • 50Hz-60Hz Asynchronous AC Motor For Noise Intolerant Applications
50Hz-60Hz Asynchronous AC Motor For Noise Intolerant Applications
Product Details:
Place of Origin: china
Brand Name: THmotor
Model Number: YRKK
Contact Now
Detailed Product Description
Noise Level: ≤75dB Vibration Level: ≤0.5mm/s
Rated Power: 0.18-315kW Efficiency: IE2/IE3
Rated Speed: 1400-3000r/min Humidity: ≤90%RH
Protection Class: IP44/IP54/IP55 Altitude: ≤1000m
High Light:

60Hz Asynchronous AC Motor

,

Noise Intolerant Asynchronous AC Motor

,

IP54 Three Phase Asynchronous Motor

50Hz-60Hz Asynchronous AC Motor Ideal For Noise-Intolerant Applications

Product Description:

Our Three Phase Asynchronous Motor is an efficient and reliable alternating current motor, also known as a three-phase induction motor. It is designed to operate at a rated frequency of 50Hz-60Hz, providing an efficiency of IE2/IE3. The noise level produced by this motor is low, with a maximum of 75dB. It can also operate in a wide range of ambient temperatures, from -15℃ to 40℃. This motor is ideal for a variety of industrial and commercial applications, providing outstanding performance and reliability.



Features:

  • Product Name: Three Phase Asynchronous Motor
  • Protection Class: IP44/IP54/IP55
  • Mounting Type: IMB3/IMB5/IMV1
  • Rated Speed: 1400-3000r/min
  • Rated Voltage: 220V-380V
  • Humidity: ≤90%RH
  • Type: Three-Phase Induction Motor, Three-Phase AC Motor


Technical Parameters:

Parameter Value
Rated Voltage 220V-380V
Efficiency IE2/IE3
Vibration Level ≤0.5mm/s
Humidity ≤90%RH
Motor Type Three Phase Asynchronous Motor
Noise Level ≤75dB
Altitude ≤1000m
Insulation Class F/H
Cooling Method IC411
Ambient Temperature -15℃~40℃


Applications:

THmotor YRKK Series Three Phase Asynchronous AC Motor

THmotor YRKK series three phase asynchronous AC motors are highly efficient, low-noise and low-vibration industrial motors, which feature high reliability, long service life, and high starting torque. With their highly efficient performance, they are ideal for a wide range of applications. They are manufactured with advanced insulation materials, and are able to withstand high temperature and high humidity environments.

The YRKK series three phase asynchronous AC motors come with a wide range of power ratings from 0.18kW to 315kW, and a speed range of 1400 to 3000r/min. They have insulation class of F/H, and cooling class of IC411. They can achieve a high efficiency of IE2/IE3 due to their advanced design and structure.

The YRKK series three phase asynchronous AC motors are perfect for a wide range of industries such as construction, mining, agriculture, manufacturing, and many more. With their superior performance and reliability, they are a perfect fit for the most demanding applications. They are also a great choice for high-power and high-speed applications.



Customization:

THmotor YRKK Three-Phase Induction Motor

  • Brand Name: THmotor
  • Model Number: YRKK
  • Place of Origin: China
  • Cooling Method: IC411
  • Noise Level: ≤75dB
  • Mounting Type: IMB3/IMB5/IMV1
  • Vibration Level: ≤0.5mm/s
  • Ambient Temperature: -15℃~40℃

THmotor YRKK Three-Phase Induction Motor is a reliable, durable, and efficient three-phase AC motor. With its IC411 cooling method, it works quietly with noise level ≤75dB and low vibration of ≤0.5mm/s. Also, its wide ambient temperature range from -15℃ to 40℃ allows it to be used in many different environments. It comes with three mounting types, including IMB3, IMB5, and IMV1.



Each series of motors:

50Hz-60Hz Asynchronous AC Motor For Noise Intolerant Applications 0

Our aftersales service:

50Hz-60Hz Asynchronous AC Motor For Noise Intolerant Applications 1

Packing and Shipping:

Three Phase Asynchronous Motor Packaging and Shipping:

  • The motor will be packed in a wooden box.
  • The box will be reinforced with metal straps.
  • The box will be labeled with the motor's name, model and specifications.
  • The box will be shipped via an insured courier.

50Hz-60Hz Asynchronous AC Motor For Noise Intolerant Applications 2
