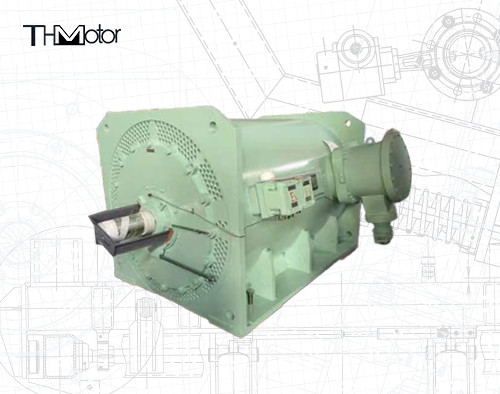

Explosion Protection Class II 2G Exd IIB T3 Gb Fire Resistant Motor 1250KW And More

Explosion Protection Class II 2G Exd IIB T3 Gb Fire Resistant Motor 1250KW And More

  • Explosion Protection Class II 2G Exd IIB T3 Gb Fire Resistant Motor 1250KW And More
  • Explosion Protection Class II 2G Exd IIB T3 Gb Fire Resistant Motor 1250KW And More
  • Explosion Protection Class II 2G Exd IIB T3 Gb Fire Resistant Motor 1250KW And More
  • Explosion Protection Class II 2G Exd IIB T3 Gb Fire Resistant Motor 1250KW And More
  • Explosion Protection Class II 2G Exd IIB T3 Gb Fire Resistant Motor 1250KW And More
Explosion Protection Class II 2G Exd IIB T3 Gb Fire Resistant Motor 1250KW And More
Product Details:
Place of Origin: China
Brand Name: THMOTOR
Model Number: YBXKK560-2 1250kw
Contact Now
Detailed Product Description
Power: 1250KW Rotation Speed: 2982 Rpm
Efficiency: At Least 96.2% Number Of Poles: 2
Explosion Protection Class: II 2G Exd IIB T3 Gb Rated Torque: At Least – 4002 Nm
Degree Of Protection: IP55 Voltage: 10 KV,rated Current – 85.2A
Insulation Class: F/F
highlight:

Fire Resistant Motor 1250KW

,

II 2G Exd IIB T3 Gb Motor

,

IP55 Fire Resistant Motor

Product Description:

Flameproof Electric Motor

This flameproof electric motor is designed for applications in potentially explosive atmospheres, providing corrosion-resistant and fire-resistant performance. The motor has a rated torque of at least 4002 Nm and an efficiency of at least 96.2%. It has 2 poles and an explosion protection class of II 2G Exd IIB T3 Gb, as well as an insulation class of F/F. It is designed for a range of applications in areas where a high level of fire-resistance and reliable performance is required.



Features:

  • Product Name: Flameproof Electric Motor
  • Explosion protection class: II 2G Exd IIB T3 Gb
  • Insulation class: F/F
  • Rated torque: At Least – 4002 Nm
  • Voltage: 10 KV, rated Current – 85.2A
  • Rotation speed: 2982 Rpm
  • Features: Explosion-proof Motor, Flame-resisting Motor, Corrosion-resistant Motor, High Torque Motor


Applications:

Flameproof Electric Motor – THMOTOR YBXKK560-2 1250kw

This flameproof electric motor is designed to operate in environments where heat, flame, and explosions are a hazard. It is manufactured by THMOTOR, a Chinese supplier with a solid reputation for producing high-quality motors.
The YBXKK560-2 1250kw motor has two poles and runs at a rotation speed of 2982 RPM. It operates at a voltage of 10 KV and a rated current of 85.2A, and boasts a high efficiency of at least 96.2%. Additionally, the motor is designed with a high degree of protection (IP55) to protect against heat and flame.
The THMOTOR YBXKK560-2 1250kw motor is a reliable and durable choice for any application requiring a flameproof motor. It is perfect for operations in the oil and gas, mining, and construction industries, as well as any other environment where heat and flames are a danger.

Technical Parameters:

Technical Parameter Description
Power 1250KW
Rotation speed 2982 rpm
type high-voltage asynchronous electric motor
voltage 10 kV,rated current – 85.2A
rated current up to 142A
Rated frequency 50Hz
Efficiency at least 96.2%
degree of protection IP55
Power factor cosφ – 0.89
insulation class F/F
explosion protection class II 2G Exd IIB T3 Gb
rated torque at least – 4002 Nm
Cooling method IC 511

Customization:

THMOTOR is proud to present its Flameproof Electric Motor YBXKK560-2 1250kw, designed to be heatproof and flame-resisting. This motor is made in China and features 10 KV voltage, rated current at 85.2A, and a power of 1250KW. It also offers an efficiency rate of at least 96.2%, a rotation speed of 2982 Rpm and 50Hz rated frequency.
For any application requiring a flame-resisting or heatproof motor, THMOTOR's Flameproof Electric Motor YBXKK560-2 1250kw is the perfect choice. This motor is designed to withstand extreme temperatures and high voltage, making it the ideal solution for any heatproof or flame-resisting motor needs.

Each series of motors:
Explosion Protection Class II 2G Exd IIB T3 Gb Fire Resistant Motor 1250KW And More 0

Support and Services:

Flameproof Electric Motor Technical Support and Service
We offer quality technical support and service for our Flameproof Electric Motor. Our technical support team is available 24/7 to answer any questions about our product. We provide comprehensive training to ensure our customers get the most out of their motors. Our team of experienced professionals will help you troubleshoot any issues you may have, ensuring your motor runs smoothly and efficiently.
We also provide repair and maintenance services for our motors. Our technicians are trained to diagnose and repair any problems that may arise. We use high-quality parts and use the latest technology to ensure your motor is functioning properly. We also offer preventative maintenance services to keep your motor running at optimal levels.
If you need more information about our Flameproof Electric Motor Technical Support and Service, please feel free to contact us. We are always happy to help.

Explosion Protection Class II 2G Exd IIB T3 Gb Fire Resistant Motor 1250KW And More 1

Packing and Shipping:

Packaging and Shipping for Flameproof Electric Motor

The Flameproof Electric Motor is packaged and shipped in accordance with the following procedures:

  • The Flameproof Electric Motor is securely packaged in a box with appropriate cushioning material to ensure safe delivery.
  • The box is labeled with the product name and product code.
  • The box is then placed in an outer box for shipping.
  • The outer box is labeled with the product name, product code, and a warning label about the contents being potentially hazardous.
  • The outer box is sealed and shipped via a reputable courier.

Explosion Protection Class II 2G Exd IIB T3 Gb Fire Resistant Motor 1250KW And More 2

Certifications:

Explosion Protection Class II 2G Exd IIB T3 Gb Fire Resistant Motor 1250KW And More 3
