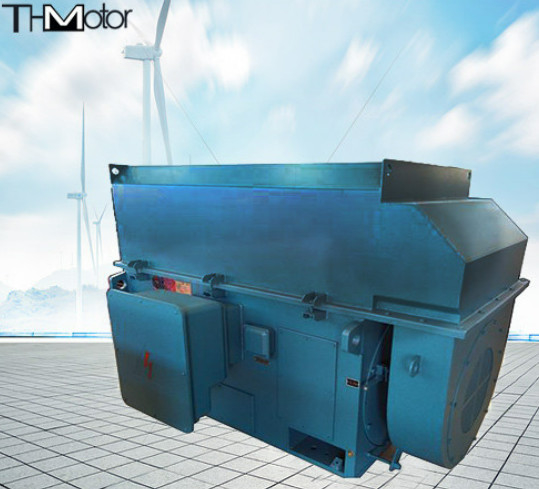

400kw to 6000kw Induction High Voltage AC Motor 11000v 3 Phase IP44 IP54 IP55

400kw to 6000kw Induction High Voltage AC Motor 11000v 3 Phase IP44 IP54 IP55

400kw to 6000kw Induction High Voltage AC Motor 11000v 3 Phase IP44 IP54 IP55
400kw to 6000kw Induction High Voltage AC Motor 11000v 3 Phase IP44 IP54 IP55
400kw to 6000kw Induction High Voltage AC Motor 11000v 3 Phase IP44 IP54 IP55
Product Details:
Place of Origin: China
Brand Name: THMotor
Certification: CE
Model Number: YXKS5601-4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
Contact Now
Detailed Product Description
Product Name: YX Series High Voltage AC Motor Three Phase Ac Induction Motor For Pump Power Range: 400-6000kw
Voltage: 6000v-11000v Speed Range: 500/590/740/990/1500/3000RPM
Frequency: 50hz, 60hz Cooling Method: IC01、IC411、IC611
IP Rate: IP23, IP54, IP55 Poles: 2,4,6,8,12,16
Highlight:

Induction YX High Voltage AC Motor

,

11000v Induction High Voltage AC Motor

,

IP44 Induction High Voltage AC Motor

YX series High Voltage AC Motor three phase ac induction motor for pump



Product overview



YXKK series high-voltage three-phase asynchronous motor (frame size 355-1000) has reasonable structure and advanced technology. It has the advantages of high efficiency, energy saving, low noise, low vibration, reliable operation, convenient installation and maintenance, etc. On the basis of YKK, energy-saving materials are further adopted , Change the electromagnetic design scheme to further improve the motor efficiency, reaching more than 94%.



The power level, installation size and electrical performance of the motor comply with the national standard GB755-2000 "Ratings and performance of rotating electrical machines" and related IEC standards and national industry standard JB/T1031.2-2002. .

The basic installation method of the motor is the horizontal base angle (IMB3), and the working system is the continuous working system (S1).
The motor adopts box structure. The frame is welded with steel plates, light in weight and good in rigidity. The closed air/air cooler is installed on the top of the motor, which is easy to disassemble and facilitate the maintenance and repair of the motor. A slip ring cover can be used to observe the operating viewing window.


The stator adopts an external pressure fit structure, and the stator winding adopts F-class insulating material, and the ends are reliably fixed and bound. During the manufacturing process, it has undergone multiple inter-turn pulse voltage tests and grounding withstand voltage tests, and has adopted foreign advanced vacuum pressure. Immersion Solventless Paint Plant and Process (VPI) treatment. Therefore, the motor has excellent and reliable insulation properties, good mechanical strength, and strong moisture resistance.



Product specifications

Motor frame 500/630/710/800 IP Rate IP54/IP44/IP55
Power range 220kw - 2500KW,3500KW IC(cooling) IC611
Voltage 3KV, 6KV, 10KV Poles 2,4,6,8,10,12
Frequency 50HZ/60HZ Insulation F
Speed 500/590/740/990/1500/3000RPM Efficiency 84-94.5%
Power Factor 0.84-0.85 AT(Ambient Temp) -15-40℃



Each series of motors

400kw to 6000kw Induction High Voltage AC Motor 11000v 3 Phase IP44 IP54 IP55 0



Our aftersales service

400kw to 6000kw Induction High Voltage AC Motor 11000v 3 Phase IP44 IP54 IP55 1



Product packaging

400kw to 6000kw Induction High Voltage AC Motor 11000v 3 Phase IP44 IP54 IP55 2



Certifications

400kw to 6000kw Induction High Voltage AC Motor 11000v 3 Phase IP44 IP54 IP55 3
