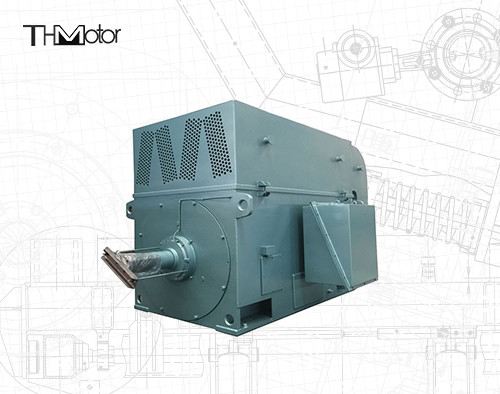

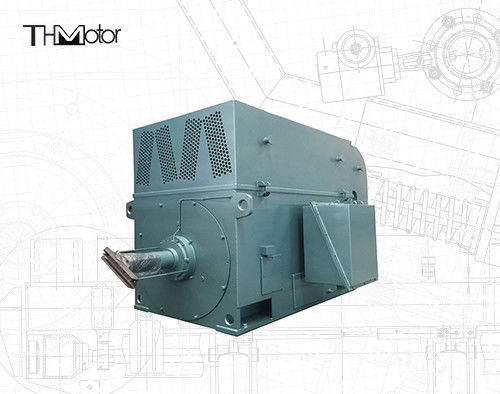

Squirrel Cage High Speed Electric Motors High Voltage Electric Motors 6KV 10KV IP23 IP54 IP55

Squirrel Cage High Speed Electric Motors High Voltage Electric Motors 6KV 10KV IP23 IP54 IP55

  • Squirrel Cage High Speed Electric Motors  High Voltage Electric Motors 6KV 10KV  IP23 IP54 IP55
Squirrel Cage High Speed Electric Motors  High Voltage Electric Motors 6KV 10KV  IP23 IP54 IP55
Product Details:
Place of Origin: China
Brand Name: THMotor
Certification: CE
Model Number: Y800-4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
Contact Now
Detailed Product Description
Product Name: Yk3200 Yk Large Squirrel Cage High-Speed High Voltage Electric Motors Power Range: 400-6000kw
Voltage: 6000v-11000v Speed Range: 100rpm-3600rpm
Frequency: 50hz,60hz Cooling Method: IC01、IC411、IC611
IP Rate: IP23, IP54,IP55 Poles: 2,4,6,8,12,16
High Light:

High Speed Electric Motors Squirrel Cage

,

High Speed 6KV Electric Motors

,

IP23 High Voltage Electric Motors

Yk3200 Yk Large Squirrel Cage High-Speed High Voltage Electric Motors



Product overview


YK series large three-phase squirrel-cage high-speed asynchronous motors are suitable for driving water pumps, blowers and other mechanical equipment.


The working environment temperature of this series of motors is less than +40℃, the altitude is less than 1000 meters, and the relative temperature is less than 95%. The insulation grade is F grade, and when used as B grade, the allowable temperature rise of the motor is 80K, and the noise sound pressure measured at a distance of one meter from the motor is less than 90 decibels.


This series of motors has two shaft extension ends, and either end can be used to drive the supporting machinery. The motor bearings are insulated from the floor to prevent shaft currents.


The motor has a firm structure and is suitable for long-term continuous operation. Easy to use and maintain, the machine base adopts steel plate welded box structure, which can be made into the following four structural forms according to different needs:


1. Install the cooler in the foundation pit and connect it with the motor exhaust pipe. The pit is sealed from the surrounding environment, which is called water cooling.


2. Install the cooler on the upper part of the motor and form an independent closed cooling system inside the motor, which is called water cooling.


3. Install coolers on both sides of the motor, and form an independent closed cooling system inside the motor to form side water cooling.


4. Open, the motor can be connected to duct ventilation or natural ventilation.
This series of motors is suitable for driving machinery without special purpose, such as: water pumps, blowers.
Second, the meaning of the model
Take YK1600-2/990 as an example: "Y" means asynchronous motor; "K" means high speed; "1600" means power is 1600KW; "2" means number; "990" means outer diameter of stator core is 990mm.



Product specifications



frame(center high) 500/630/710/800 IP level IP54/IP44/IP55
Rated Power 220kw - 2500KW,3500KW Cooling Method) IC611
Voltage 3KV, 6KV, 10KV Poles 2,4,6,8,10,12
Frequency 50HZ/60HZ Insulation class F
Speed 500/590/740/990/1500/3000RPM Efficiency 84-94.5%
P.F.power factor 0.84-0.85 AT(Ambient Temp) -15-40℃

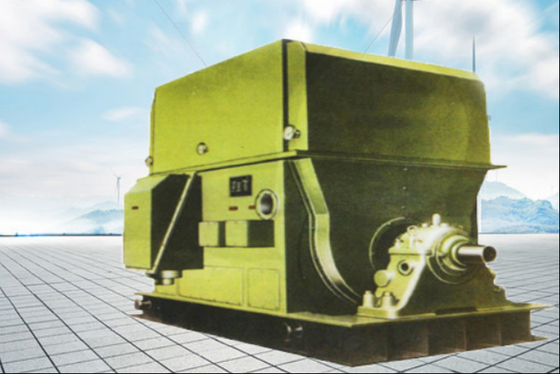

Each series of motors

Squirrel Cage High Speed Electric Motors  High Voltage Electric Motors 6KV 10KV  IP23 IP54 IP55 0



Our aftersales service

Squirrel Cage High Speed Electric Motors  High Voltage Electric Motors 6KV 10KV  IP23 IP54 IP55 1



Product packaging

Squirrel Cage High Speed Electric Motors  High Voltage Electric Motors 6KV 10KV  IP23 IP54 IP55 2



Certifications

Squirrel Cage High Speed Electric Motors  High Voltage Electric Motors 6KV 10KV  IP23 IP54 IP55 3
