Our motor, save your energy, drive your success!
 |
| Place of Origin: | China |
| Brand Name: | THMotor |
| Certification: | CE |
| Model Number: | YSP5001-4 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD 20000-100000 |
| Packaging Details: | Seaworthy packing |
| Delivery Time: | 70DAYS |
| Supply Ability: | 100SET/YEAR |
| Product Name: | YSP Three Phase Asynchronous Motor 1000kw Variable Frequency(VFD) For Mining | Power Range: | 400-6000kw |
|---|---|---|---|
| Voltage: | 6000v-11000v | Speed Range: | 100rpm-3600rpm |
| Frequency: | 50hz,60hz | Cooling Method: | IC01、IC411、IC611 |
| IP Rate: | IP23, IP54,IP55 | Poles: | 2,4,6,8,12,16 |
| High Light: | YSP Mining VFD Motor,Three Phase Asynchronous Motor 1000kw,Mining Three Phase Asynchronous Motor |
||

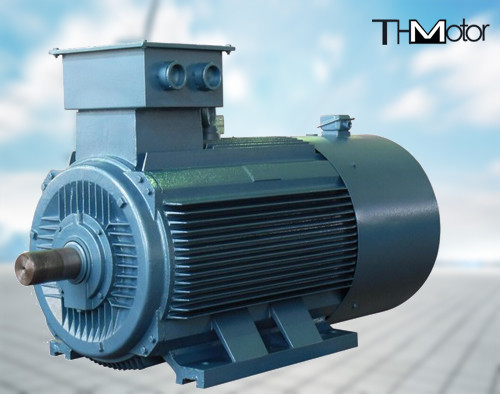

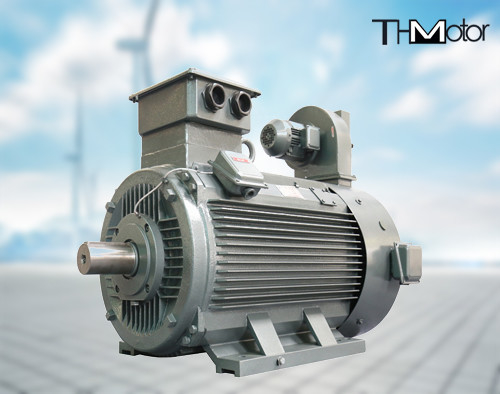

YSP Three Phase Asynchronous Motor 1000kw Variable Frequency(VFD) For Mining
Product overview
YSP series variable frequency speed regulation three-phase asynchronous motor is a variable frequency speed regulation three-phase asynchronous motor with inverter as the power supply. By changing the frequency of the power supply, the speed of the motor can be smoothly adjusted to achieve the purpose of energy saving and control automation.
Continuous rating based on continuous duty (S1), and its voltages are: 6kV, 10kV, rated frequency 50Hz, continuous speed regulation within the range of 30-50Hz for fans and water pumps, cooling methods include IC01, IC81W, IC611, etc.; other loads can be continuous within the range of 5~50. The motor is equipped with an independent strong air cooling system, and the cooling method is 1C06 , IC86W, IC666, etc.
This series of motors can be used to drive various general machinery such as compressors, ventilators, water pumps, cutting machine tools, transportation machinery and other machinery as prime movers in various industrial and mining enterprises such as mining, machinery, petrochemical industries, and power plants.
Product specifications
| frame size | 355/500/630/710/800/1000 | IP rage | IP54/IP44/IP55 |
| Rated Power | 160kw - 2500KW,3500KW | Cooling Method IC | IC611 |
| Rated Voltage | 3KV, 6KV, 10KV | Poles | 2,4,6,8,10,12 |
| Frequency | 50HZ/60HZ | Insulation class | F;H |
| Speed range | 500/590/740/990/1500/3000RPM | MOTOR Efficiency | 84-94.5% |
| P.F. | 0.84-0.85 | AT | -15-40℃ |
| Installation | IMB3,IMB5,IMB35 | Standard | IEC, GB |
Each series of motors
Our aftersales service
Product packaging
Certifications
