Flameproof Motors ExdI Mb YB3 Petroleum Industry Motors

Product Details:

Place of Origin:	China
Brand Name:	THMotor
Certification:	CE
Model Number:	T 7000

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD 20000-100000
Packaging Details:	Seaworthy packing
Delivery Time:	70DAYS
Supply Ability:	100SET/YEAR

Contact Now

Detailed Product Description

Product Name:	YB3 Flameproof Electric Motor For Petroleum, Chemical Industry	Power Range:	1000-12000kw
Voltage:	3kv-11kv	Speed Range:	1000rpm-1500rpm
Poles:	4,6	Frequency:	50hz,60hz
Cooling Method:	IC37,IC81W	IP Rate:	IP44,IP54,IP55
Highlight:	YB3 flameproof motors , flameproof motors ExdI Mb , YB3 Petroleum Industry motors

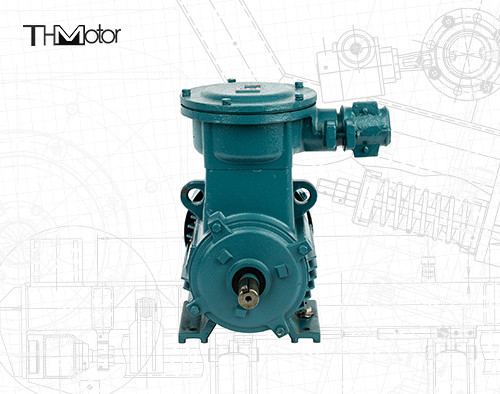

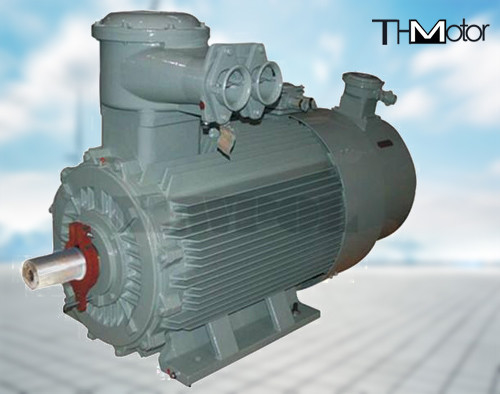

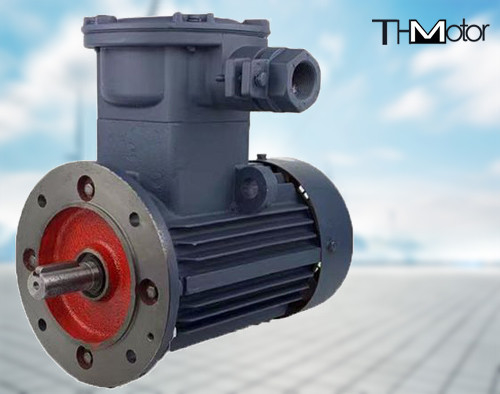

YB3 Flameproof Electric Motor For Petroleum, Chemical Industry

Product overview

YB3 series high voltage flameproof three-phase asynchronous motor (H355～H630)
Frame No.: H355～H560
Power range: 315kW～2800kW
Number of poles: 2～12. Special requirements can be implemented by agreement.
Flameproof grade: ExdI Mb, ExdIIAT4 Gb, ExdIIBT4 Gb, ExdIICT4 Gb, etc.
Rated voltage: 3000V, 6000V, 10000V, etc.
Technical features: compact structure, small size, light weight and high efficiency. The efficiency exceeds the level 2 energy efficiency requirements in GB 30254.
Application fields: Drag fans, compressors, water pumps and other loads, widely used in petroleum, chemical, steel, coal and other industries.

Each series of motors

Our aftersales service

Product packaging

Certifications
