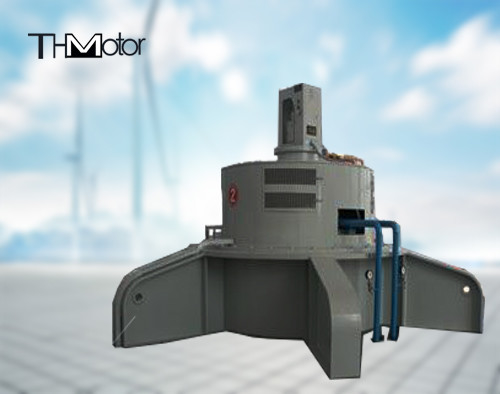

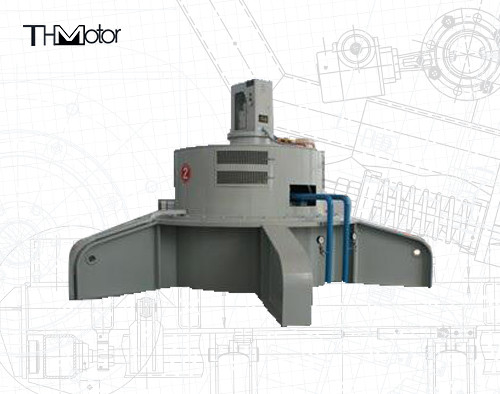

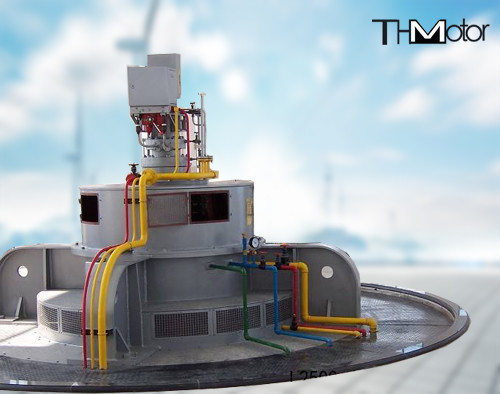

5000kw Permanent Magnet High Torque Direct Drive Motor PMSM
Product Details:
Place of Origin: China
Brand Name: THMotor
Certification: CE
Model Number: TLFB900-50
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
Contact Now
Detailed Product Description
Power Range: 400-15000kw Voltage: 3kv-11kv
Speed Range: 100, 125, 150, 167, 187.5, 200, 250, 300r/min Poles: 60, 48, 40, 36, 32, 30, 24, 20
Frequency: 50hz,60hz Cooling Method: IC01,IC37,IC81W
IP Rate: IP00, IP20, IP21, IP23, IP44, IP54, IP55 Standard: IEC,GB
Highlight:

5000kw high torque direct drive motor

,

5000kw permanent magnet direct drive motor

,

high torque direct drive motor PMSM

TLFB Vertical Dust Explosion-Proof Direct Drive Variable Frequency PMSM



Product overview



This series is a low-speed and high-torque permanent magnet direct drive motor specially developed for vertical mills. Its magnetic field is generated by rare earth permanent magnet functional materials. Therefore, the relationship between its efficiency, power factor and load rate is significantly higher than that of asynchronous motors. Advantage. The birth of this product can directly transform the original vertical mill system.
After the transformation, the original asynchronous motor + reducer drive system is replaced by a low-speed high-torque permanent magnet direct-drive vertical grinding motor, and the permanent-magnet direct-drive motor can directly output low speed and high torque.


Compared with the characteristics between the efficiency of the permanent magnet motor and the asynchronous motor, the power factor and the load rate, it has obvious advantages, cancels the intermediate link of the mechanical equipment, and improves the efficiency of the transmission chain.


The permanent magnet motor is directly connected to the mechanical load, which eliminates the deceleration transmission link between the motor and the mechanical load in the low-speed and high-torque transmission system, and greatly simplifies the transmission chain of the mechanical equipment.


Low noise, no pollution, maintenance-free. The reduction mechanism is eliminated, saving daily maintenance costs, lubrication costs and delayed work time​



Product specifications



POWER RANGE: 400-15000kw VOLTAGE: 3kv-11kv
SPEED RANGE: 100, 125, 150, 167, 187.5, 200, 250, 300r/min POLES: 60, 48, 40, 36, 32, 30, 24, 20
FREQUENCY: 50hz,60hz COOLING METHOD: IC01,IC37,IC81W
IP RATE: IP00, IP20, IP21, IP23, IP44, IP54, IP55 STANDARD: IEC,GB
MODEL KW V A N.M RPM %
TLFB560-50 560 6000 58 148556 36 96
TLFB630-50 630 6000 66 167125 36 96
TLFB710-50 710 6000 74 188347 36 96
TLFB800-50 800 6000 84 212222 36 96
TLFB900-50 900 6000 94 238750 36 96
TLFBS00-50 500 10000 31 132639 36 >96
TLFB560-50 560 10000 35 148556 36 >96
TLFB630-50 630 10000 39 167125 36 >96
TLFB710-50 710 10000 44 188347 36 96
TLFB800-50 800 10000 50 212222 36 96
TLFB900-50 900 10000 56 238750 36 96

5000kw Permanent Magnet High Torque Direct Drive Motor PMSM 0



Each series of motors

5000kw Permanent Magnet High Torque Direct Drive Motor PMSM 1



Our aftersales service

5000kw Permanent Magnet High Torque Direct Drive Motor PMSM 2



Product packaging

5000kw Permanent Magnet High Torque Direct Drive Motor PMSM 3



Certifications

5000kw Permanent Magnet High Torque Direct Drive Motor PMSM 4
