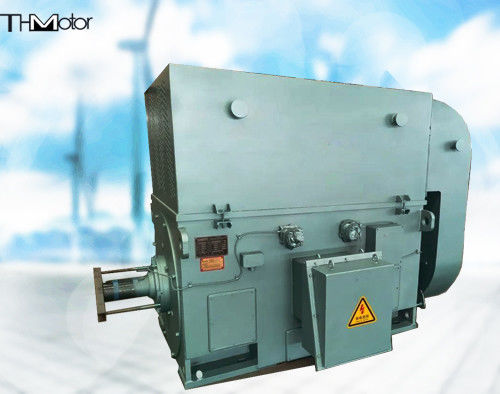

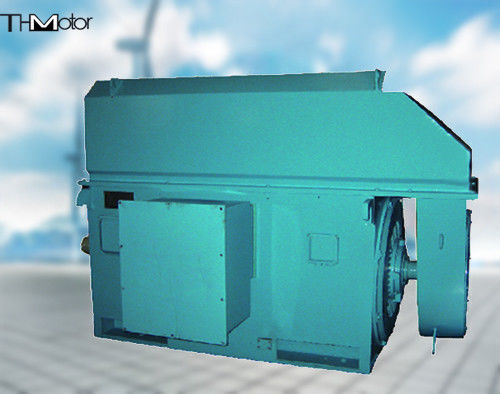

IP44 High-Voltage Permanent Magnet Synchronous Motor 400-15000kw 3kv-11kv 100-300r/min

IP44 High-Voltage Permanent Magnet Synchronous Motor 400-15000kw 3kv-11kv 100-300r/min

IP44 High-Voltage Permanent Magnet Synchronous Motor 400-15000kw 3kv-11kv 100-300r/min
IP44 High-Voltage Permanent Magnet Synchronous Motor 400-15000kw 3kv-11kv 100-300r/min
IP44 High-Voltage Permanent Magnet Synchronous Motor 400-15000kw 3kv-11kv 100-300r/min
Product Details:
Place of Origin: China
Brand Name: THMotor
Certification: CE
Model Number: TDMK400
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
Contact Now
Detailed Product Description
Power Range: 400-15000kw Voltage: 3kv-11kv
Speed Range: 100, 125, 150, 167, 187.5, 200, 250, 300r/min Poles: 60, 48, 40, 36, 32, 30, 24, 20
Frequency: 50hz,60hz Cooling Method: IC01,IC37,IC81W
IP Rate: IP00, IP20, IP21, IP23, IP44, IP54, IP55 Standard: IEC,GB
Highlight:

IP44 Permanent Magnet Synchronous Motor

,

TYKK Permanent Magnet Synchronous Motor

,

TYCKK Permanent Magnet Synchronous Motor

TYKK TYCKK IP44 High-Efficiency High-Voltage Permanent Magnet Synchronous Motor
Product Overview
  • Developed according to JB/T 12681-2016 TYCKK series technical specifications for high-efficiency high-voltage permanent magnet synchronous motors
  • Utilizes high-performance "Magnetic King" rare earth permanent magnet materials to establish air gap magnetic field for efficient power conversion
  • Power factor above 0.96 with efficiency 2%-8% higher than Y series motors, maintaining high performance across 25%-120% load range
  • Features "indiscriminate replacement" design compatible with Y series motor voltage levels and installation dimensions
  • Self-starting capability with synchronous operation and no slip at rated voltage and frequency
Key Advantages: Significant current reduction, 30K+ temperature rise reduction, extended operational life, improved heavy-load starting performance, and reduced distribution network requirements.
Technical Specifications
Power Range 400-15000kW Voltage 3kV-11kV
Speed Range 100-300r/min Poles 20-60
Frequency 50Hz, 60Hz Cooling Method IC01, IC37, IC81W
Motor Series
IP44 High-Voltage Permanent Magnet Synchronous Motor 400-15000kw 3kv-11kv 100-300r/min 0
After-Sales Service
IP44 High-Voltage Permanent Magnet Synchronous Motor 400-15000kw 3kv-11kv 100-300r/min 1
Product Packaging
IP44 High-Voltage Permanent Magnet Synchronous Motor 400-15000kw 3kv-11kv 100-300r/min 2
Certifications
IP44 High-Voltage Permanent Magnet Synchronous Motor 400-15000kw 3kv-11kv 100-300r/min 3

Tag:

IEC GB Permanent Magnet Synchronous Motor,

15000kw Permanent Magnet Synchronous Motor,

Vertical Mill Motor 20 poles
