Place of Origin: | China |
Brand Name: | THMotor |
Certification: | CE |
Model Number: | TDMK400 |
Minimum Order Quantity: | 1set |
---|---|
Price: | USD 20000-100000 |
Packaging Details: | Seaworthy packing |
Delivery Time: | 70DAYS |
Supply Ability: | 100SET/YEAR |
Power Range: | 400-15000kw | Voltage: | 3kv-11kv |
---|---|---|---|
Speed Range: | 100, 125, 150, 167, 187.5, 200, 250, 300r/min | Poles: | 60, 48, 40, 36, 32, 30, 24, 20 |
Frequency: | 50hz,60hz | Cooling Method: | IC01,IC37,IC81W |
IP Rate: | IP00, IP20, IP21, IP23, IP44, IP54, IP55 | Standard: | IEC,GB |
Highlight: | 200r/min Permanent Magnet Synchronous Motor,200r/min Vertical Mill Motor,Vertical Mill Motor 20 poles |

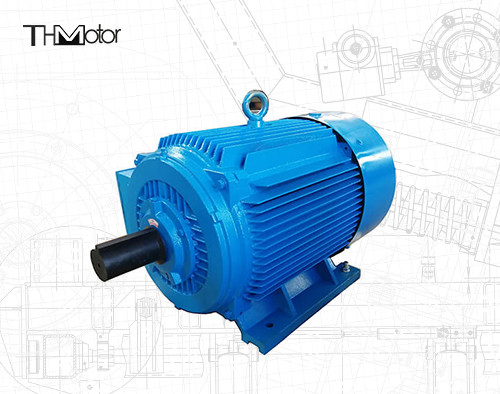

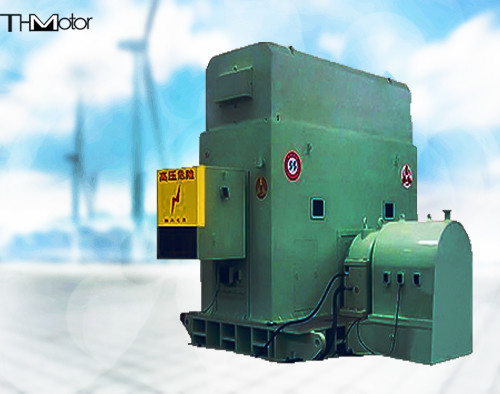

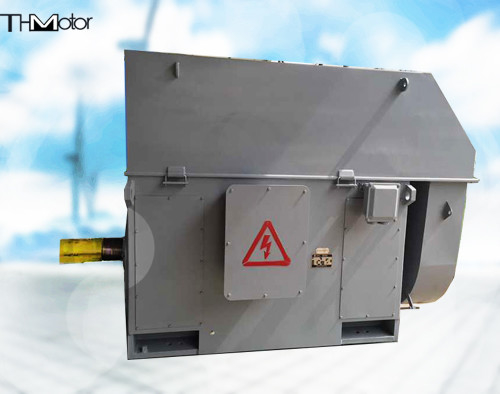

TLFB Permanent Magnet Synchronous Motor Vertical Mill
Product overview
TLFB series permanent magnet direct drive variable frequency motor for vertical mill is specially developed and manufactured by our company for vertical mill equipment. This series of low speed and high torque permanent magnet direct drive motor, its magnetic field is generated by rare earth permanent magnet functional material, so its efficiency, power factor and The relationship of load ratio has obvious advantages compared with asynchronous motors. The birth of this product can directly transform the original vertical mill system. After the transformation, the original asynchronous motor + reducer drive system is replaced by a low-speed high-torque permanent magnet direct drive motor, and a permanent magnet direct drive motor is used to directly output low speed and high torque.
Product specifications
POWER RANGE: | 400-15000kw | VOLTAGE: | 3kv-11kv |
---|---|---|---|
SPEED RANGE: | 100, 125, 150, 167, 187.5, 200, 250, 300r/min | POLES: | 60, 48, 40, 36, 32, 30, 24, 20 |
FREQUENCY: | 50hz,60hz | COOLING METHOD: | IC01,IC37,IC81W |
IP RATE: | IP00, IP20, IP21, IP23, IP44, IP54, IP55 | STANDARD: | IEC,GB |
Product advantages:
(1) The permanent magnet motor has high efficiency and power factor, and saves energy. Compared with the characteristics between the efficiency of the permanent magnet motor and the asynchronous motor, the power factor and the load rate, it has obvious advantages, cancels the intermediate link of the mechanical equipment, and improves the efficiency of the transmission chain.
(2) De-gearing, changing the transmission mode of the original mechanical equipment. The permanent magnet motor is directly connected to the mechanical load, which eliminates the deceleration transmission link between the motor and the mechanical load in the low-speed and high-torque transmission system, and greatly simplifies the transmission chain of the mechanical equipment.
(3) Low noise, no pollution and maintenance-free. The deceleration mechanism is cancelled, saving daily maintenance costs, lubrication costs and delayed work time.
Each series of motors
Our aftersales service
Product packaging
Certifications
