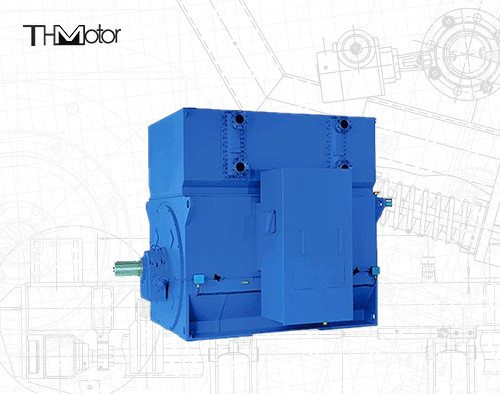

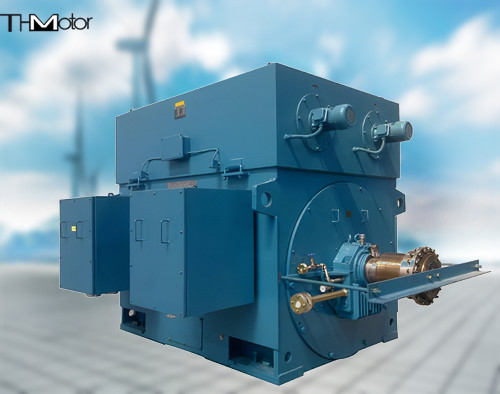

2200kw High Torque Wound Rotor Inductyion Motor IC37 IC81W

2200kw High Torque Wound Rotor Inductyion Motor IC37 IC81W

2200kw High Torque Wound Rotor Inductyion Motor IC37 IC81W
2200kw High Torque Wound Rotor Inductyion Motor IC37 IC81W
2200kw High Torque Wound Rotor Inductyion Motor IC37 IC81W
Product Details:
Place of Origin: China
Brand Name: THMotor
Certification: CE
Model Number: T 7000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
Contact Now
Detailed Product Description
Product Name: 2200kw Wound Rotor Induction Motor High Torque Induction Motor Power Range: 1000-12000kw
Voltage: 3kv-11kv Speed Range: 1000rpm-1500rpm
Poles: 4,6 Frequency: 50hz,60hz
Cooling Method: IC37,IC81W IP Rate: IP44,IP54,IP55
Highlight:

2200kw Wound Rotor Inductyion Motor

,

2200kw High Torque Induction Motor

,

High Torque Induction Motor IC37 IC81W

YRKK 2200kw Wound Rotor Induction Motor High Torque Induction Motor



Product overview



YRKK series (H355~1120) 6KV, 10KV high-voltage three-phase asynchronous motors are wound rotor asynchronous motors. The protection level of this series of motors is IP44 or IP54, and the cooling method is IC611, IC616, IC666 (see GB/T1993).
This series of motors has the advantages of high efficiency, energy saving, low noise, low vibration, light weight, reliable performance, convenient installation and maintenance, etc.


This series of motors can provide increased starting torque under a small starting current, and can adjust the speed within a certain range. It is suitable for: the capacity of the feeder circuit is not enough to start the squirrel-cage rotor motor; the starting time is long and the starting time is too long. More frequent; occasions where a small range of speed regulation is required. Such as: drag winch, rolling mill, wire drawing machine, etc.


This series of motors adopts F-class insulation structure. The bearing structure is designed according to IP54 and IP64. H355~630 adopts grease lubrication, and H710~1000 adopts sliding bearing forced thin oil lubrication.


The structure and installation type of this series of motors are IMB3, the rating is based on continuous duty (S1), the rated frequency of the motor is 50Hz, and the rated voltage is 6KV and 10KV. Agreed with the user.
Second, the meaning of YRKK high voltage motor model
Example: YRKK 3552-4
"YRKK" means enclosed wound rotor asynchronous motor with air-to-air cooler
"3552" indicates that the center height of the base is 355mm, and the No. 2 iron core is long; "4" indicates the number of poles
3. Ordering instructions for YRKK high-voltage motors
(Users must specify the following requirements when ordering)
Motor model (YRKK3552-4)
Installation method (IMB3)
Rated power (185kW)
Protection class (IP44 or IP54)
Rated voltage (6000V)
Cooling method (IC611)
Rated frequency (50Hz)
Insulation class (class F)
Synchronous speed (1500r/min)
Environmental conditions (altitude 1000m, ambient temperature 40°C)
The power level, installation size and electrical performance of YRKK series motors comply with the industry standard JB/T7594 "Technical Conditions for YR Series High Voltage Wound Rotor Three-phase Asynchronous Motors" and other relevant standards, and its installation size and power level also comply with IEC72-2 standards Require.
The cooling methods of YRKK series motors are IC01, IC81W and IC611 according to the standards of GB1993 and IEC34-6 "Motor Cooling Methods"; the installation method of this series of motors is horizontal foot installation (!MB3) structure, in line with GB997 and IEC34 -7 Regulations of "Motor Structure and Installation Type Code". If the user has other requirements, it can be negotiated separately.



Product specifications



PRODUCT NAME: 2200kw Wound Rotor Induction Motor High Torque Induction Motor POWER RANGE: 1000-12000kw
VOLTAGE: 3kv-11kv SPEED RANGE: 1000rpm-1500rpm
POLES: 4,6 FREQUENCY: 50hz,60hz
COOLING METHOD: IC37,IC81W IP RATE: IP44,IP54,IP55



Each series of motors

2200kw High Torque Wound Rotor Inductyion Motor IC37 IC81W 0



Our aftersales service

2200kw High Torque Wound Rotor Inductyion Motor IC37 IC81W 1



Product packaging

2200kw High Torque Wound Rotor Inductyion Motor IC37 IC81W 2





Certifications



2200kw High Torque Wound Rotor Inductyion Motor IC37 IC81W 3
