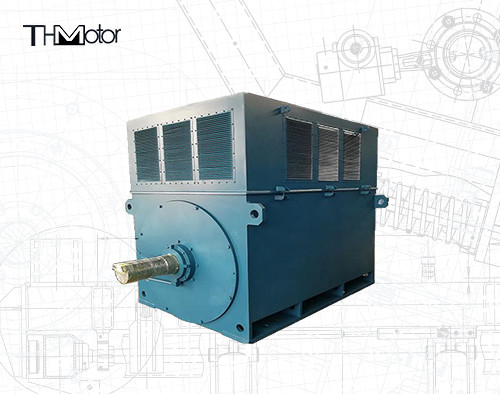

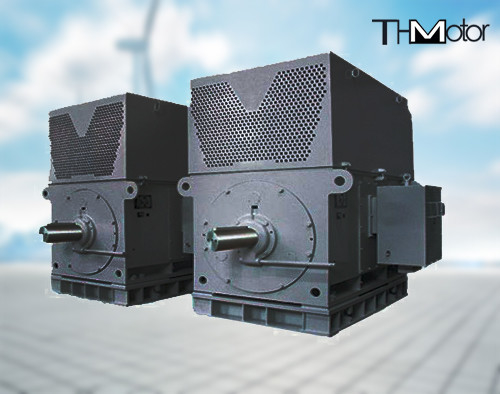

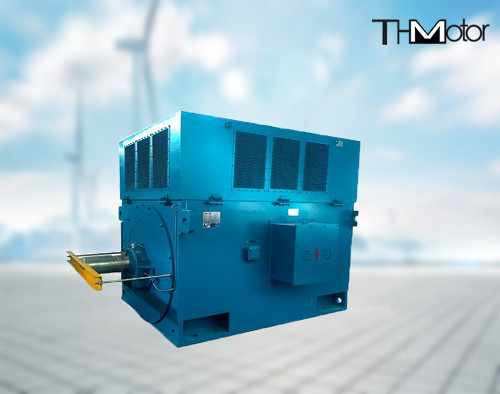

YPKK 900kw Three Phase Asynchronous Electric Motor High Voltage 8p10p 12p

YPKK 900kw Three Phase Asynchronous Electric Motor High Voltage 8p10p 12p

  • YPKK 900kw Three Phase Asynchronous Electric Motor High Voltage 8p10p 12p
  • YPKK 900kw Three Phase Asynchronous Electric Motor High Voltage 8p10p 12p
  • YPKK 900kw Three Phase Asynchronous Electric Motor High Voltage 8p10p 12p
YPKK 900kw Three Phase Asynchronous Electric Motor High Voltage 8p10p 12p
Product Details:
Place of Origin: China
Brand Name: THMotor
Certification: CE
Model Number: Y800-4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
Contact Now
Detailed Product Description
Product Name: YPRKS560-6 900kw Large Size Variable Frequency High-Voltage Asynchronous Motors Power Range: 400-6000kw
Voltage: 6000v-11000v Speed Range: 100rpm-3600rpm
Frequency: 50hz,60hz Cooling Method: IC01、IC411、IC611
IP Rate: IP23, IP54,IP55 Poles: 2,4,6,8,12,16
Highlight:

YPKK 900kw asynchronous electric motor

,

asynchronous electric motor 12p

,

YPKK 900kw motor high voltage

YPKK 900kw Large Size Variable Frequency High-Voltage Asynchronous Motors



Product overview



YPKK series motor is a new type of speed-regulating motor independently researched and developed according to the needs of domestic and foreign markets, with variable frequency speed-regulating device as the power supply. The installation dimension also conforms to the national standard GB755 and the IEC standard of the International Electrotechnical Commission. This series of motors can be continuously adjusted in speed within the range of 5-67Hz, that is, constant torque operation within 5-50Hz, and constant power operation within 50-67Hz.


YPKK is a series derived from the YP series. This series of motors generally have the advantages of high efficiency and energy saving, low noise, small vibration, wide speed regulation range, high precision and reliable quality, convenient installation, use and maintenance.


This series of motors can drive various general machinery such as compressors, ventilators, water pumps, cutting machine tools, transportation machinery and other machinery, and are widely used in power plants, water plants, petrochemicals, mining and other industrial and mining enterprises as prime movers.



Product specifications



frame(center high) 355/500/630/710/800/1000 IP  IP54/IP44/IP55
Rated Power 100kw - 10000KW Cooling Method IC611
Voltage 380-11000v Poles 2,4,6,8,10,12
Frequency 50HZ/60HZ Insulation class F;H
Speed 500/590/740/990/1500/3000RPM Efficiency 84-94.5%
P.F. 0.84-0.85 AT -15-40℃
Standards

IEC, DNV, GB





Each series of motors

YPKK 900kw Three Phase Asynchronous Electric Motor High Voltage 8p10p 12p 0



Our aftersales service

YPKK 900kw Three Phase Asynchronous Electric Motor High Voltage 8p10p 12p 1



Product packaging

YPKK 900kw Three Phase Asynchronous Electric Motor High Voltage 8p10p 12p 2



Certifications

YPKK 900kw Three Phase Asynchronous Electric Motor High Voltage 8p10p 12p 3
