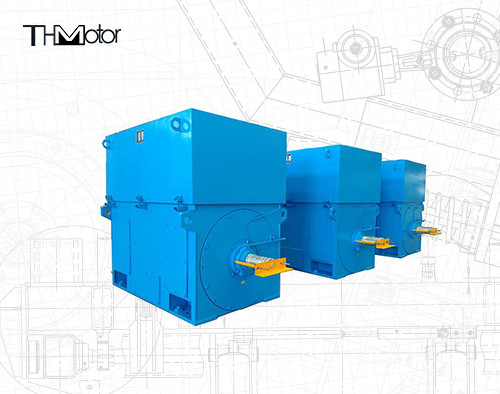

YPRKS 10kV 6kv High Voltage Asynchronous Motor 3 Phase

YPRKS 10kV 6kv High Voltage Asynchronous Motor 3 Phase

  • YPRKS 10kV 6kv High Voltage Asynchronous Motor 3 Phase
  • YPRKS 10kV 6kv High Voltage Asynchronous Motor 3 Phase
  • YPRKS 10kV 6kv High Voltage Asynchronous Motor 3 Phase
YPRKS 10kV 6kv High Voltage Asynchronous Motor 3 Phase
Product Details:
Place of Origin: China
Brand Name: THMotor
Certification: CE
Model Number: Y800-4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
Contact Now
Detailed Product Description
Product Name: Three Phase Asynchronous Motor Variable Frequency High Voltage Asynchronous Motors Power Range: 400-6000kw
Voltage: 6000v-11000v Speed Range: 100rpm-3600rpm
Frequency: 50hz,60hz Cooling Method: IC01、IC411、IC611
IP Rate: IP23, IP54,IP55 Poles: 2,4,6,8,12,16
highlight:

10kV asynchronous motor 3 phase

,

6kv asynchronous motor 3 phase

,

6kv High Voltage Asynchronous Motor

YPRKS​ Three Phase Asynchronous Motor Variable Frequency High-Voltage Asynchronous Motors



Product overview



YPRKS series variable frequency speed regulation three-phase asynchronous motor and frequency conversion device constitute the speed regulation system. Compared with other speed regulation methods, the energy saving effect is remarkable, the speed regulation performance is good, the speed regulation range is wide, the noise is low, the vibration is small, and the The matching characteristics of various frequency converters at home and abroad can be widely used in light industry, textile, chemical industry, metallurgy, machine tool and other industries for constant torque, constant power speed regulation and energy-saving speed regulation of fans and pumps, which is helpful for Realize the automatic control of the speed control system.


YPKK, YPKS, YPRKK, YPRKS series (3.3KV, 6KV, 10KV) variable frequency high-voltage three-phase asynchronous motors (frame size 355-900) are our company's long-term stable production of high-voltage motors based on the introduction of foreign high-voltage motor manufacturing technology. A series of products optimized for the design and manufacturing experience of three-phase asynchronous motors.


YR YRKK YPR, YPRKK, YPRKS series (6KV, 10KV) rotor winding type high voltage asynchronous motors have reasonable structure. It has the advantages of energy saving, low noise, small vibration, reliable operation, convenient installation and maintenance, etc.


The power level, installation size and electrical performance of the motor all conform to the national standard GB755-2000 "Rating and Performance of Rotating Electric Motors" and relevant IEC standards and national industry standards. The basic installation method of the motor is horizontal with feet (IMB3), and the working system is continuous working system (S1).



Product specifications



Description parameters
power range:  200~2240kW
Rate voltage:  10kV,6kv
center high: 450~630,710,800
Poles: 4, 6p ,8,10,12p

IP rate:

YP series: IP23
YPKK series: IP54, IP55

Cooling:



YP series: IC06
YPKK series: IC666

Frequency range:

constant torque: 5~50Hz
constant power: 50~67Hz
frame(center high) 355/500/630/710/800/1000 IP  IP54/IP44/IP55
Rated Power 100kw - 10000KW Cooling Method IC611
Voltage 380-11000v Poles 2,4,6,8,10,12
Frequency 50HZ/60HZ Insulation class F;H
Speed 500/590/740/990/1500/3000RPM Efficiency 84-94.5%
P.F. 0.84-0.85 AT -15-40℃
IP
IC
IP23,IP44, IP54
IC01,IC611,IC81W
Material cast iron
IM horizontal
Standards

IEC, DNV, GB





 Each series of motors

YPRKS 10kV 6kv High Voltage Asynchronous Motor 3 Phase 0





Our aftersales service

YPRKS 10kV 6kv High Voltage Asynchronous Motor 3 Phase 1



Product packaging

YPRKS 10kV 6kv High Voltage Asynchronous Motor 3 Phase 2



Certifications

YPRKS 10kV 6kv High Voltage Asynchronous Motor 3 Phase 3
