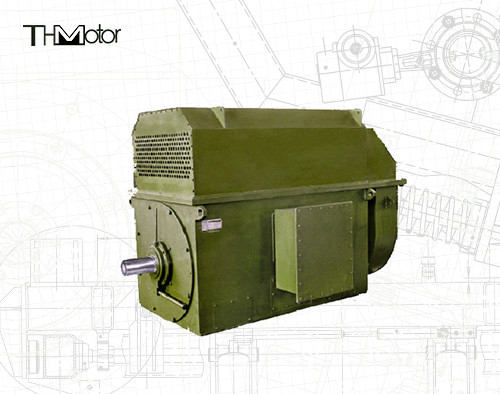

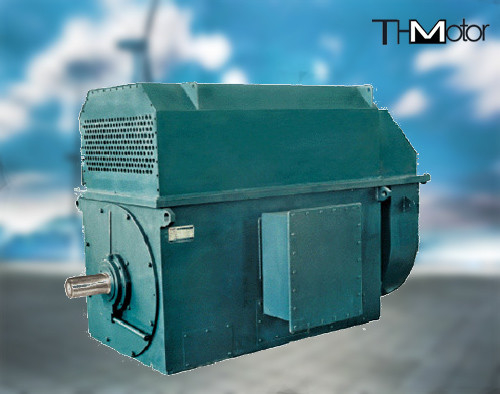

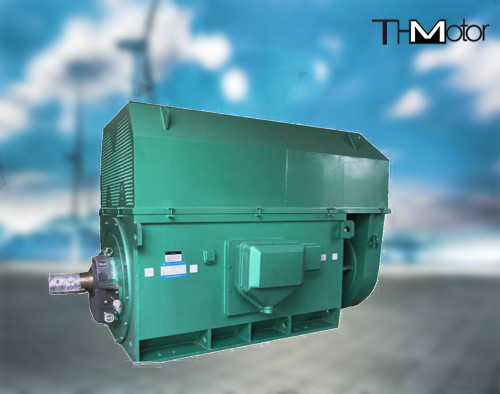

YKS450-2 Three Phase Asynchronous Motor High Voltage Electric Induction Motors 2970rpm

YKS450-2 Three Phase Asynchronous Motor High Voltage Electric Induction Motors 2970rpm

  • YKS450-2 Three Phase Asynchronous Motor High Voltage Electric Induction Motors 2970rpm
  • YKS450-2 Three Phase Asynchronous Motor High Voltage Electric Induction Motors 2970rpm
  • YKS450-2 Three Phase Asynchronous Motor High Voltage Electric Induction Motors 2970rpm
YKS450-2 Three Phase Asynchronous Motor High Voltage Electric Induction Motors 2970rpm
Product Details:
Place of Origin: China
Brand Name: THMotor
Certification: CE
Model Number: Y800-4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
Contact Now
Detailed Product Description
Product Name: Yks450-2 500kw 2970rpm 6kv High Voltage Electric Motors Electric Induction Motors Power Range: 400-6000kw
Voltage: 6000v-11000v Speed Range: 100rpm-3600rpm
Frequency: 50hz,60hz Cooling Method: IC01、IC411、IC611
IP Rate: IP23, IP54,IP55 Poles: 2,4,6,8,12,16
High Light:

YKS450-2 Electric Induction Motors

,

Electric Induction Motors 2970rpm

,

High Voltage Electric Motors 2970rpm

Yks450-2 500kw 2970rpm 6kv High Voltage Electric Motors Electric Induction Motors



Product overview



YKS series high-voltage three-phase asynchronous motor is the latest product developed and designed by our company through the introduction of foreign advanced design and manufacturing technology, combined with our company's long-term experience in motor production, and in accordance with relevant national and industry standards. The power level, electrical performance and installation dimensions of this series of motors conform to the national standard GB755 and the International Electrotechnical Commission IEC60034-1, etc.


YKS is a derivative of the Y series. YKS series motors generally have the advantages of high efficiency and energy saving, low noise, low vibration, reliable quality, convenient installation and maintenance.



Scope of application of YKS high voltage three-phase asynchronous motor
YKS series motors can drive various general machinery such as compressors, fans, water pumps, cutting machine tools, transportation machinery and other machinery, so they are widely used in power plants, water plants, petrochemicals, metallurgy, mining and other industrial and mining enterprises.



YKS series motors adopt the internationally popular box-type structure with high process performance. After removing the protective cover (or cooler), you can observe and access the inside of the motor, which is convenient for the installation and maintenance of the motor. The junction box has a compact structure and a high degree of protection. While connecting reliable terminals, the wiring method is flexible and can be connected in multiple directions.


The rotor of the motor is generally made of cast aluminum rotor, and the rotor cage bar, end ring and fan blade are formed at one time, which improves the operation reliability; the stator adopts the external pressure-fitting structure, and the F-class insulating material and anti-corona material and vacuum impregnation process make the motor have excellent reliability. Insulation performance and moisture resistance, impact resistance.


The motor bearings use rolling bearings (the 2-pole motors of H500 and above use sliding bearings), and the protection level is high. The motors with rolling bearing structures have non-stop refueling and oil draining devices, which improves the operation efficiency of the motor. The user can also select the motor bearing according to the motor power and speed.



Product specifications



frame(center high) 355/500/630/710/800/1000 IP  IP54/IP44/IP55
Rated Power 160kw - 2500KW,3500KW Cooling Method IC611
Voltage 3KV, 6KV, 10KV Poles 2,4,6,8,10,12
Frequency 50HZ/60HZ Insulation class F;H
Speed 500/590/740/990/1500/3000RPM Efficiency 84-94.5%
P.F. 0.84-0.85 AT -15-40℃
Installation IMB3,IMB5,IMB35 Standard IEC, GB



Each series of motors

YKS450-2 Three Phase Asynchronous Motor High Voltage Electric Induction Motors 2970rpm 0



Our aftersales service

YKS450-2 Three Phase Asynchronous Motor High Voltage Electric Induction Motors 2970rpm 1



Product packaging

YKS450-2 Three Phase Asynchronous Motor High Voltage Electric Induction Motors 2970rpm 2



Certifications

YKS450-2 Three Phase Asynchronous Motor High Voltage Electric Induction Motors 2970rpm 3
