|Yxks710 1600KW 10KV 50HZ Induction AC Motor High Voltage Electric Motors
10KV 50HZ Induction AC Motor,
3600rpm Induction AC Motor,
10KV 50HZ High Voltage Electric Motors

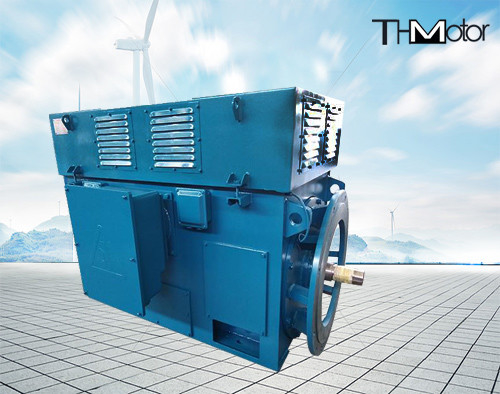

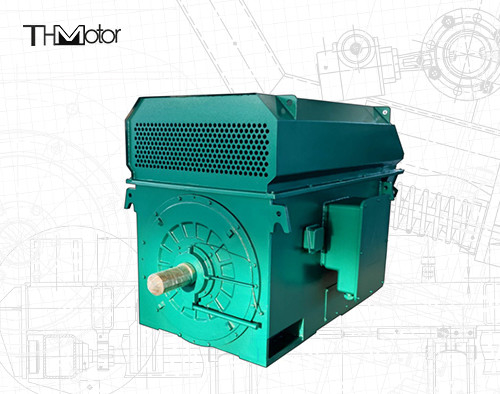

YXKS710 1600KW 10KV 50HZ Induction AC Motor High Voltage Electric Motors
YX, YXKK, YXKS series high-efficiency high-voltage three-phase asynchronous motors are optimized series of products developed on the basis of the introduction of foreign advanced technology and combined with the company's high-voltage motor design and manufacturing experience. It has compact structure, light weight, high efficiency and low noise. , high reliability, long service life, easy installation and maintenance and so on. It can be interchanged with corresponding Y, YKK, YKS series three-phase asynchronous motors. The efficiency of this series of motors meets the energy efficiency standards of high-efficiency motors recommended by the National Development and Reform Commission.
The motor frame size is 355~900mm, the power is 185~10000kW, the rated voltage is 3kV, 6kV and 10kV, the rated frequency is 50Hz, the protection class is IP23, IP54, IP55, the installation method is B3, V1, the cooling method is IC01, IC611, IC616, IC81W, Working system S1. The motor adopts steel plate welded box structure, which is beautiful in appearance and convenient for installation and maintenance; the stator winding is treated with F-class insulation vacuum pressure immersion solvent-free paint (VPI), which has excellent and reliable insulation performance, high mechanical strength and reliable operation.
