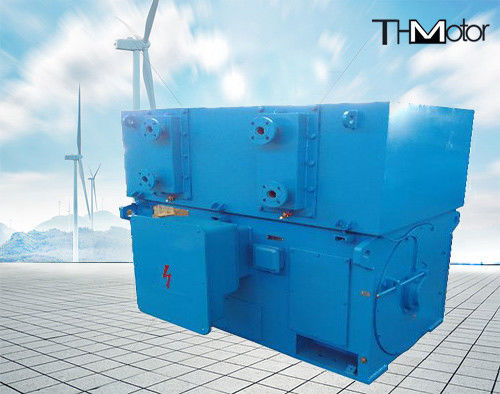

YX 6KV 10KV 11000v 3600rpm High Voltage AC Motor Crusher 3 Phase Induction Machine

YX 6KV 10KV 11000v 3600rpm High Voltage AC Motor Crusher 3 Phase Induction Machine

  • YX 6KV 10KV 11000v 3600rpm High Voltage AC Motor Crusher 3 Phase Induction Machine
  • YX 6KV 10KV 11000v 3600rpm High Voltage AC Motor Crusher 3 Phase Induction Machine
  • YX 6KV 10KV 11000v 3600rpm High Voltage AC Motor Crusher 3 Phase Induction Machine
YX 6KV 10KV 11000v 3600rpm High Voltage AC Motor Crusher 3 Phase Induction Machine
Product Details:
Place of Origin: China
Brand Name: THMotor
Certification: CE
Model Number: YXKS7101-4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
Contact Now
Detailed Product Description
Product Name: Yx Series 10kv 6kv High Voltage Ac Motor Induction Motor For Crusher Voltage: 6000v-11000v
Speed Range: 100rpm-3600rpm Frequency: 50hz,60hz
IC(cooling): IC611 IP Rate: IP23, IP54,IP55
Poles: 2,4,6,8,12,16
High Light:

YX 6KV 10KV High Voltage AC Motor

,

YX 6KV 10KV 3 phase induction machine

,

Crusher 3 phase induction machine

Yx Series 10kv 6kv High Voltage Ac Motor Induction Motor For Crusher



Product overview



YX, YXKK, YXKS series high-efficiency high-voltage three-phase asynchronous motors are optimized series products developed on the basis of absorbing foreign advanced technology and combining our company's high-voltage motor design and manufacturing experience. They have compact structure, light weight, high efficiency and low noise. , high reliability, long service life, easy installation and maintenance and so on. It can be interchanged with corresponding Y, YKK, YKS series three-phase asynchronous motors. The efficiency of this series of motors meets the energy efficiency standards of high-efficiency motors recommended by the National Development and Reform Commission.



The motor frame size is 355~900mm, the power is 185~10000kW, the rated voltage is 3kV, 6kV and 10kV, the rated frequency is 50Hz, the protection class is IP23, IP54, IP55, the installation method is B3, V1, the cooling method is IC01, IC611, IC616, IC81W, Working system S1. The motor adopts steel plate welded box structure, which is beautiful in appearance and convenient for installation and maintenance; the stator winding is treated with F-class insulation vacuum pressure immersion solvent-free paint (VPI), which has excellent and reliable insulation performance, high mechanical strength and reliable operation.



Product specifications



Motor frame 500/630/710/800 IP Rate IP54/IP44/IP55
Power range 220kw - 2500KW,3500KW IC(cooling) IC611
Voltage 3KV, 6KV, 10KV Poles 2,4,6,8,10,12
Speed 500/590/740/990/1500/3000RPM Efficiency 84-94.5%
Power Factor 0.84-0.85 AT(Ambient Temp) -15-40℃



Each series of motors

YX 6KV 10KV 11000v 3600rpm High Voltage AC Motor Crusher 3 Phase Induction Machine 0



Our aftersales service

YX 6KV 10KV 11000v 3600rpm High Voltage AC Motor Crusher 3 Phase Induction Machine 1



Product packaging

YX 6KV 10KV 11000v 3600rpm High Voltage AC Motor Crusher 3 Phase Induction Machine 2



Certifications

YX 6KV 10KV 11000v 3600rpm High Voltage AC Motor Crusher 3 Phase Induction Machine 3
