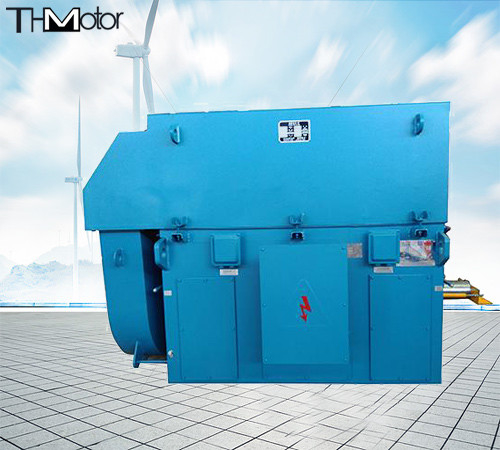

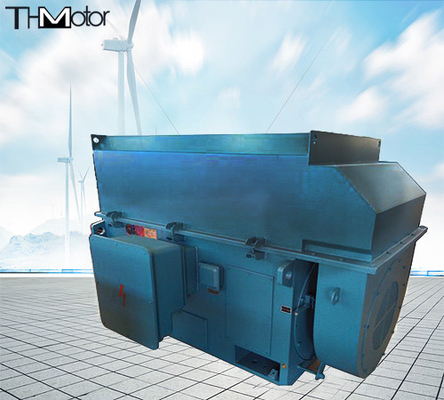

11000v 400kw to 6000kw 3 Phase Induction High Voltage AC Motor IP44 IP54 IP55

YX series High Voltage AC Motor three phase ac induction motor for pump

Product overview

YXKK series high-voltage three-phase asynchronous motor (frame size 355-1000) has reasonable structure and advanced technology. It has the advantages of high efficiency, energy saving, low noise, low vibration, reliable operation, convenient installation and maintenance, etc. On the basis of YKK, energy-saving materials are further adopted , Change the electromagnetic design scheme to further improve the motor efficiency, reaching more than 94%.

The power level, installation size and electrical performance of the motor are in line with the national standard GB755-2000 <Rating and performance of rotating electrical machines> and related IEC standards and national industry standards JB/T10314.2-2002..

The basic installation method of the motor is horizontal with bottom angle (IMB3), and the working system is continuous working system (S1).
The motor adopts box-type structure. The frame is welded with steel plate, which is light in weight and good in rigidity. The closed air/air cooler is installed on the top of the motor, which is convenient for disassembly and assembly, which is conducive to the maintenance and repair of the motor. The slip ring cover is available for observation Observation window for operation.

The stator adopts an external press-fit structure, the stator winding adopts F-class insulating material, and the ends are reliably fixed and bound. During the manufacturing process, it has undergone several inter-turn pulse voltage tests and ground withstand voltage tests, and adopts foreign advanced vacuum pressure. Immersion solvent-free paint equipment and process (VPI) treatment. Therefore, the motor has excellent and reliable insulation performance, good mechanical strength, and strong moisture resistance.

Product specifications
